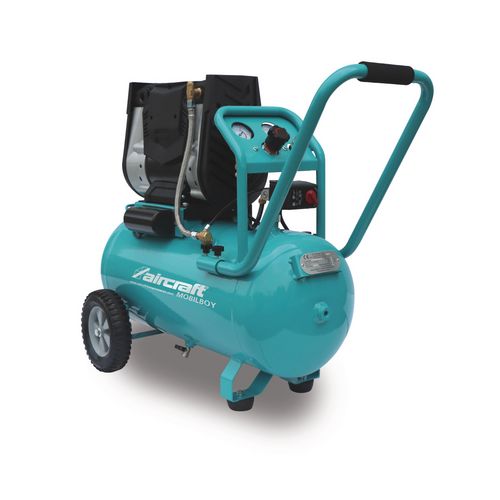

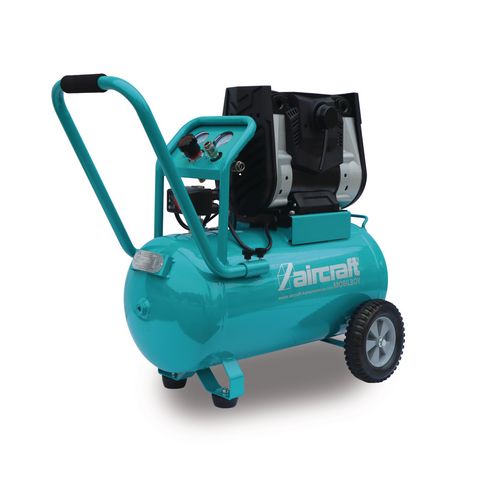

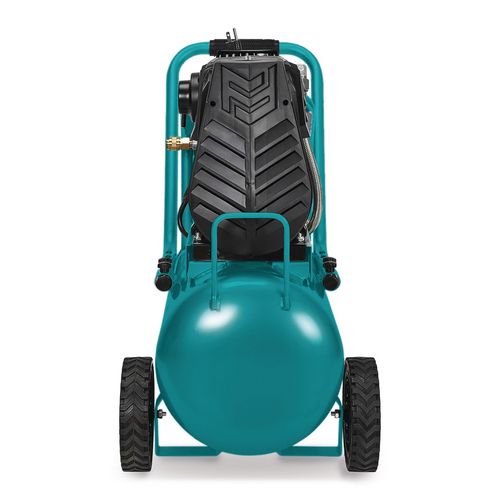

Piston compressor
MOBILBOY SILENCE 231/50 OF E
Oil-free, very quiet compressor for mobile use
415,00
EUR excl. Tax / pc(s).
493,85 EUR incl. 19% Tax / pc(s).
493,85 EUR incl. 19% Tax / pc(s).
Promotional price *
359,00 EUR excl. Tax / pc(s).427,21 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 2002326
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Very smooth operation and therefore very quiet
- Oil-free piston compressor: No oil change necessary and no oil in the condensate for best working quality
- Compressed air reducer for stepless adjustment of the desired working pressure
- High-quality CONDOR pressure switch
- Electric motor equipped with motor protection switch
- Fully automatic on/off operation
- One pressure gauge each for displaying the tank pressure and working pressure
- Pressure gauge and pressure regulator on a sturdy, user-friendly operating console
- Powder-coated compressed air tank
- Oil-free compressor, no oil change and no oil in condensate
- Very smooth and quiet
- One pressure gauge for displaying the container and working pressure
| Compressed air tank | |
|---|---|
| Maximum pressure | 10 bar |
| Pressure vessel capacity | 50 l |
| Tank surface | Powder-coated |
| Compressor | |
|---|---|
| Compressor system | WDS |
| Oil-free / oil-lubricated | Oil-free |
| Suction capacity approx. | 230 l/min |
| Filling capacity approx. | 130 l/min |
| Explanation filling capacity | at 6 bar working pressure |
| Number of cylinders | 2 |
| Number of compressor stages | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 735 mm |
| Width/depth approx. | 320 mm |
| Height approx. | 665 mm |
| Weight approx. | 44 kg |
| Electrical Data | |
|---|---|
| Delivery power | 1,3 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Whisper quiet | Yes |
| Sound power level Lw | 80 dB(A) |
| Explanation sound power level Lw | Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG) |
| Sound pressure level Lp | 69 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Pressure regulation | Pressure regulator |
| Automatic pressure switch | CONDOR |
| Drive transmission | Direct-coupled |
| Connection cable | 2.8 m |
| Connector | CEE 7/4 |
| Compressed air outlet | Two one-hand quick couplings |
| Condensate drain | Ball valve |
| Pressure vessel | Powder-coated |
| Compressor base | Two wheels with solid rubber tyres, two rubber buffers |
