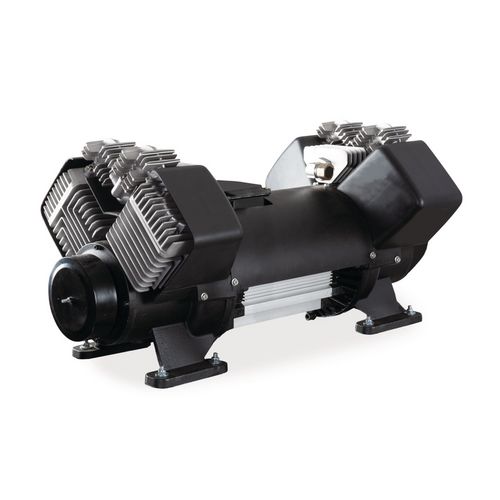

    Productimage for SIN 980 OF 400V
    Brandimage to Product SIN 980 OF 400V

    Piston compressor

    SIN 980 OF 400V

    Smooth running, oil-free coaxial V-unit

    1.790,00 EUR excl. Tax / pc(s).
    2.130,10 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 2501570

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Compressor design with movable piston on the connecting rod forr high efficiency and long service life
    • very smooth running and extremely quiet
    • long service life due to low speed
    • Maximum mechanical efficiency
    • No transmission elements
    • Air flows directly through the cylinder for effective cooling
    • Highly efficient cooling air fan
    • front and additional cooling for maximum durability
    • reed valves for optimum efficiency
    • anti-corrosive surface treatment



    • Air flows directly through the cylinder and provides effective cooling
    • Very smooth running and extremely quiet
    • Low speed and thus long service life
    • Compressor design with movable piston on connecting rod for high efficiency and long service life



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    TypeThree-phases oil-free
    Maximum pressure10 bar
    Number of cylinders4
    Number of compressor stages2
    Suction capacity approx.980 l/min
    Speed1400 min¯¹
    Drive transmissionDirect-coupled
    VPE1
    Compressed air tank
    Maximum pressure10 bar
    Compressor
    Suction capacity approx.440 l/min
    Filling capacity approx.267 l/min
    Explanation filling capacityat 6 bar working pressure
    Number of cylinders4
    Number of compressor stages1
    Dimensions and weights
    Length approx.800 mm
    Width/depth approx.480 mm
    Height approx.440 mm
    Weight approx.95 kg
    Electrical Data
    Delivery power1.7 kW
    Absorbed power5 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Noise emission
    Sound pressure level Lp70 dB(A)
    Sound pressure level Lp70 dB(A)
    Unit: pc(s).
    Packaging unit: 1







    Aftercooler✔
    High-quality connecting rod bearings✔
    Cylinder made of aluminium✔, with special surface treatment
    Overload protection✔
    Start-up relief valve✔
    Drive transmissionDirect-coupled
    Connection cable1,8 m
