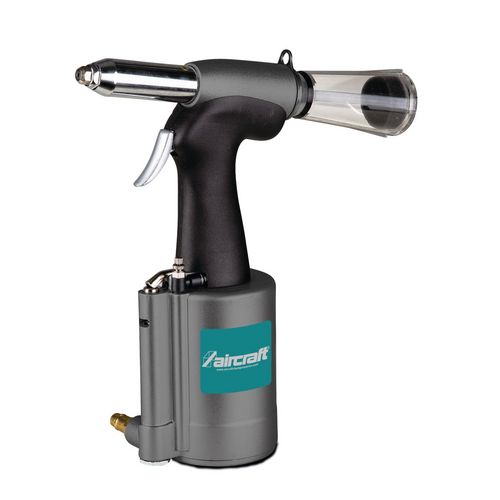

    Riveting tool set

    NGS 2in1

    Handy device with vacuum function, for rivet diameter of 2.4 - 4.8 mm

    365,00 EUR excl. Tax / pc(s).
    434,35 EUR incl. 19% Tax / pc(s).
    Promotional price *
    289,00 EUR excl. Tax / pc(s).
    343,91 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2024 in Germany.

    Art.-No. 2404710

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • For the processing of blind rivets in the automotive sector, ventilation and facade construction, control cabinet construction, etc.
    • Different rivet holders allow the processing of all commercially available rivet sizes
    • Two in one: Standard and vacuum operation possible
    • Vacuum operation: Simple positioning of the rivet while keeping it under vacuum
    • Clean and fast working: Rivet pins are sucked in the collecting container in both operating modes
    • Reduced compressed air consumption due to double use of compressed air when setting the rivet and sucking off the rivet pin
    • Scope of delivery contains practical plastic case with extensive accessories



    • Standard and vacuum operation possible
    • Vacuum operation: Simple positioning of the rivet while it is held under vacuum
    • Clean and fast working: rivet pins are sucked in the collecting container in both operating modes



    Air requirement average, approx.0.88 l/stroke
    Working pressure6 bar
    Min. rivet diameter2.4 mm
    Max. rivet diameter4.8 mm
    VPE1
    Dimensions and weights
    Length approx.260 mm
    Width/depth approx.79 mm
    Height approx.273 mm
    Weight approx.1.47 kg
    Unit: pc(s).
    Packaging unit: 1

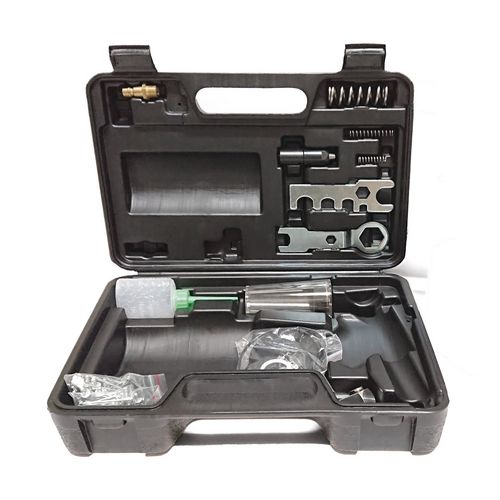

    • 1 nosepiece each 2.4 / 3.2 / 4.0 / 4.8 mm
    • 15 each blind rivets 2.4 / 3.2 / 4.0 / 4.8 mm
    • Collecting bin
    • 2 Assembly keys
    • Oil refilling container
    • Brass plug nipple ¼''
    • Universal joint
    • Various small parts
