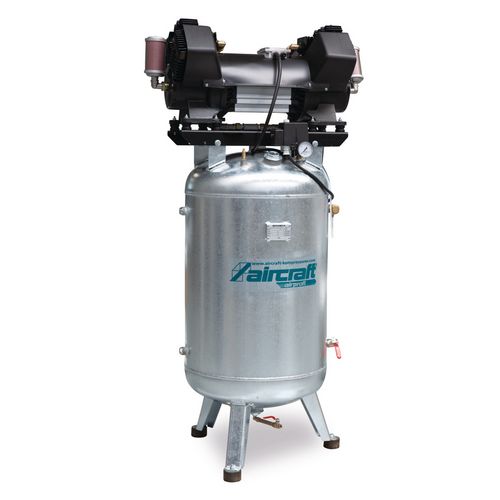

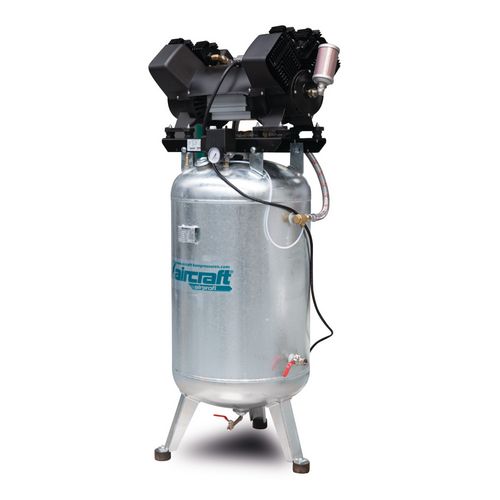

Piston compressor
AIRPROFI 980/270/10 OF V PRO

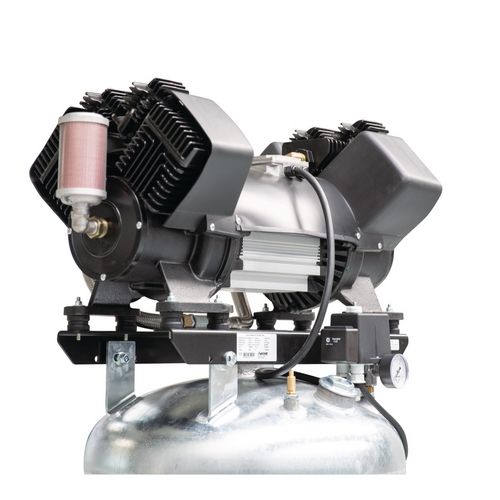

Smooth running, oil-free coaxial V-unit
3.225,00
EUR excl. Tax / pc(s).
3.837,75 EUR incl. 19% Tax / pc(s).
3.837,75 EUR incl. 19% Tax / pc(s).
Promotional price *
2.999,00 EUR excl. Tax / pc(s).3.568,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 2025428
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Quiet-running, oil-free coaxial V-unit
- Compressor design with movable piston on connecting rod for high efficiency and long service life
- Very smooth running and extremely quiet
- Long service life due to low speed
- Air flows directly through the cylinder for effective cooling
- Highly efficient cooling air fan
- Front and auxiliary cooling for maximum durability
- Quality electric motor with high starting torque
- Electric motor equipped with motor protection switch
- Fifteen-year warranty against rust-through on inside and outside hot-dip galvanized air reservoir
- Tank according to AD 2000
- With high quality CONDOR pressure switch
- Flexible armored hose with heat protection prevents vibration breakage
- Ready for connection with all fittings
| Compressed air tank | |
|---|---|
| Maximum pressure | 10 bar |
| Pressure vessel capacity | 270 l |
| Tank vertical / horizontal | Standing |
| Tank surface | Galvanised |
| Compressor | |
|---|---|
| Compressor system | HOS |
| Oil-free / oil-lubricated | Oil-free |
| Suction capacity approx. | 980 l/min |
| Number of cylinders | 4 |
| Number of compressor stages | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 800 mm |
| Width/depth approx. | 610 mm |
| Height approx. | 1725 mm |
| Weight approx. | 248 kg |
| Electrical Data | |
|---|---|
| Drive motor | Electric motor |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Whisper quiet | No |
| Sound pressure level Lp | 70 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Automatic pressure switch | CONDOR |
| Drive transmission | Direct-coupled |
| Material compressed air line | Flexible armored conduit with heat protection |
| Compressed air outlet | Ball valve |
| Pressure vessel | Hot-dip galvanized inside and out with a fifteen-year guarantee against rust |
| AD 2000 compliant | Yes |
| Compressor base | Oscillating elements |
| Operating hours counter | ✔ |
