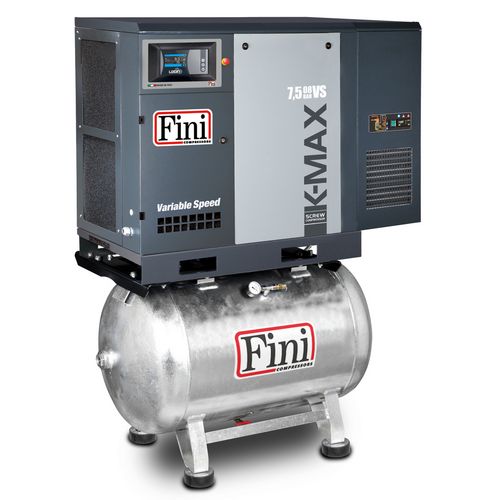

    Screw compressor

    K-MAX 7,5-08-270 ES VS (IE3)

    Compact screw compressor with variable speed control and innovative LOGIN control system

    12.465,00 EUR excl. Tax / pc(s).
    14.833,35 EUR incl. 19% Tax / pc(s).
    Promotional price *
    9.489,00 EUR excl. Tax / pc(s).
    11.291,91 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 2965562.2

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

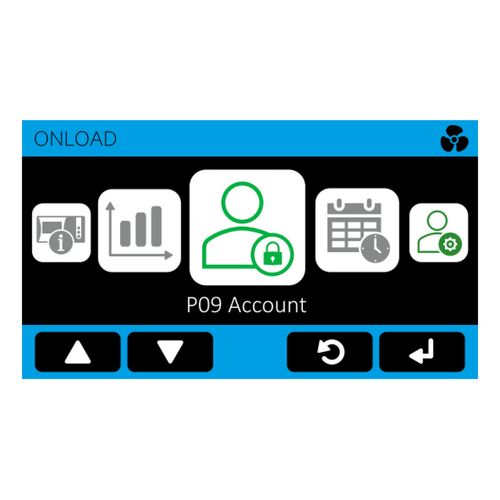

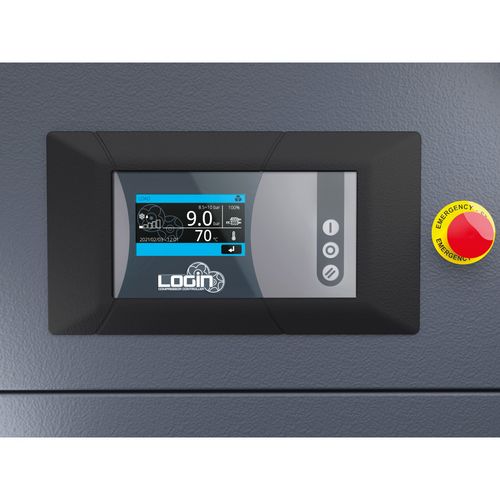

    • Innovative LOGIN control with 4.3" touch screen for easy operation and complete control over all functions
    • Connection of up to eight compressors possible, no matter if with constant or variable speed
    • All information on current operating status at a glance
    • Rotation direction control for the motor, prevents damage during start-up or after a change of location
    • Low noise emission (only max. 67 dB) during operation, due to extremely low speed of the screw compressor and use of a low-noise radial fan
    • Optimum operating temperature and low fluctuation of oil temperature due to thermostatically controlled centrifugal fan, optimum cooling air flow and generously dimensioned heat exchangers
    • Aftercooler reduces the effort for drying and filtration of the generated compressed air
    • Service-friendly: easy removal and installation of all components requiring maintenance

    Energy saving through frequency control

    • Ideal for frequently changing compressed air consumption
    • Compressor delivery rate adjusts to actual consumption
    • Electronic control monitors motor and compressor speed and keeps line pressure constant even when consumption fluctuates widely



    Data sheets
    Data sheet measurement
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Effective delivery quantity of up to approx.600 1300 l/min
    Maximum Pressure8 bar
    Air outlet1/2 "
    Oil-free / oil-lubricatedOil lubricated
    Mobile / StationaryStationary
    VPE1
    Compressed air tank
    Pressure vessel capacity270 l
    Dimensions and weights
    Length approx.1200 mm
    Width/depth approx.680 mm
    Height approx.1540 mm
    Weight approx.290 kg
    Electrical Data
    Motor power (input power) electric motor7,5 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Noise emission
    Sound pressure level Lp63 dB(A)
    Explanation sound pressure level LpSound pressure level at a distance of 1 m according to DIN 45635 T 13
    Unit: pc(s).
    Packaging unit: 1







    Frequency controlled✔
    ControlElectronical
    Oil heat exchanger✔
    Compressor typeFS26
