| Maximum Pressure | 16 bar |
| Air outlet | 1 " |
| Oil-free / oil-lubricated | Oil-lubricated |
| Mobile / Stationary | Stationary |

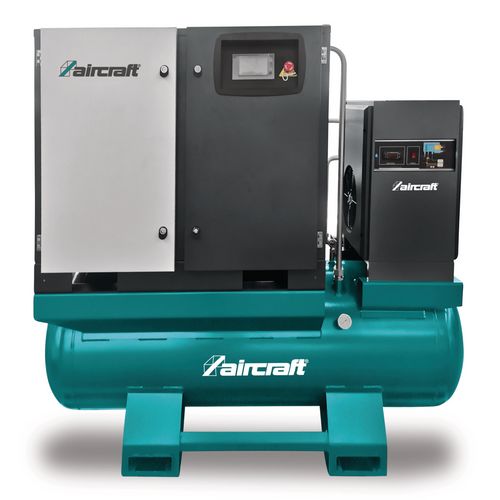

Screw compressor
ASC-D
Energy-efficient screw compressor for laser cutting systems
From 9.690,00
EUR excl. Tax / pc(s).
From 11.531,10
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Electrical Data | Noise emission | Price | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Effective delivery volume approx. (l/min) | VPE | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Motor power (input power) electric motor (kW) | Sound pressure level Lp (dB(A)) | EUR excl. Tax | EUR incl. 19% Tax | |
| ASC-D 15-16-500 VS (PM) | 2079550 | 1300 | 1 | 1900 | 940 | 1710 | 690 | 18 | 70 | 9.690,00 | 11.531,10 | |
| ASC-D 22-16-500 VS (PM) | 2079555 | 1900 | 1 | 1980 | 1040 | 1880 | 720 | 26,4 | 72 | 10.790,00 | 12.840,10 | |
Select Attributes
General
- Effective delivery volume approx.
- VPE
Dimensions and weights
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
Electrical Data
- Motor power (input power) electric motor
Noise emission
- Sound pressure level Lp
Price
- excl. Tax
- incl. 19% Tax
Productdetails
- High delivery rate of approx. 1,100 l/min ensures a reliable supply for demanding applications
- Ideal for high-performance laser cutting applications thanks to 16 bar operating pressure
- Energy-efficient IE4 permanent magnet motor with variable speed control
- Clean compressed air for precise laser processes guaranteed by ISO 8573-1 air quality (class 1-4-1)
- Easy access to all maintenance points thanks to easily removable housing parts
- Convenient control of all functions via the intuitive touch panel
| Compressed air tank | |
|---|---|
| Pressure vessel capacity | 500 l |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Permanent magnet motor |
| Noise emission | |
|---|---|
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
Unit: pc(s).
