| Air outlet | 1 " |

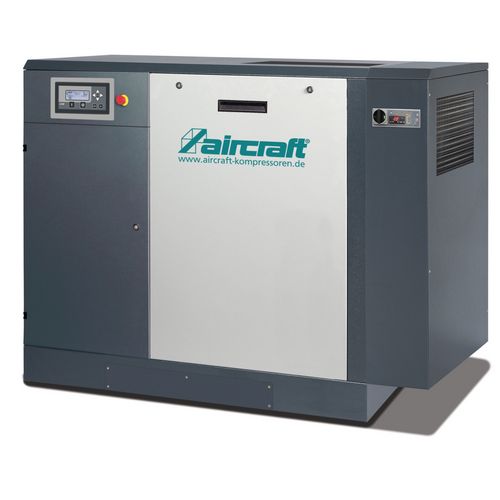

Screw compressor with ribbed belt drive (floor installation with refrigeration dryer)
A-PLUS K 18,5 - 22 kW
for 100% capacity utilization - designed for maximum operational reliability.
From 13.750,00
EUR excl. Tax / pc(s).
From 16.362,50
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Electrical Data | Noise emission | Price | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Effective delivery volume approx. (l/min) | Maximum Pressure (bar) | VPE | Weight approx. (kg) | Absorbed power electric motor (kW) | Sound pressure level Lp (dB(A)) | EUR excl. Tax | EUR incl. 19% Tax | |
| A-PLUS 18.5-08 K | 2093242 | 2800 | 8 | 1 | 400 | 18,5 | 66 | 13.750,00 | 16.362,50 | |
| A-PLUS 18.5-10 K | 2093244 | 2500 | 10 | 1 | 400 | 18,5 | 66 | 13.750,00 | 16.362,50 | |
| A-PLUS 18.5-13 K | 2093246 | 2150 | 13 | 1 | 400 | 18,5 | 66 | 13.750,00 | 16.362,50 | |
| A-PLUS 22-08 K | 2093442 | 3350 | 8 | 1 | 430 | 22 | 68 | 14.290,00 | 17.005,10 | |
| A-PLUS 22-10 K | 2093444 | 3000 | 10 | 1 | 430 | 22 | 68 | 14.290,00 | 17.005,10 | |
| A-PLUS 22-13 K | 2093446 | 2400 | 13 | 1 | 430 | 22 | 68 | 14.290,00 | 17.005,10 | |
Select Attributes
General
- Effective delivery volume approx.
- Maximum Pressure
- VPE
Dimensions and weights
- Weight approx.
Electrical Data
- Absorbed power electric motor
Noise emission
- Sound pressure level Lp
Price
- excl. Tax
- incl. 19% Tax
Productdetails

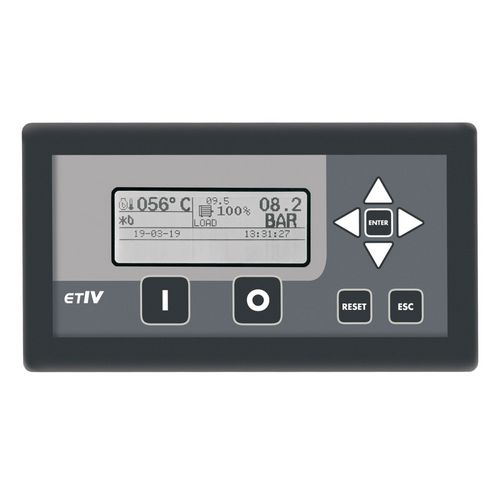

- EasyTRONIC MICRO II electronic control with pressure sensor operation as standard, thus preventing motor overload, reducing wear and extending service life
- With star-delta switch

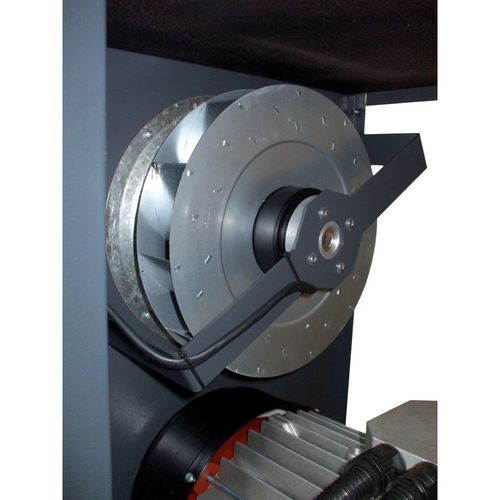

- High cooling effect and lower noise level due to thermostatically controlled radial fan
- Operating hours counter records load and overrun times, thus ensuring compliance with maintenance intervals - Indication of maintenance requirements via automatic message
- Rotation direction control for the motor avoids possible damage during commissioning or after a change of location
- Screw compressor with wear-resistant Poly V ribbed belt drive and slide clamping system
- Easy maintenance due to easily accessible elements
- Optimum operating temperatures due to thermostatically controlled fan, optimum cooling air flow and generously dimensioned heat exchanger, thus longer service life, lower fluctuations in oil temperature than with thermostat control
- Aftercooler as standard, thus less effort for drying and filtration of the generated compressed air
- Small external dimensions, thus easy transport and installation
| Dimensions and weights | |
|---|---|
| Length approx. | 1690 mm |
| Width/depth approx. | 800 mm |
| Height approx. | 1130 mm |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Noise emission | |
|---|---|
| Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
Unit: pc(s).
