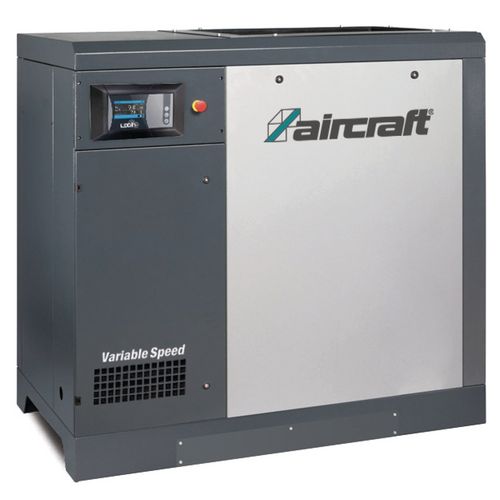

Screw compressor
A-K-MAX 38-08 VS (PM)
Compact screw compressor with variable speed control by IE4 permanent magnet motor and innovative LOGIN control system
28.745,00
EUR excl. Tax / pc(s).
34.206,55 EUR incl. 19% Tax / pc(s).
34.206,55 EUR incl. 19% Tax / pc(s).
Promotional price *
23.899,00 EUR excl. Tax / pc(s).28.439,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2026 in Germany.
Art.-No. 2096502.2
Are you interested in this product?
Put a request
Find Trader
Productdetails

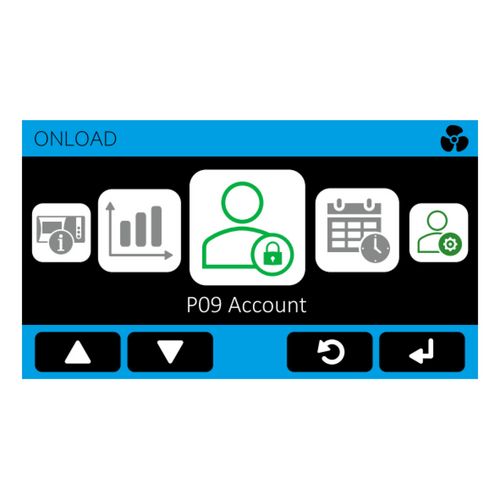

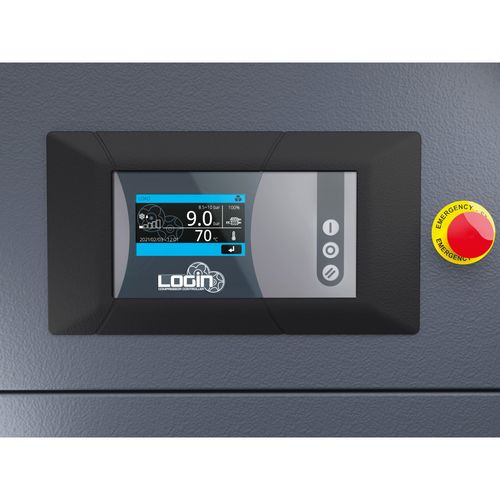

- Innovative LOGIN control with 4.3" touch screen for easy operation and full control of all functions.
- Rotation direction control for the motor, prevents damage during start-up or after a change of location
- High cooling effect and low noise level due to thermostatically controlled radial fan
- Optimum operating temperature and low fluctuation of oil temperature due to thermostatically controlled centrifugal fan, optimum cooling air flow and generously dimensioned heat exchangers
- Aftercooler reduces the effort for drying and filtration of the generated compressed air
- Easy to service: simple removal and installation of all components requiring maintenance

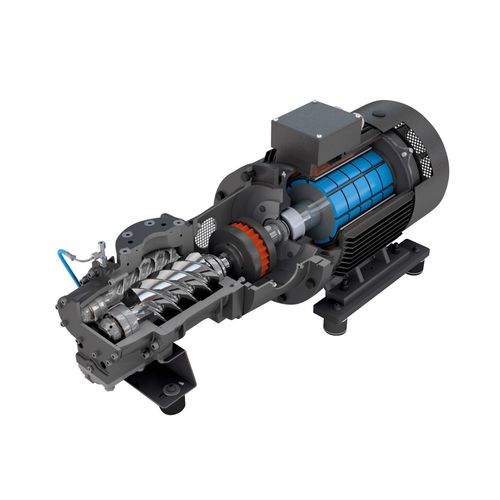

Latest generation IE4 permanent magnet motor for max. energy efficiency

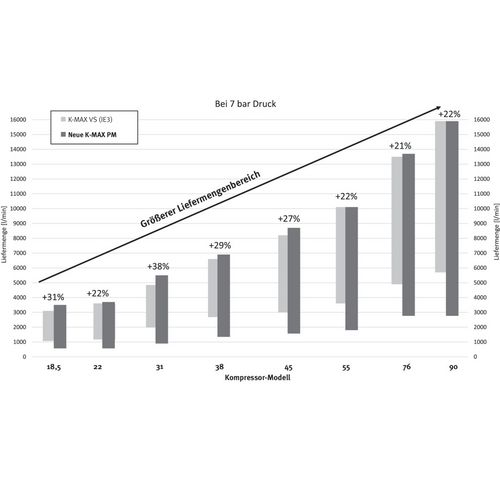

- Larger speed/load range
- Larger delivery volume supply range

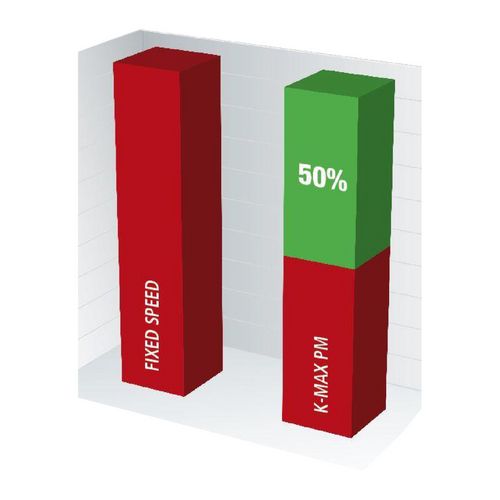

- Extremely energy efficient - up to 50% energy consumption savings compared to a "fixed speed" model
- Very quiet operation - only 64 dB
Energy saving through frequency control
- Ideal for frequently changing compressed air consumption
- Compressor delivery rate adjusts to actual consumption
- Electronic control monitors motor and compressor speed and keeps line pressure constant even when consumption fluctuates widely
- Advanced and efficient cutting-edge technology in the smallest possible space
You will receive the 3-year Stürmer warranty for this item when you register online.
| Effective delivery quantity of up to approx. | 1350 6900 l/min |
| Maximum Pressure | 7.5 bar |
| Air outlet | 1.5 " |
| Oil-free / oil-lubricated | Oil lubricated |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 1590 mm |
| Width/depth approx. | 1000 mm |
| Height approx. | 1560 mm |
| Weight approx. | 850 kg |
| Electrical Data | |
|---|---|
| Motor power (input power) electric motor | 37 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 70 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
| Product information EU 2023/2854 | |
|---|---|
| Type of the generated data | Usage data |
| Format of the generated data | Common, machine-readable formats such as JSON |
| Amount of data | Up to 5 MB |
| Continuous data generation in real time | Yes |
| Data storage location | On the device |
| Data access | On the device and physical and wireless interfaces |
| Further information | In the operating instructions or at info@stuermer-maschinen.de |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Frequency controlled | ✔ |
| Control | Electronical |
| Oil heat exchanger | ✔ |
| Drive transmission | Direct coupling |
| Compressor type | FS270 |
| Star-delta switch | ✔ |
