| Effective delivery volume approx. | 11700 l/min |
| Maximum Pressure | 10 bar |
| Air outlet | 2 " |
| Oil-free / oil-lubricated | Oil lubricated |
| Mobile / Stationary | Stationary |
| VPE | 1 |

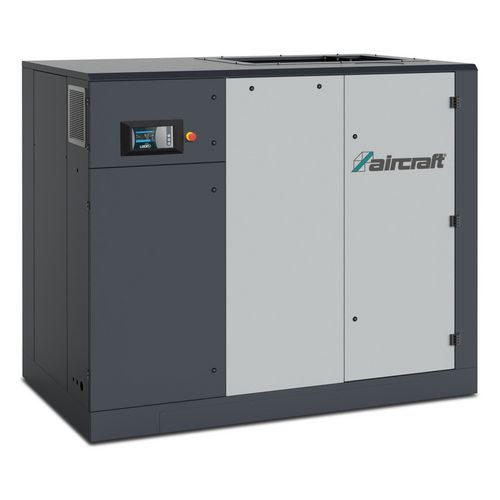

Screw compressor
A-K-MAX 76-10 (IE4)
Compact screw compressor with constant speed thanks to IE4 motor and innovative LOGIN control system
55.735,00
EUR excl. Tax / pc(s).
66.324,65
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2097504.2
Are you interested in this product?
Put a request
Find Trader
Productdetails

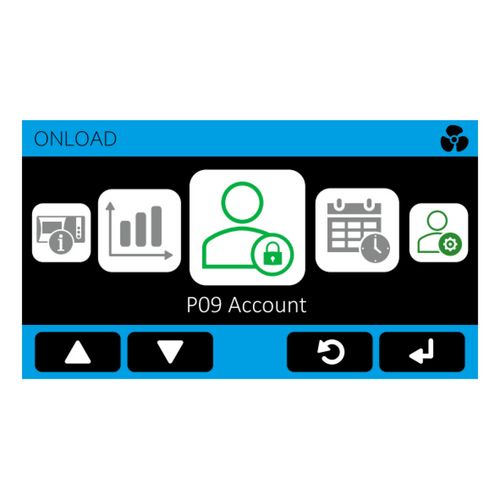

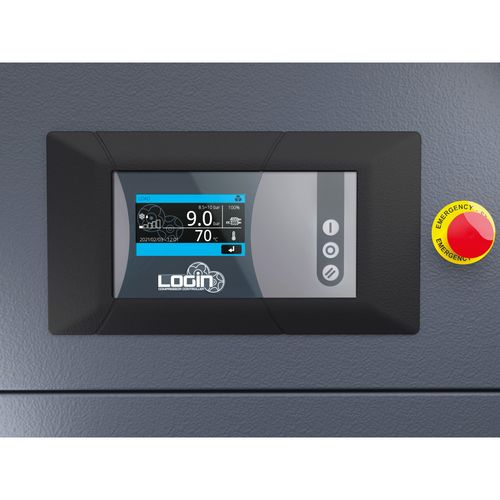

- Innovative LOGIN control with 4.3" touch screen for easy operation and full control of all functions.
- Energy-efficient IE4 motor
- Rotation direction control for the motor, prevents damage during start-up or after a change of stand location
- High cooling effect and low noise level due to thermostatically controlled radial fan
- Optimum operating temperature and low fluctuation of oil temperature due to thermostatically controlled radial fan, optimum cooling air flow and generously dimensioned heat exchangers
- Aftercooler reduces the effort for drying and filtration of the generated compressed air
- Star-delta switching as standard
- Easy to service: simple removal and installation of all components requiring maintenance
| Dimensions and weights | |
|---|---|
| Length approx. | 2300 mm |
| Width/depth approx. | 1460 mm |
| Height approx. | 1960 mm |
| Weight approx. | 2880 kg |
| Electrical Data | |
|---|---|
| Absorbed power electric motor | 75 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electric |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 67 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Control | Electronical |
| Oil heat exchanger | ✔ |
| Drive transmission | Direct coupling |
| Compressor type | FS300 |
| Star-delta switch | ✔ |
