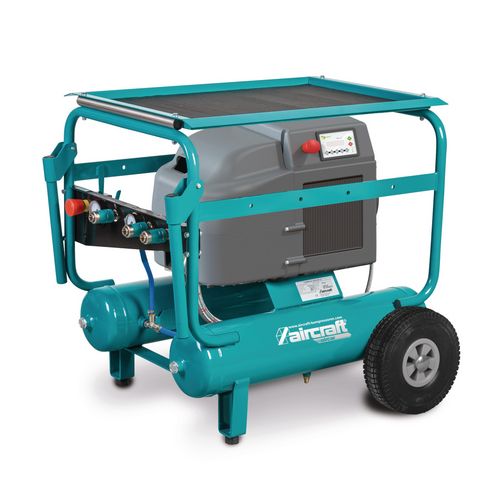

ACS 3,5-10-22

• Just as mobile and compact as piston compressors, but with the great advantage of being able to generate compressed air continuously without any cooling pauses
• Can also be used in intermittent operation due to oil temperature control

Electronic temperature control for optimum oil temperature

• Optimum oil viscosity due to constant temperature, therefore also suitable for intermittent operation with frequent load changes
• Temperature control of the oil prevents condensation and minimizes wear
• Better energy efficiency compared to a piston compressor with the same delivery capacity
• Additional oil heat exchanger for cooling

K-Tronic electronic control system for reliability and efficiency

• Adjustment of the cut-in and cut-out pressure
• Direction of rotation control
• Monitoring and control of the oil temperature
• Maintenance interval display

Optimized oil separation system

• Effective oil pre-separation by gravity, as the oil sump is located at the lowest point
• Oil separator cartridge and oil filter cartridge easily accessible for maintenance

Integrated design of the compressor unit

• Convenience and high operational reliability thanks to integration and short connections of all key components on the compressor unit
• Maintenance-free direct drive
• Freewheel valve for load-free operation after reaching the set pressure

Lightweight, compact and quiet

• Can be used in mobile applications or where space is limited
• Highly efficient and low-noise fan
• Smooth-running compressor with low noise level

High-quality equipment

• Compressed air extraction via convenient safety quick-release couplings
• One extraction point each for unfiltered, filtered and filtered-oiled compressed air
• Powder-coated compressed air tank with ten-year guarantee against rusting through
• Flexible armored hose line with heat protection prevents vibration fractures

Control panel
Ergonomically positioned, clearly structured and self-explanatory

1. Pressure gauge for displaying the tank pressure
2. Compressed air direct outlet with one-hand safety coupling from the compressed air tank
3. Filter pressure reducer for setting the working pressure
4. Pressure gauge for displaying the set working pressure
5. Compressed air outlet One-hand safety coupling for filtered compressed air
6. Mist lubricator for metered supply of lubricant to the tools
7. Compressed air outlet One-hand safety coupling for filtered and lubricated compressed air

You will receive the 3-year Stürmer warranty for this item when you register online.

• For continuous air demand and discontinuation operation
• Electronic control for reliability and efficiency
• Optimized oil separation system
• One point for unfiltered, filtered and filtered-oiled
  Compressed air
• Smooth and quiet
