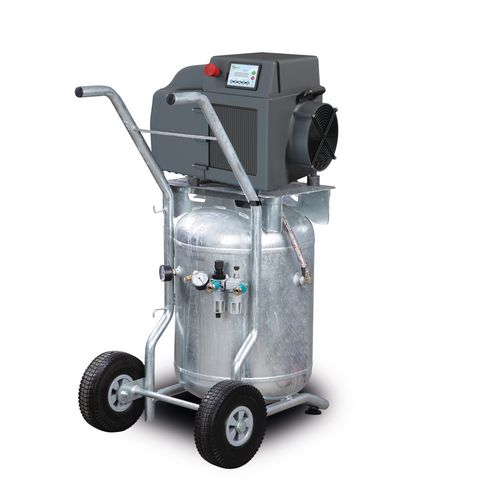

ACS 3,5-10-90 V

• Just as mobile and compact as piston compressors, but with the great advantage of being able to generate compressed air continuously without any cooling pauses
• Can also be used in intermittent operation due to oil temperature control

Electronic temperature control for optimum oil temperature

• Optimum oil viscosity due to constant temperature, therefore also suitable for intermittent operation with frequent load changes
• Temperature control of the oil prevents condensation and minimizes wear
• Better energy efficiency compared to a piston compressor with the same delivery capacity
• Additional oil heat exchanger for cooling

K-Tronic electronic control system for reliability and efficiency

• Adjustment of the cut-in and cut-out pressure
• Direction of rotation control
• Monitoring and control of the oil temperature
• Maintenance interval display

Optimized oil separation system

• Effective oil pre-separation by gravity, as the oil sump is located at the lowest point
• Oil separator cartridge and oil filter cartridge easily accessible for maintenance

Integrated design of the compressor unit

• Convenience and high operational reliability thanks to integration and short connections of all key components on the compressor unit
• Maintenance-free direct drive
• Freewheel valve for load-free operation after reaching the set pressure

Lightweight, compact and quiet

• Can be used in mobile applications or where space is limited
• Highly efficient and low-noise fan
• Smooth-running compressor with low noise level

High-quality equipment

• Compressed air tank hot-dip galvanized inside and out, 15-year guarantee on the tank against rusting through
• Large, puncture-proof PU foam wheels for comfortable transportation
• Flexible armored hose line with heat protection prevents vibration fractures

• For continuous air demand and discontinuation operation
• Electronic control for reliability and efficiency
• Optimized oil separation system
• High-quality equipment
• Smooth and quiet
