| Number of cutting edges | 5 |
| Indexable inserts | 10 mm |

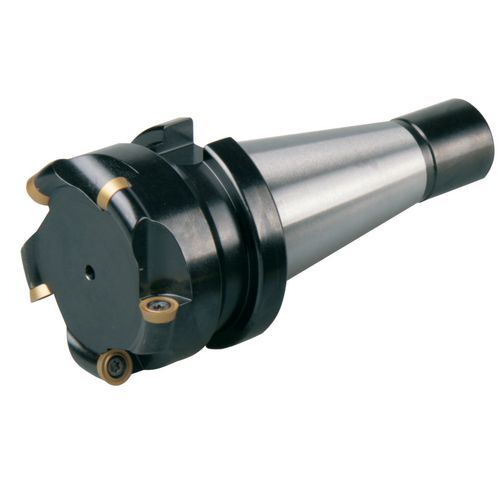

Copy and face milling cutter
Universal use, for machining on all steel and non-ferrous metals
From 305,00
EUR excl. Tax / pc(s).
From 362,95
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Price | |||||||
|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Outer diameter (mm) | Mounting shaft | ISO designation | VPE | EUR excl. Tax | EUR incl. 19% Tax | |
| Shank ISO 30 | 3350215 | 52 | ISO 30 | RD X 1003 D52/R5 | 1 | 305,00 | 362,95 | |
| Shaft ISO 40 | 3350216 | 63 | ISO 40 | RD X1003 D63/R5 | 1 | 345,00 | 410,55 | |
Select Attributes
General
- Outer diameter
- Mounting shaft
- ISO designation
- VPE
Price
- excl. Tax
- incl. 19% Tax
Productdetails
- For face and copy milling
- Made of special steel - highly tempered
- High axial and radial run-out accuracy
- Milling body with uneven pitch for particularly smooth running and even cutting
- Base body and clamping shank form a single unit, resulting in a short overhang length and stable clamping
- No additional milling cutter arbor is used
- Special geometry for milling at high speed
- Economical, as the insert can simply be turned further when the cutting edge is blunt (can be used up to twelve times)
- Indexable inserts Ø 10 mm
Unit: pc(s).
