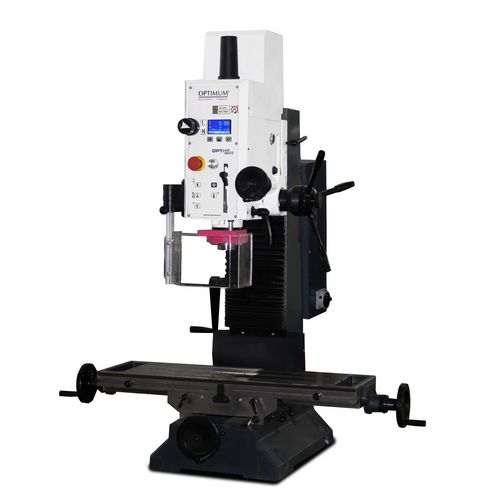

    Drilling-milling machine

    OPTImill MB 4SV with servo drive

    Universal drilling and milling machine with electronically controllable drive and digital display

    3.950,00 EUR excl. Tax / pc(s).
    4.700,50 EUR incl. 19% Tax / pc(s).
    Promotional price *
    3.799,00 EUR excl. Tax / pc(s).
    4.520,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3338458

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Quality industrial electric motor
    • Smooth running due to ground gears running in an oil bath
    • Wide speed range from 95 - 3,200 rpm thanks to 12 switchable speeds
    • Clockwise/anticlockwise rotation
    • Gear head can be tilted ± 45
    • Manual quill feed with fine feed
    • Height-adjustable protective screen with microswitch
    • EMC filter class
    • Network connection



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.1155 mm
    Width/depth approx.980 mm
    Height approx.1360 mm
    Weight approx.320 kg
    Drilling/milling head
    Mill head swivel range± 45 °
    Drilling/milling output
    Max. size milling head63 mm
    Max. size shaft milling cutter26 mm
    Drilling performance steel (S235JR)32 mm
    Continuous drilling performance steel (S235JR)28 mm
    Electrical Data
    Supply voltage230 V
    Mains frequency50 Hz
    Milling table horizontal
    Table length800 mm
    Table width240 mm
    T-groove size14 mm
    T-groove number3
    T-groove spacing63 mm
    Travel
    X axis manual450 mm
    Y axis manual200 mm
    Max. distance spindle to column275 mm
    Vertical spindle
    Spindle chuckMK 4 / MK 16
    Speed range360 – 3000 min¯¹
    Number of gears2
    Speed controlelectronically adjustable
    Drive motor output continuous operation S13 kW
    Quill stroke120 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1
