    Brandimage to Product OPTIdrill DM 35

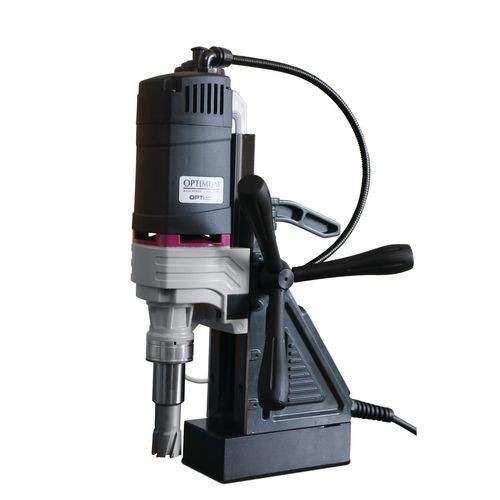

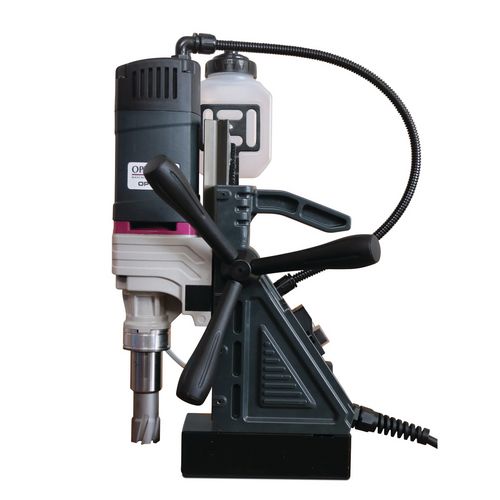

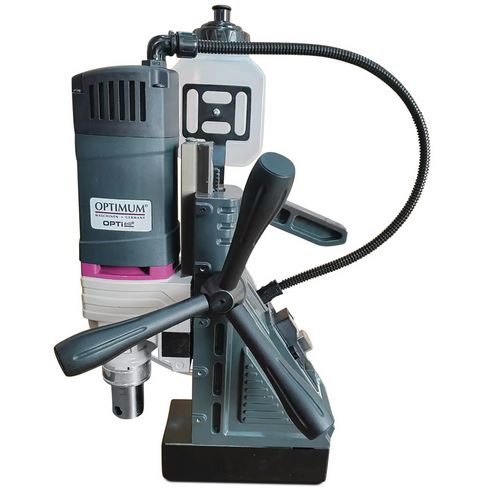

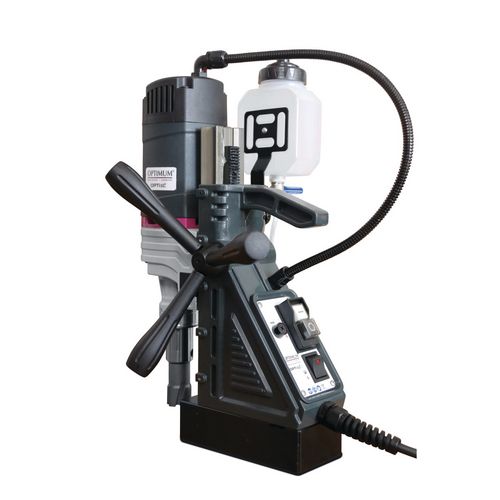

    Magnetic core drill

    OPTIdrill DM 35

    When reliability, precision and cost-effective working are important

    569,00 EUR excl. Tax / pc(s).
    677,11 EUR incl. 19% Tax / pc(s).
    Promotional price *
    509,00 EUR excl. Tax / pc(s).
    605,71 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3071036

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Stable drill guide due to long and low-mounted quill holder
    • The devices are ideal for the construction site as they are earthed and double insulated
    • Internal self-lubrication function ensures a longer service life of the gearbox
    • Soft start protects the motor and extends the service life
    • Powerful motor with high torque and low maintenance
    • High-quality construction
    • Conversion from core drilling to solid drilling in a few simple steps
    • Automatic return to the starting position
    • Protection class IP42



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Collet
    DrillWeldon 3/4"
    Core drills
    Core drills Ø max. with manual feed13 mm
    Max. drilling depth core drilling with manual feed35 mm
    Dimensions and weights
    Length approx.270 mm
    Width/depth approx.210 mm
    Height approx.480 mm
    Weight approx.11 kg
    Electrical Data
    Drive motor output1.6 kW
    Supply voltage230 V
    Mains frequency50 Hz

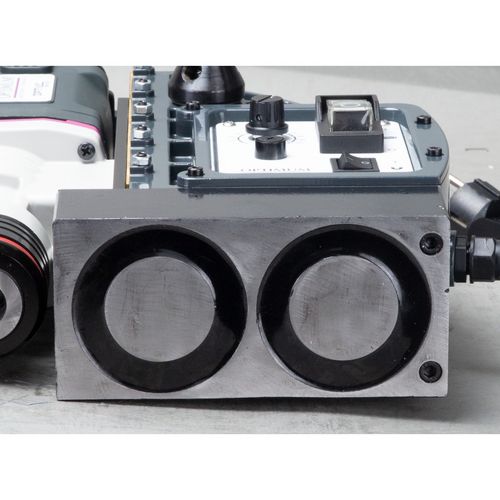

    Magnet
    Holding force16 kN
    Magnet base length166 mm
    Magnet base width80 mm
    Speed range
    Idle (CW run)830 min¯¹
    VPE1
    Unit: pc(s).
    Packaging unit: 1
