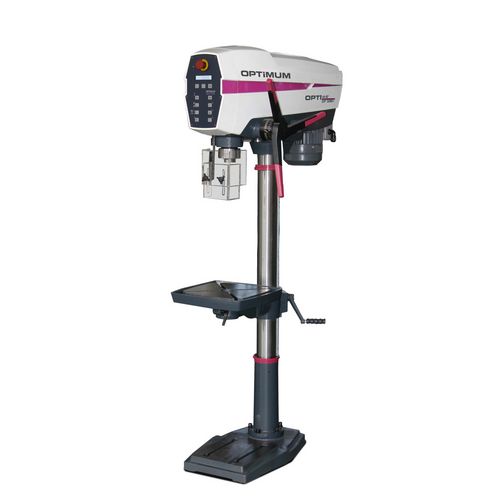

Upright drill
OPTIdrill DP 33BV
with Vario drive in a modern design
2.505,00
EUR excl. Tax / pc(s).
2.980,95
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3027685
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Heavy-duty design of the entire machine

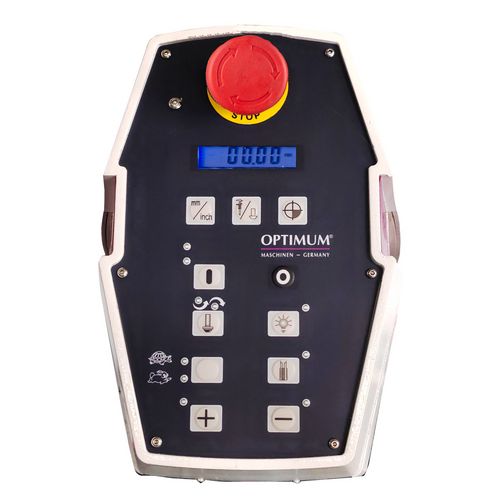

- Separate emergency stop switch
- Digital depth gauge
- Right/left rotation
- Machine operation with safety electrics in 24 V DC voltage
- Guaranteed concentricity ≤ 0.02 mm measured in the drilling spindle
- Particularly smooth running thanks to new spindle design Industrial motor
- LED machine light integrated in the drill head
- Precision spindle bore
- Thick-walled steel column
- Speed display
- Solid, large base plate with T-slots
- Precisely machined, stable drill table

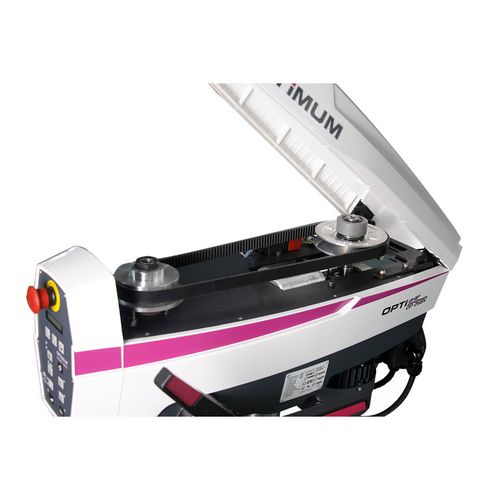

- V-belt cover with safety switch
- Tapping function with automatic switchover after reaching the depth
| Dimensions and weights | |
|---|---|
| Column diameter | 92 mm |
| Length approx. | 945 mm |
| Width/depth approx. | 480 mm |
| Height approx. | 1880 mm |
| Weight approx. | 177 kg |
| Drilling performance | |
|---|---|
| Drilling performance steel (S235JR) | 30 mm |
| Continuous drilling performance steel (S235JR) | 25 mm |
| Drilling table | |
|---|---|
| Workspace length | 387 mm |
| Workspace width | 387 mm |
| T-groove size | 14 mm |
| Rotation | 360 ° |
| Angle | 45 ° |
| Max. distance spindle - drilling table | 775 mm |
| Electrical Data | |
|---|---|
| Drive motor output | 0.85 / 1.5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine base | |
|---|---|
| Max. distance spindle - machine base | 1300 mm |
| Work area length | 270 mm |
| Work area width | 327 mm |
| Speed range | |
|---|---|
| Speed range | 420 2130 min¯¹ |
| Number of gears | 9 Steps |
| Speed control | electronically adjustable |
| Spindle | |
|---|---|
| Quill stroke | 125 mm |
| Spindle chuck | MT 4 |
| Reach | 270 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Quick-action drill chuck 1-16 mm
- Taper arbor for drill chuck
- T-nuts
- Drift
