Radial drill

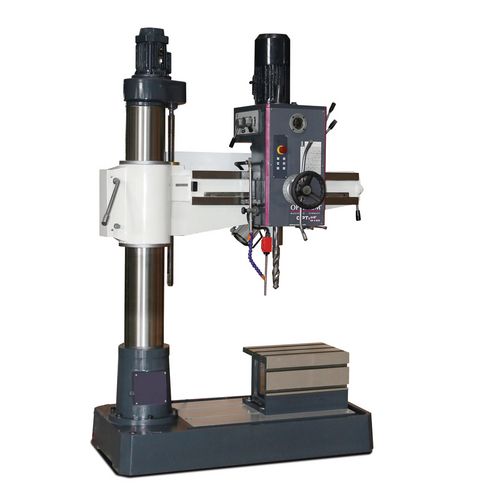

OPTIdrill RD 4E
Precise, solid radial drilling machine, ideal for variable use in single part and series production
7.490,00
EUR excl. Tax / pc(s).
8.913,10
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3049340
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Versatile range of applications such as drilling, reaming, thread cutting
- Electrically braked motor
- Operating elements with 24V DC electrics and 2-channel safety chain in accordance with DIN EN 12717
- Heavy, solid, high-quality casting
- Wide reach due to horizontally adjustable machine head
- Clearly arranged control panel
- Smooth-running swivel and traversing axles
- Sturdy, torsion-resistant construction of the boom
- Boom height adjustment via powerful motorized drive and lifting spindle
- Gearbox of the drill head runs in an oil bath
- Boom guideways hardened and precision-ground
- Gear wheels made of chrome-nickel steel, hardened and precision-ground for quiet and smooth running
- Drill head and column can be clamped or released together or separately
- Right/left rotation
- Solid, precise drill table, large dimensions
- Hardened and ground clamping table with parallel T-slots
- Machine light
- Overload protection
- Thick-walled cast iron column ensures smooth running and stability
- LED lamp
- Coolant system with coolant tank in the machine base
- Clamping table included in scope of delivery
- Column and headstock mechanically clamped
| Dimensions and weights | |
|---|---|
| Length approx. | 1550 mm |
| Width/depth approx. | 750 mm |
| Height approx. | 2200 mm |
| Weight approx. | 800 kg |
| Drilling performance | |
|---|---|
| Drilling performance steel (S235JR) | 35 mm |
| Continuous drilling performance steel (S235JR) | 32 mm |
| Drilling table | |
|---|---|
| Clamping table length | 460 mm |
| Clamping table width | 320 mm |
| Clamping table height | 300 mm |
| Min. distance spindle to clamping table | 260 mm |
| Max. distance spindle to clamping table | 1000 mm |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine base | |
|---|---|
| Work area length | 1400 mm |
| Work area width | 700 mm |
| Machine base T-groove size | 16 mm |
| Machine base T-groove number | 2 |
| Machine base T-groove spacing | 200 mm |
| Motor(s) | |
|---|---|
| Spindle motor drive output | 2.2 kW |
| Boom lift motor drive output | 0,75 kW |
| Speed range | |
|---|---|
| Speed range | 75 1220 min¯¹ |
| Number of gears | 6 |
| Spindle | |
|---|---|
| Quill stroke | 200 mm |
| Spindle chuck | MT 4 |
| Quill feed | automatic |
| Quill feed speed | 0.1 – 0.25 mm/rev |
| Quill feed gears | 3 Steps |
| Travel | |
|---|---|
| Drilling head travel (horizontal) | 570 mm |
| Boom lift stroke (vertical) | 500 mm |
| Max. distance spindle - column | 870 mm |
| Min. distance spindle - column | 300 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Clamping table
- Morse taper MK4-MK3, MK4-MK2
