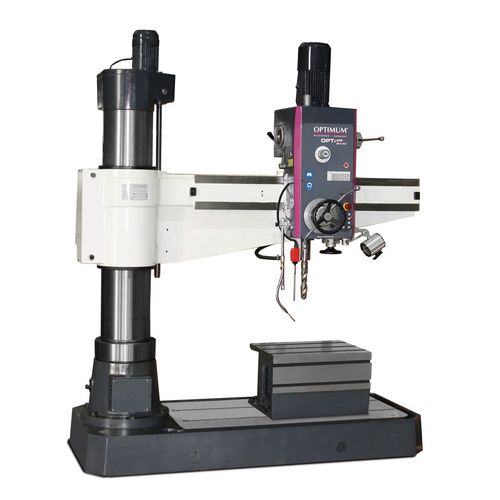

    Productimage for OPTIdrill RD 5E
    Brandimage to Product OPTIdrill RD 5E

    Radial drill

    OPTIdrill RD 5E

    Precise, solid radial drilling machine, ideal for variable use in single part and series production

    13.090,00 EUR excl. Tax / pc(s).
    15.577,10 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3049350

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Versatile range of applications such as drilling, reaming, thread cutting
    • Electrically braked motor
    • Operating elements with 24V DC electrics and 2-channel safety chain in accordance with DIN EN 12717
    • Heavy, solid, high-quality casting
    • Wide reach due to horizontally adjustable machine head
    • Clearly arranged control panel
    • Smooth-running swivel and traversing axles
    • Sturdy, torsion-resistant construction of the boom
    • Boom height adjustment via powerful motorized drive and lifting spindle
    • Gearbox of the drill head runs in an oil bath
    • Boom guideways hardened and precision-ground
    • Gear wheels made of chrome-nickel steel, hardened and precision-ground for quiet and smooth running
    • Drill head and column can be clamped or released together or separately
    • Right/left rotation
    • Solid, precise drill table, large dimensions
    • Hardened and ground clamping table with parallel T-slots
    • Machine light
    • Overload protection
    • Thick-walled cast iron column ensures smooth running and stability
    • LED lamp
    • Coolant system with coolant tank in the machine base
    • Clamping table included in scope of delivery
    • Column and headstock mechanically clamped



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.2045 mm
    Width/depth approx.800 mm
    Height approx.2450 mm
    Weight approx.2200 kg
    Drilling performance
    Drilling performance steel (S235JR)45 mm
    Continuous drilling performance steel (S235JR)40 mm
    Drilling table
    Clamping table length600 mm
    Clamping table width450 mm
    Clamping table height370 mm
    Min. distance spindle to clamping table 370 mm
    Max. distance spindle to clamping table1210 mm
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz
    Motor(s)
    Spindle motor drive output2.2 kW
    Boom lift motor drive output0,75 kW
    Speed range
    Speed range40 1896 min¯¹
    Number of gears12
    Spindle
    Spindle chuckMT 4
    Travel
    Drilling head travel (horizontal)1000 mm
    Boom lift stroke (vertical)680 mm
    Max. distance spindle - column1370 mm
    Min. distance spindle - column370 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Clamping table
    • Morse taper MK4-MK3, MK4-MK2
