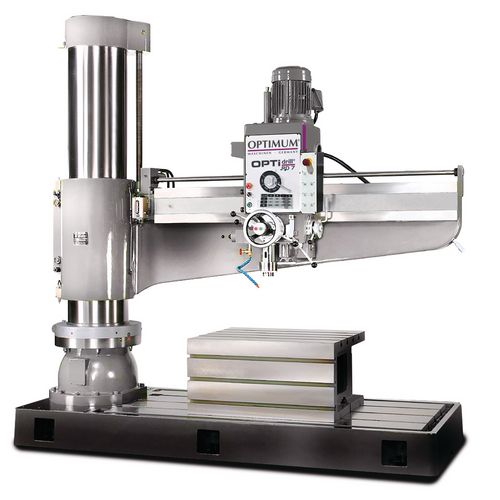

Radial drill
OPTIdrill RD 7
Precision-working, solid radial drilling machines in top quality. Ideal for variable use in single part and series production.
82.130,00
EUR excl. Tax / pc(s).
97.734,70
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3049080
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Versatile range of applications, e.g. drilling, reaming, thread cutting
- Electrically braked motor

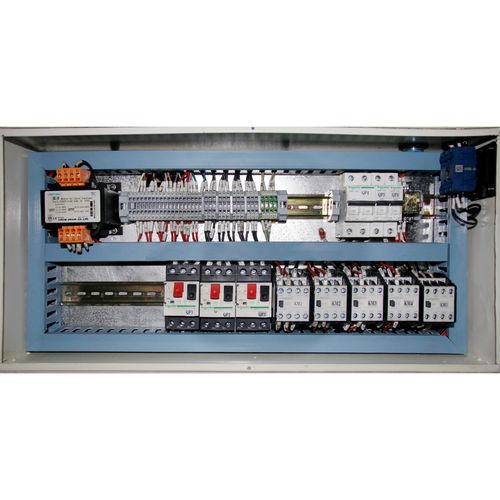

- 24V DC electrics and 2-channel safety chain in accordance with DIN EN 12717
- Heavy, solid, high-quality casting

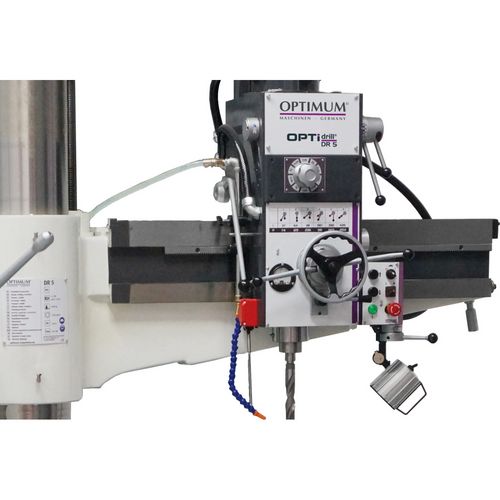

- Wide reach thanks to horizontally adjustable machine head

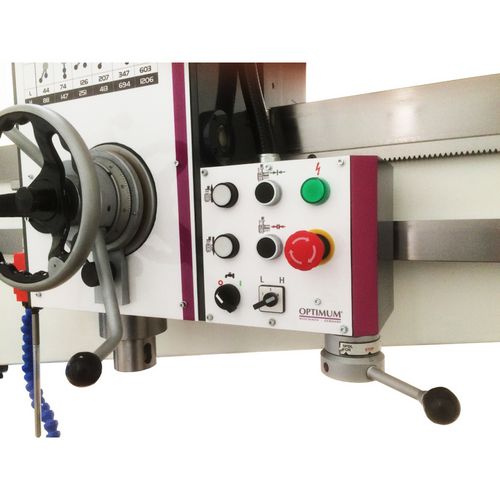

- Clearly arranged control panel
- Smooth-running swivel and traversing axles
- Elaborately crafted column swivel with optimized clamping for maximum stability with minimal clamping offset
- Heavy-duty, torsion-resistant construction of the boom
- Boom height adjustment via powerful motorized drive and lifting spindle
- Gearbox of the drill head runs in an oil bath
- Boom guideways hardened and precision-ground
- Gear wheels made of chrome-nickel steel, hardened and precision-ground for quiet and smooth running
- Drill head and column can be clamped or released together or separately
- Right-left rotation
- Solid, precise drill table, large dimensions
- Hardened and ground clamping table with parallel T-slots
- Machine light
- Overload protection
- Thick-walled cast iron column ensures smooth running and stability
- LED lamp

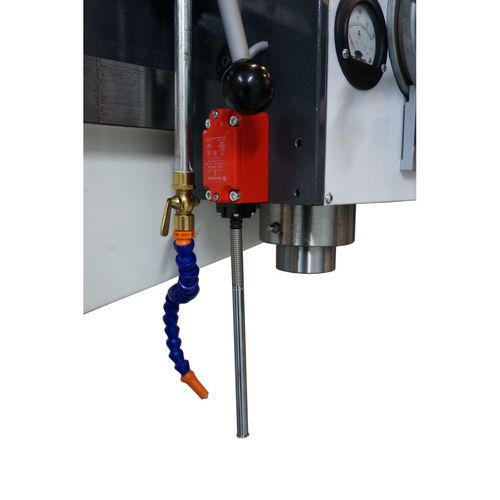

- Coolant system with coolant tank in the machine base
RD 6 / RD 7
- Column is clamped hydraulically
| Boom | |
|---|---|
| Angle of rotation | ± 180 ° |
| Dimensions and weights | |
|---|---|
| Column diameter | 432 mm |
| Length approx. | 3050 mm |
| Width/depth approx. | 1185 mm |
| Height approx. | 3050 mm |
| Weight approx. | 5600 kg |
| Drilling performance | |
|---|---|
| Drilling performance steel (S235JR) | 70 mm |
| Drilling table | |
|---|---|
| Clamping table length | 1000 mm |
| Clamping table width | 800 mm |
| Clamping table height | 500 mm |
| Electrical Data | |
|---|---|
| Total rated value | 11 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine base | |
|---|---|
| Max. distance vertical spindle | 440 mm |
| Min. distance vertical spindle | 2060 mm |
| Motor(s) | |
|---|---|
| Spindle motor drive output | 5.6 kW |
| Boom lift motor drive output | 1,5 kW |
| Coolant pump drive motor output | 0,09 kW |
| Hydraulic clamping drive | 0,75 kW |
| Speed range | |
|---|---|
| Speed range | 29 1575 min¯¹ |
| Number of gears | 12 |
| Spindle | |
|---|---|
| Quill stroke | 370 mm |
| Spindle chuck | MT 5 |
| Quill feed | automatic |
| Quill feed speed | 0.07 – 0.96 mm/rev |
| Travel | |
|---|---|
| Drilling head travel (horizontal) | 1185 mm |
| Y axis manual | 1000 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
