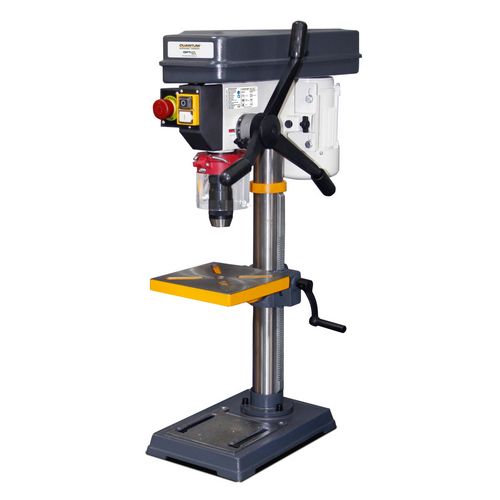

    Productimage for quantum DQ 16
    Brandimage to Product quantum DQ 16

    Bench drill with V-belt drive

    quantum DQ 16

    275,00 EUR excl. Tax / pc(s).
    327,25 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3182010

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Guaranteed concentricity ≤ 0.02 mm measured in the drill spindle
    • Drill spindle with precision ball bearing
    • High-quality quick-action drill chuck
    • Large, height-adjustable chuck protection cover
    • Work table adjustable from +45° to -45°
    • With high practical performance



    • Guaranteed concentricity ≤ 0.02 mm measured in the drill spindle
    • Drill spindle with precision ball bearing
    • Work table adjustable from +45° to -45°



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Column diameter60 mm
    Length approx.665 mm
    Width/depth approx.430 mm
    Height approx.255 mm
    Weight approx.28 kg
    Drilling performance
    Drilling performance steel (S235JR)16 mm
    Continuous drilling performance steel (S235JR)14 mm
    Drilling table
    Workspace length200 mm
    Workspace width200 mm
    T-groove typediagonal
    T-groove size16 mm
    T-groove number2
    Rotation360 °
    Angle45 °
    Max. distance spindle - drilling table410 mm
    Electrical Data
    Drive motor output0.45 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Machine base
    Max. distance spindle - machine base530 mm
    Work area length355 mm
    Work area width 235 mm
    Speed range
    Speed range250 2400 min¯¹
    Number of gears12 Stufen
    Speed controlmanuell
    Spindle
    Quill stroke60 mm
    Spindle chuckMT 2
    Reach128 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Schnellspannbohrfutter
