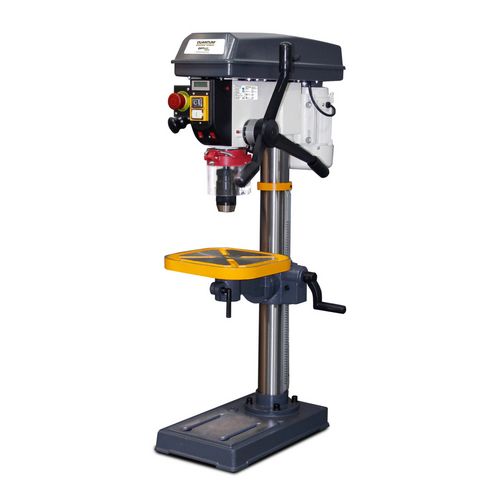

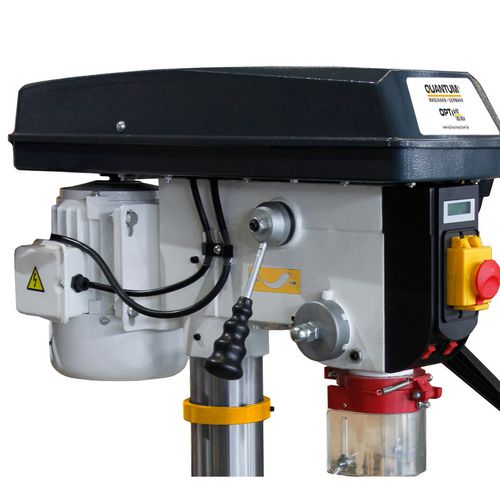

Upright drill
quantum DQ 16V
Drill with electronically adjustable speed
335,00
EUR excl. Tax / pc(s).
398,65
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3182070
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Smooth-running and powerful brushless drive
- User-friendly safety switch in accordance with IP 54
- Long, ergonomic quill lever with handles
- Drilling depth stop

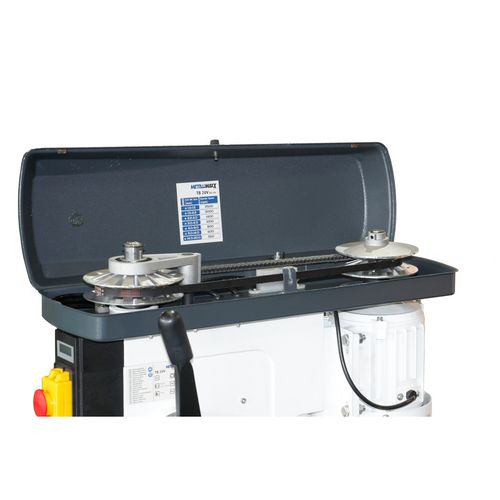

- V-belt cover with safety switch
- Guaranteed concentricity ≤ 0.02 mm measured in the drill spindle
- Drill spindle with precision ball bearing
- High-quality quick-action drill chuck
- Large, height-adjustable chuck protection cover
- The work table can be adjusted from +45° to -45°
- Smooth-running and powerful brushless drive
- Guaranteed concentricity ≤ 0.02 mm measured in the drill spindle
- The work table can be adjusted from +45° to -45
| Dimensions and weights | |
|---|---|
| Column diameter | 72 mm |
| Length approx. | 770 mm |
| Width/depth approx. | 450 mm |
| Height approx. | 260 mm |
| Weight approx. | 42 kg |
| Drilling performance | |
|---|---|
| Drilling performance steel (S235JR) | 16 mm |
| Continuous drilling performance steel (S235JR) | 14 mm |
| Drilling table | |
|---|---|
| Workspace length | 250 mm |
| Workspace width | 250 mm |
| T-groove type | diagonal |
| T-groove size | 16 mm |
| T-groove number | 2 |
| Rotation | 360 ° |
| Angle | 45 ° |
| Max. distance spindle - drilling table | 420 mm |
| Electrical Data | |
|---|---|
| Drive motor output | 0.49 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Machine base | |
|---|---|
| Max. distance spindle - machine base | 630 mm |
| Length | 420 mm |
| Width | 250 mm |
| Speed range | |
|---|---|
| Speed range | 550 2500 min¯¹ |
| Speed control | electronically adjustable |
| Spindle | |
|---|---|
| Quill stroke | 80 mm |
| Spindle chuck | MT 2 |
| Reach | 162 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Schnellspannbohrfutter
