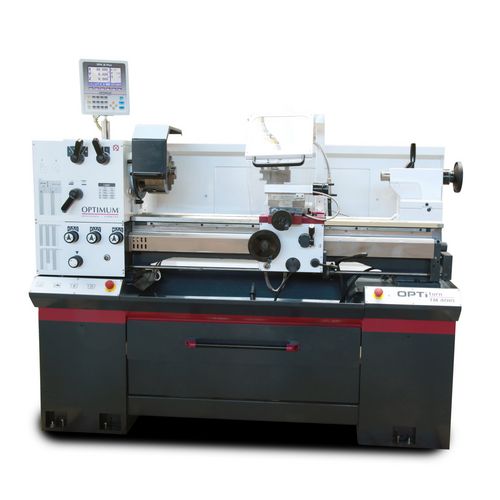

OPTIturn TM 4010V

Impresses with its stable design. DPA 32 with cutting constant VSC

14.450,00 EUR excl. Tax / pc(s).
17.195,50 EUR incl. 19% Tax / pc(s).

Promotional price *

13.699,00 EUR excl. Tax / pc(s).
16.301,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 3403050

Are you interested in this product?

Put a request

Find Trader

Productdetails

Hardened and ground Z-axis guideway
Guaranteed concentricity of the spindle nose ≤ 0.015 mm
Spindle holder Camlock DIN ISO 702-2 No. 5
Motor protection switch
Main motor electrically braked
Clockwise/anticlockwise rotation switchable on the bed slide
Two-channel safety electronics
Switch with life cycle calculation tested in accordance with EN ISO 13849
Perfectly concentric main spindle guarantees high load capacity due to mounted precision tapered roller bearings
With safety device to prevent simultaneous operation of tapping and feed mechanism
Safety handwheels with disengagement function in the X and Z axes

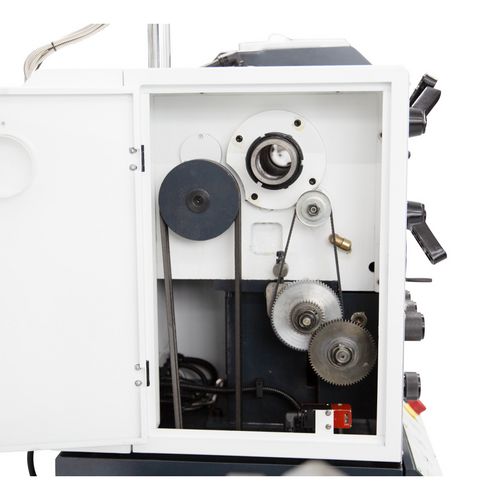

All gear wheels of the feed gear made of steel, hardened and ground, shafts on needle bearings All components are lubricated in an oil bath
Simple feed operation
One change gear position

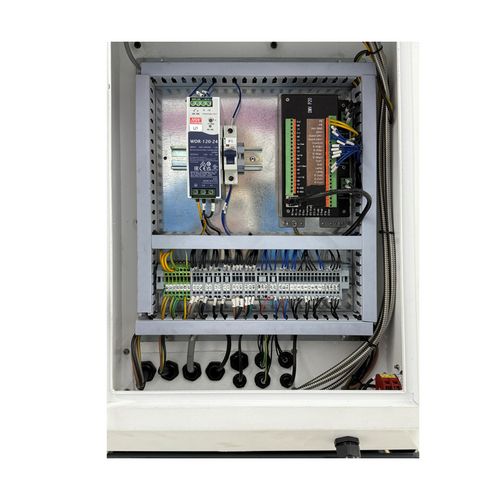

Switch cabinet with Optimum control system
Coolant pump with coolant tank and level indicator. Container can be removed for easy cleaning
LED machine lamp in the machine housing
Machine base in sturdy steel construction
Emergency stop switch on the right and left
Lockable main switch
Three-jaw lathe chuck included in the scope of delivery
SWH included in scope of delivery

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Dimensions and weights
Length approx.	1935 mm
Width/depth approx.	780 mm
Height approx.	1740 mm
Weight approx.	767 kg

Electrical Data
Drive motor output	4 kW
Supply voltage	400 V
Mains frequency	50 Hz

Feed
Longitudinal feed range	0,014 – 0,38 mm/rev
Number of longitudinal feeds	26
Flat feed range	0,052 – 1,392 mm/rev
Number of flat feeds	32

Pitches
Metric pitch	0,4 – 7 mm/rev
Number of metric pitches	32
Imperial pitch	56 – 4 Gg/1"
Number of imperial pitches	31

Speed range
Number of gears	4
Speed range	40 – 3000 min¯¹

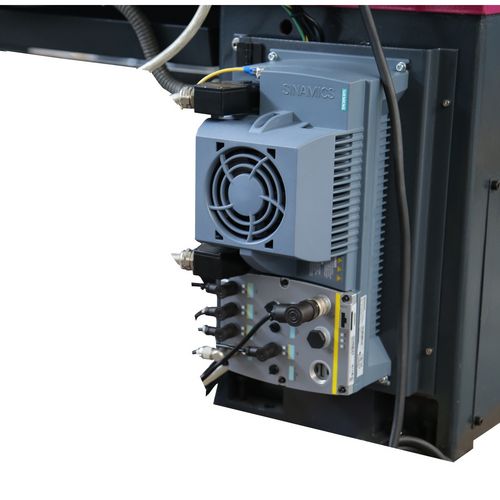

Speed control	Electronical

Spindle
Spindle chuck	Camlock DIN ISO 702-2 No.5
Spindle bore/rod passage diameter	52 mm

Tailstock
Chuck	MT 6

Travel
Travel upper slide	98 mm
Travel cross slide	185 mm

Work areas
Max. height	200 mm
Max. width	1000 mm
Swing diameter above machine bed	400 mm
Swing diameter above planing slide	250 mm

VPE

Unit: pc(s).
Packaging unit: 1

Three-jaw lathe chuck Ø 200 mm Camlock no. 5
Fixed steady rest Ø 7 - Ø 102 mm
Rotating steady rest Ø 10 - Ø 60 mm
LED machine light
Adapter MK 6-MK 4
Non-rotating center point MK4
Quick-change steel holder SWH 3-E
Steel holder 20 x 100 type D for square chisel 18 mm
Initial machine filling with quality oil
Operating tool
