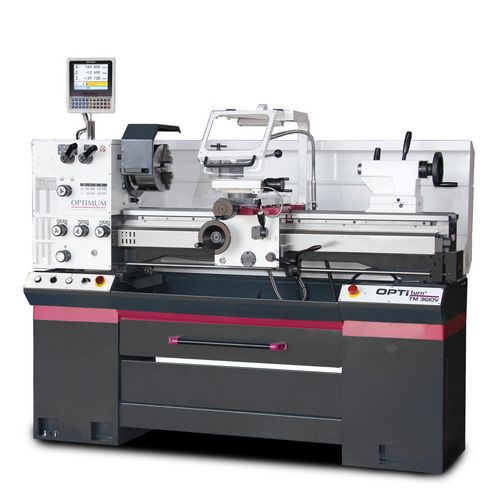

Drehmaschine
TM 3610V
The lead screw and feed screw lathes impress with their sturdy design and easy handling
12.060,00
EUR excl. Tax / pc(s).
14.351,40
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3403038
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Guaranteed concentricity of the spindle nose ≤ 0.015 mm
- Hardened and ground Z-axis guideway
- DC 24 volt electrics

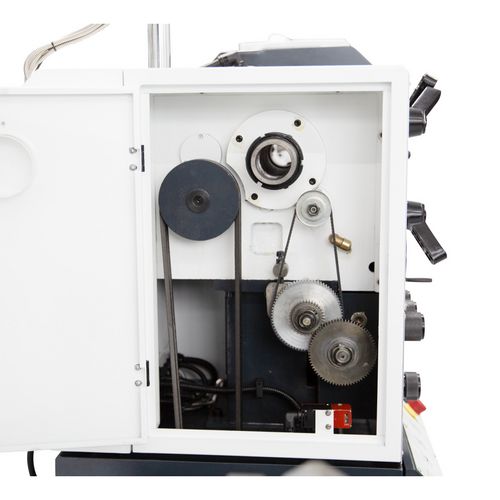

- All gear wheels of the feed gear made of steel, hardened and ground, shafts on needle bearings All components are lubricated in an oil bath
- Safety handwheels with disengagement function in the X and Z axes
- LED machine lamp in the chip guard
- Motor electrically braked
- With safety device to prevent simultaneous operation of tapping and feed mechanism
- Switch with life cycle calculation tested in accordance with EN ISO 13849
- Lead and feed screw cover
- Inductive position measuring system on the Z-axis
- Magnetic tape system on the x- and Z0-axis

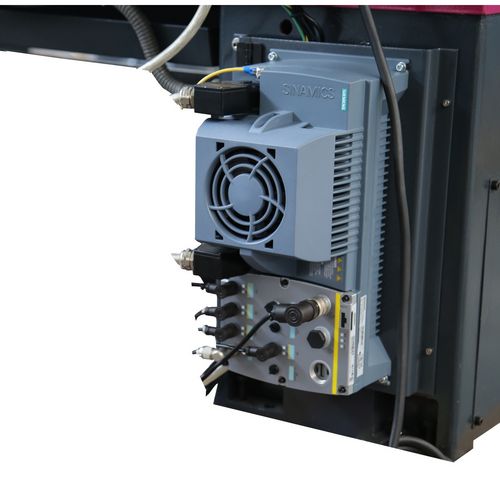

| Dimensions and weights | |
|---|---|
| Length approx. | 1964 mm |
| Width/depth approx. | 869 mm |
| Height approx. | 1475 mm |
| Weight approx. | 608 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 3 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Feed | |
|---|---|
| Flat feed range | 0.052 – 1.392 mm/rev |
| Number of flat feeds | 32 |
| Pitches | |
|---|---|
| Metric pitch | 0.4 – 7 mm/rev |
| Number of metric pitches | 26 |
| Speed range | |
|---|---|
| Number of gears | 4 Steps |
| Speed range | 40 – 3000 min¯¹ |
| Speed control | Electronical |
| Spindle | |
|---|---|
| Spindle chuck | Camlock DIN ISO 702-2 No. 5 |
| Spindle bore/rod passage diameter | 52 mm |
| Spindle cone | MT 6 |
| Travel | |
|---|---|
| Travel upper slide | 100 mm |
| Travel cross slide | 170 mm |
| Work areas | |
|---|---|
| Max. height | 180 mm |
| Max. width | 1000 mm |
| Swing diameter above machine bed | 360 mm |
| Swing diameter above planing slide | 225 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Three-jaw lathe chuck Ø 200 mm Camlock no. 5
- Fixed steady rest Ø 7 - Ø 102 mm
- Rotating steady rest Ø 10 - Ø 60 mm
- LED machine light
- Adapter MK 6-MK 4
- Non-rotating center point MK4
- Quick-change steel holder SWH 3-E
- Steel holder 20 x 100 type D for square chisel 18 mm
- Initial machine filling with quality oil
- Operating tool
