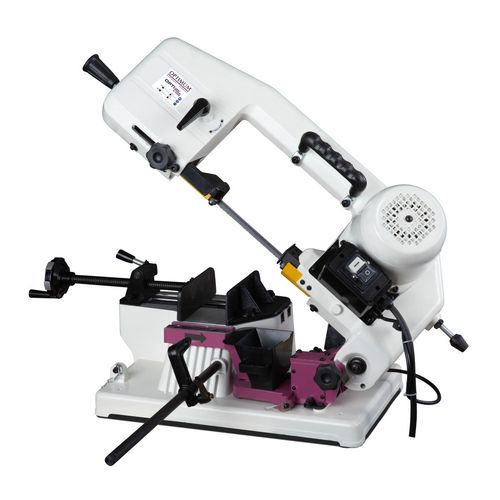

    Productimage for OPTIsaw S 100G
    Brandimage to Product OPTIsaw S 100G

    Metal band saw

    OPTIsaw S 100G

    Light and handy. Ideal for universal use on construction sites, assembly, in the customer service car, in the workshop, in the hobby room and in agriculture

    625,00 EUR excl. Tax / pc(s).
    743,75 EUR incl. 19% Tax / pc(s).
    Promotional price *
    599,00 EUR excl. Tax / pc(s).
    712,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3184230

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Quick clamping vice for fast workpiece clamping
    • Saw bow can be swivelled from 0° to 45°, to enable angular saw cuts
    • Good readable scale for angle adjustment
    • Microswitch for automatic limit switch
    • Automatic lowering of the saw bow via three-stage adjustable saw bow lowering pressure
    • Serially with high-quality bi-metal saw band
    • Large, handy handle and low weight enable problem-free transport to the construction site
    • Adjustable material stop for serial work
    • Completely equipped, enabling the user to work productively immediately after commissioning
    • Transport security



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Cutting ranges
    0° round (full material)100 mm
    0° quadratic (full material)100 mm
    0° rectangle upright (full material)100 x 150 mm
    +45° round (full material)65 mm
    +45° quadratic (full material)60 mm
    +45° rectangle upright (full material)60 x 100 mm
    Dimensions and weights
    Max. width/depth660 mm
    Length approx.800 mm
    Width/depth approx.300 mm
    Height approx.805 mm
    Weight approx.27,5 kg
    Electrical Data
    Drive motor output0.37 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Machine data
    Saw band speed(s)49 m/min
    Saw band length1470 mm
    Saw band width13 mm
    Saw band thickness0,65 mm
    Cutting angle from to0 45 °
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Material stop
    • Operating tool
    • Bi-Metal band saw blade
