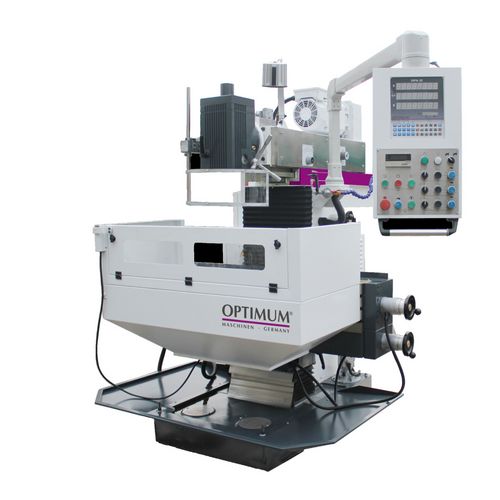

    Productimage for OPTImill MX 2
    Brandimage to Product OPTImill MX 2

    drilling-milling machine

    OPTImill MX 2

    With digital 3-axis position indicator DPA

    28.600,00 EUR excl. Tax / pc(s).
    34.034,00 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Art.-No. 3343020

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Versatile range of applications
    • Robust machine construction
    • All guides hardened
    • Central lubrication
    • Handwheel with large diameter and scale
    • Simple operation of the switching elements for changing the speed
    • Adjustable dovetail guides in all 3 axes
    • Extremely quiet operation due to gearbox running in an oil bath
    • Automatic table feed in the X-Y and Z axes



    Data sheets
    Sicherheits- und Warnhinweise
    Dimensions and weights
    Length approx.1900 mm
    Width/depth approx.1650 mm
    Height approx.1882 mm
    Weight approx.1500 kg
    Drive speed feed
    X axis10 – 1000 min¯¹
    Electrical Data
    Drive motor output3.7 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Milling table horizontal
    Table length750 mm
    Table width320 mm
    Max. load bearing capacity160 kg
    Milling table vertical
    length890 mm
    width225 mm
    T-groove size14 mm
    T-groove number5
    T-groove spacing63 mm
    Travel
    X axis manual405 mm
    Y axis manual305 mm
    Z axis manual400 mm
    Vertical spindle
    Spindle chuckISO 40 DIN 2080
    Speed range40 – 2000 min¯¹
    Number of gears2
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Reducing sleeve MK1 / MK 2 / MK 3
    • Operating tool
    • Milling spindle Horizontal milling Ø 16 mm / 22 mm / 27 mm / 32 mm
