    5. OPTImill MX 3

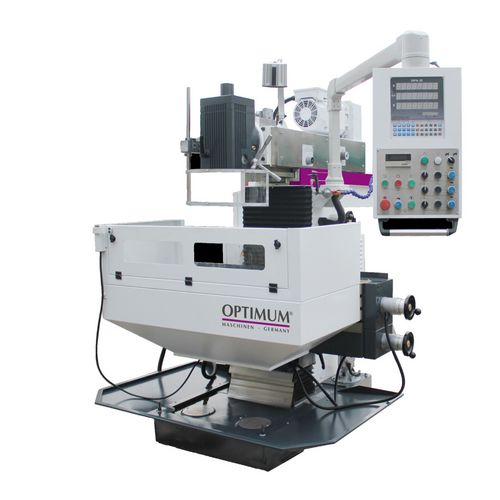

    Productimage for OPTImill MX 3
    Brandimage to Product OPTImill MX 3

    drilling-milling machine

    OPTImill MX 3

    30.750,00 EUR excl. Tax / pc(s).
    36.592,50 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Art.-No. 3343030

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    Data sheets
    Sicherheits- und Warnhinweise
    Dimensions and weights
    Length approx.1950 mm
    Width/depth approx.1700 mm
    Height approx.1882 mm
    Weight approx.1550 kg
    Drive speed feed
    X axis10 – 1000 min¯¹
    Electrical Data
    Drive motor output3.7 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Milling table horizontal
    Table length800 mm
    Table width400 mm
    Max. load bearing capacity200 kg
    Milling table vertical
    length1020 mm
    width225 mm
    T-groove size14 mm
    T-groove number6
    T-groove spacing63 mm
    Travel
    X axis manual500 mm
    Y axis manual400 mm
    Z axis manual400 mm
    Vertical spindle
    Spindle chuckISO 40 DIN 2080
    Speed range40 – 2000 min¯¹
    Number of gears2
    VPE1
    Unit: pc(s).
    Packaging unit: 1
