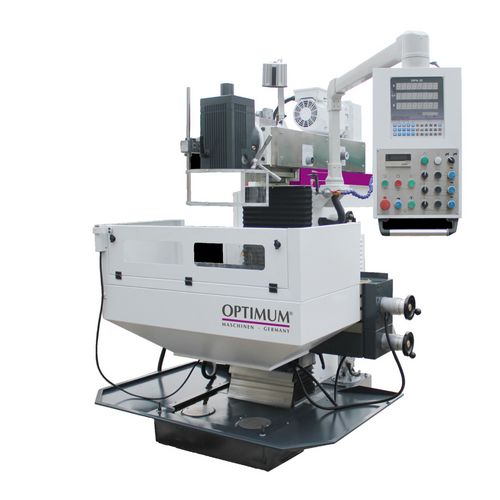

    Productimage for OPTImill MX 4
    Brandimage to Product OPTImill MX 4

    drilling-milling machine

    OPTImill MX 4

    32.790,00 EUR excl. Tax / pc(s).
    39.020,10 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Art.-No. 3343040

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    Data sheets
    Sicherheits- und Warnhinweise
    Dimensions and weights
    Length approx.2200 mm
    Width/depth approx.1900 mm
    Height approx.2000 mm
    Weight approx.1800 kg
    Drive speed feed
    X axis10 – 1000 min¯¹
    Electrical Data
    Drive motor output5.5 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Milling table horizontal
    Table length850 mm
    Table width450 mm
    Max. load bearing capacity300 kg
    Milling table vertical
    length1190 mm
    width250 mm
    T-groove size14 mm
    T-groove number7
    T-groove spacing63 mm
    Travel
    X axis manual600 mm
    Y axis manual450 mm
    Z axis manual450 mm
    Vertical spindle
    Spindle chuckISO 40 DIN 2080
    Speed range40 – 2000 min¯¹
    Number of gears2
    VPE1
    Unit: pc(s).
    Packaging unit: 1
