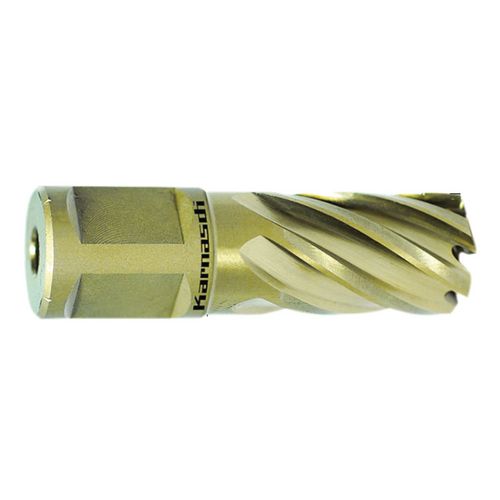

Core drill

Core drill

From 19,90 EUR excl. Tax / pc(s).
From 23,68 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Are you interested in this product?

Put a request

Find Trader

Variations

		General		Price
Title	Art.-No.	Drilling diameter (mm)	VPE	EUR excl. Tax	EUR incl. 19% Tax
GOLD-LINE 30 Weldon, Ø 12 mm	38720.1260U12	12	1	19,90	23,68
GOLD-LINE 30 Weldon, Ø 13 mm	38720.1260U13	13	1	19,90	23,68
GOLD-LINE 30 Weldon, Ø 14 mm	38720.1260U14	14	1	20,50	24,40
GOLD-LINE 30 Weldon, Ø 15 mm	38720.1260U15	15	1	20,50	24,40
GOLD-LINE 30 Weldon, Ø 16 mm	38720.1260U16	16	1	22,10	26,30
GOLD-LINE 30 Weldon, Ø 17 mm	38720.1260U17	17	1	22,10	26,30
GOLD-LINE 30 Weldon, Ø 18 mm	38720.1260U18	18	1	23,10	27,49
GOLD-LINE 30 Weldon, Ø 19 mm	38720.1260U19	19	1	23,10	27,49
GOLD-LINE 30 Weldon, Ø 20 mm	38720.1260U20	20	1	24,80	29,51
GOLD-LINE 30 Weldon, Ø 21 mm	38720.1260U21	21	1	24,80	29,51
GOLD-LINE 30 Weldon, Ø 22 mm	38720.1260U22	22	1	29,40	34,99
GOLD-LINE 30 Weldon, Ø 23 mm	38720.1260U23	23	1	29,40	34,99
GOLD-LINE 30 Weldon, Ø 24 mm	38720.1260U24	24	1	30,50	36,30
GOLD-LINE 30 Weldon, Ø 25 mm	38720.1260U25	25	1	30,50	36,30
GOLD-LINE 30 Weldon, Ø 26 mm	38720.1260U26	26	1	32,40	38,56
GOLD-LINE 30 Weldon, Ø 27 mm	38720.1260U27	27	1	32,40	38,56
GOLD-LINE 30 Weldon, Ø 28 mm	38720.1260U28	28	1	35,90	42,72
GOLD-LINE 30 Weldon, Ø 29 mm	38720.1260U29	29	1	35,90	42,72
GOLD-LINE 30 Weldon, Ø 30 mm	38720.1260U30	30	1	37,60	44,74
GOLD-LINE 30 Weldon, Ø 31 mm	38720.1260U31	31	1	37,60	44,74
GOLD-LINE 30 Weldon, Ø 32 mm	38720.1260U32	32	1	39,40	46,89
GOLD-LINE 30 Weldon, Ø 33 mm	38720.1260U33	33	1	39,40	46,89
GOLD-LINE 30 Weldon, Ø 34 mm	38720.1260U34	34	1	41,50	49,39
GOLD-LINE 30 Weldon, Ø 35 mm	38720.1260U35	35	1	41,50	49,39
GOLD-LINE 30 Weldon, Ø 36 mm	38720.1260U36	36	1	46,90	55,81
GOLD-LINE 30 Weldon, Ø 37 mm	38720.1260U37	37	1	48,80	58,07
GOLD-LINE 30 Weldon, Ø 38 mm	38720.1260U38	38	1	52,40	62,36
GOLD-LINE 30 Weldon, Ø 39 mm	38720.1260U39	39	1	52,40	62,36
GOLD-LINE 30 Weldon, Ø 40 mm	38720.1260U40	40	1	57,40	68,31
GOLD-LINE 30 Weldon, Ø 41 mm	38720.1260U41	41	1	57,40	68,31
GOLD-LINE 30 Weldon, Ø 42 mm	38720.1260U42	42	1	61,90	73,66
GOLD-LINE 30 Weldon, Ø 43 mm	38720.1260U43	43	1	61,90	73,66
GOLD-LINE 30 Weldon, Ø 44 mm	38720.1260U44	44	1	67,90	80,80
GOLD-LINE 30 Weldon, Ø 45 mm	38720.1260U45	45	1	67,90	80,80
GOLD-LINE 30 Weldon, Ø 46 mm	38720.1260U46	46	1	73,00	86,87
GOLD-LINE 30 Weldon, Ø 47 mm	38720.1260U47	47	1	73,00	86,87
GOLD-LINE 30 Weldon, Ø 48 mm	38720.1260U48	48	1	77,00	91,63
GOLD-LINE 30 Weldon, Ø 49 mm	38720.1260U49	49	1	77,00	91,63
GOLD-LINE 30 Weldon, Ø 50 mm	38720.1260U50	50	1	82,30	97,94
GOLD-LINE 30 Weldon, Ø 51 mm	38720.1260U51	51	1	82,30	97,94
GOLD-LINE 30 Weldon, Ø 52 mm	38720.1260U52	52	1	89,30	106,27
GOLD-LINE 30 Weldon, Ø 53 mm	38720.1260U53	53	1	92,00	109,48
GOLD-LINE 30 Weldon, Ø 54 mm	38720.1260U54	54	1	94,90	112,93
GOLD-LINE 30 Weldon, Ø 55 mm	38720.1260U55	55	1	97,30	115,79
GOLD-LINE 30 Weldon, Ø 56 mm	38720.1260U56	56	1	100,80	119,95
GOLD-LINE 30 Weldon, Ø 57 mm	38720.1260U57	57	1	104,30	124,12
GOLD-LINE 30 Weldon, Ø 58 mm	38720.1260U58	58	1	106,80	127,09
GOLD-LINE 30 Weldon, Ø 59 mm	38720.1260U59	59	1	110,30	131,26
GOLD-LINE 30 Weldon, Ø 60 mm	38720.1260U60	60	1	113,50	135,07

Select Attributes

General

Drilling diameter
VPE

Price

excl. Tax
incl. 19% Tax

Productdetails

Core drill optimally suited for:

Steel < 500 N
Steel < 750 Nm
Plastics GFK / CFK

Good for:

Steel < 900 N
Alu < 10% Si
Copper, brass, nickel, tin
cast iron

Use possible with:

Steel < 1100 N
Alu>10% Si

Properties of the GOLD-LINE core drills:
HSS-XE special steel

Made of high-alloy HSS-XE special steel
Thus extreme hardness at the tooth tips (up to 68 HRC)
Long service life

Step hardened HSS core drill

Standard hardened HSS core drills in stages
As a result extremely hard tooth tips (68 HRC) and still flexible core drill

Completely sanded from the full material

This fine grinding increases the cutting performance while reducing friction
For more service life

Gold-Tech surface treatment

Special treatment for longer service life

Five cutting geometries

Specially adapted cutting geometries especially for the different diameters and cutting depths

Suitable for core drills:
Metallkraft, Alfra-Rotabest + Alfra Rota-Quick, BDS + BDS Keyless, Bektop, Bux, Euroboor, Evolution, Hougen, Jancy, Magbroach, Magtron, Magnetor, Promag, Rotabroach, Ruko + Ruko Easy Lock, Universal ...

Tool holder	Weldon
Holder, in metric sizes	19 mm
Holder, in inch sizes	3/4 "
Drilling depth	30 mm

Unit: pc(s).
