    Brandimage to Product KE 16-2

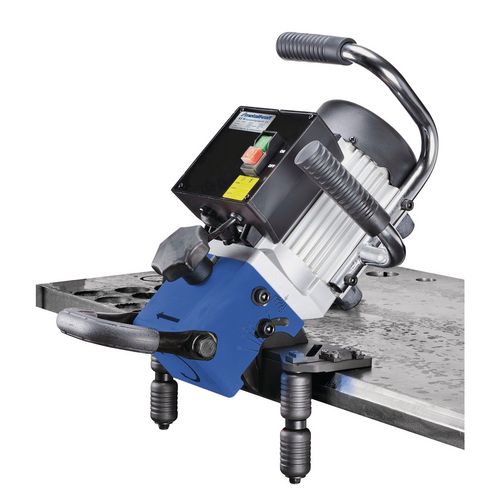

    Edge deburrer

    KE 16-2

    For visible edges and weld preparation with stepless angle adjustment of 15 - 60 °.

    1.529,00 EUR excl. Tax / pc(s).
    1.819,51 EUR incl. 19% Tax / pc(s).
    Promotional price *
    1.329,00 EUR excl. Tax / pc(s).
    1.581,51 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2026 in Germany.

    Art.-No. 3990017

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Excellent for producing clean visible edges and weld preparation
    • For machining steel and aluminum

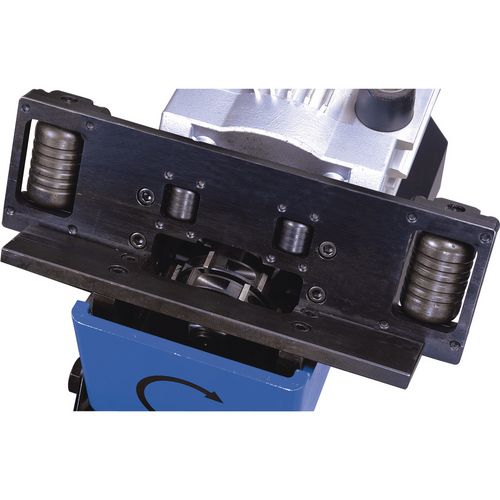

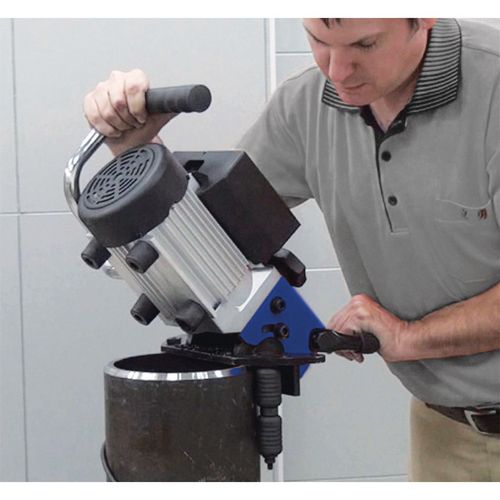

    • Due to adjustable guide rollers on the support table also suitable for deburring of tubes with Ø 150 - 350 mm (optional 300 - 600 mm)

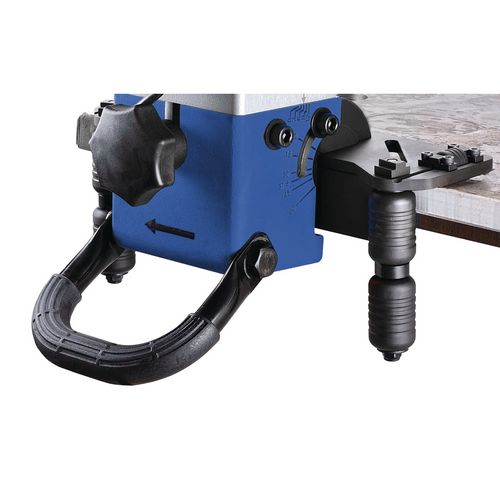

    • Setting the chamfer height without tools
    • Stepless angle adjustment from 0 - 60 °
    • Handy and powerful device
    • With two 6-way insert holders
    • Feed is done manually



    Chamfer angle0/15/30 / 37.5 / 45/60 °
    Chamfer width at 0° 21 mm
    Chamfer width at 15° 15.7 mm
    Chamfer width at 30° 16.7 mm
    Chamfer width at 37.5° 17.8 mm
    Chamfer width at 45° 20 mm
    Chamfer width at 60° 18 mm
    Pipe diameter150 – 350 (Optional 300 – 600) mm
    Speed(s)3000 min¯¹
    VPE1
    Dimensions and weights
    Length approx.503 mm
    Width/depth approx.350 mm
    Height approx.248 mm
    Weight approx.20.1 kg
    Electrical Data
    Drive motor output1,1 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • Plastic case
    • 2x 6-times insert holder
    • 1x insert set consisting of 12 inserts
    • 1x tool set
    • 1x front handle
