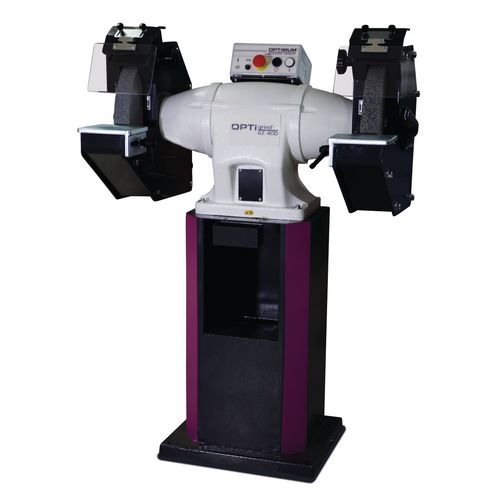

OPTIgrind GZ 40D

PREMIUM Industry - Extremely robust and stable

5.155,00 EUR excl. Tax / pc(s).
6.134,45 EUR incl. 19% Tax / pc(s).

Promotional price *

4.149,00 EUR excl. Tax / pc(s).
4.937,31 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 3091025

Are you interested in this product?

Put a request

Find Trader

Productdetails

Suitable for intensive use in industry
Heavy industrial grinding machine absorbs the already low vibrations due to high self-weight
Suitable even with very strong shear forces on the grinding wheels
Maintenance-free, long-lasting induction motor with smooth running
Cast iron housing

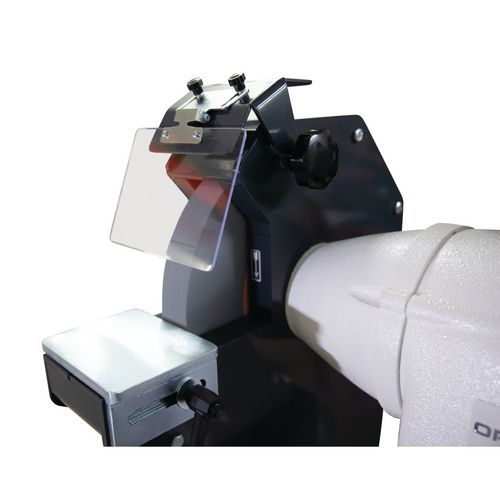

Spark protection
Stable, movable workpiece support
Grinding wheels not included in the standard scope of delivery

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Dimensions and weights
Length approx.	980 mm
Width/depth approx.	600 mm
Height approx.	660 mm
Weight approx.	168 kg

Electrical Data
Drive motor output	4.4 kW
Supply voltage	400 V
Mains frequency	50 Hz

Grinding wheel(s)
External diameter	400 mm
Width	50 mm
Drill hole	40 mm
Speed	1400 min¯¹

Sanding attachment

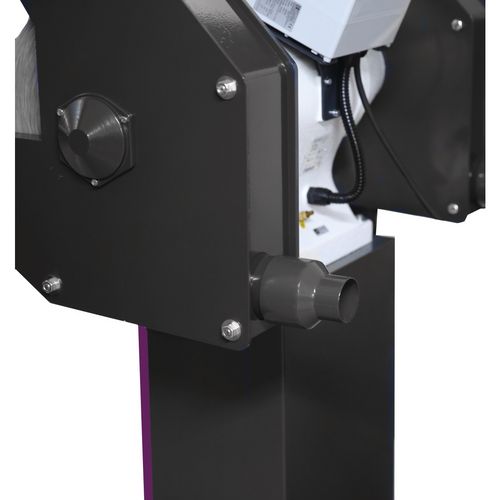

Extraction duct nominal width	90 mm

VPE

Unit: pc(s).
Packaging unit: 1
