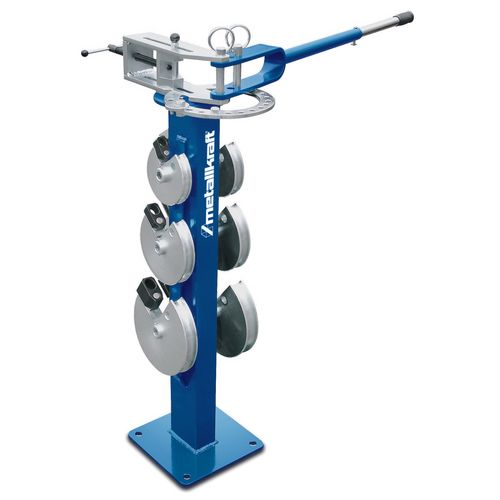

    Mobile pipe bending machine

    RB 30

    For cold bending of thin-walled pipes made of brass, copper, steel and other materials

    1.149,00 EUR excl. Tax / pc(s).
    1.367,31 EUR incl. 19% Tax / pc(s).
    Promotional price *
    1.049,00 EUR excl. Tax / pc(s).
    1.248,31 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3776030

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Simple cold bending of thin-walled pipes without support elements
    • For bending simple and complex shapes
    • Extendable handle for greater leverage
    • Easy to transport, ideal for workshop, on assembly and in service trolley
    • Removable bending unit, with optional clamping plate, thus also usable on vice
    • With screw-on base for the workshop
    • More bending segments
    • Quality Made in Europe



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Pipe diameter metric25 mm
    Wall thickness(es)2 mm
    Min. bending radii4 x Ø of the pipe, 56 – 100 mm
    VPE1
    Bending performance
    Pipe round steel/aluminium/copper25 x 2 mm
    Pipe round stainless steel22 x 2 mm
    Pipe square steel/aluminium/copper20 x 20 x 2 mm
    Pipe square stainless steel20 x 20 x 2 mm
    Dimensions and weights
    Explanation about DimensionsRequired working area: approx. 3000 x 3000 mm
    Length approx.1300 mm
    Width/depth approx.560 mm
    Height approx.1000 mm
    Unit: pc(s).
    Packaging unit: 1

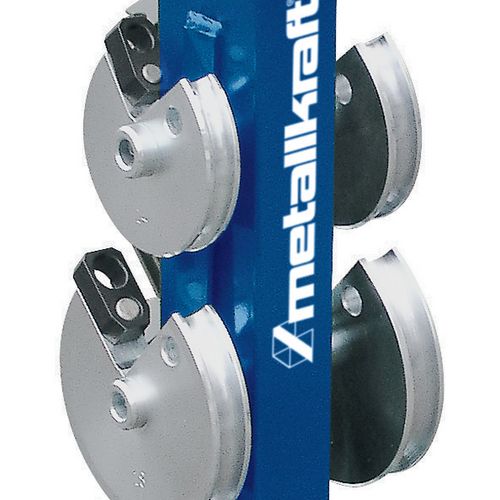

    6 piece bending segments:

    • Ø 14 mm, bending radius 56 mm
    • Ø 16 mm, bending radius 64 mm
    • Ø 18 mm, bending radius 72 mm
    • Ø 20 mm, bending radius 80 mm
    • Ø 22 mm, bending radius 88 mm
    • Ø 25 mm, bending radius 100 mm
