    Brandimage to Product ULMS 600

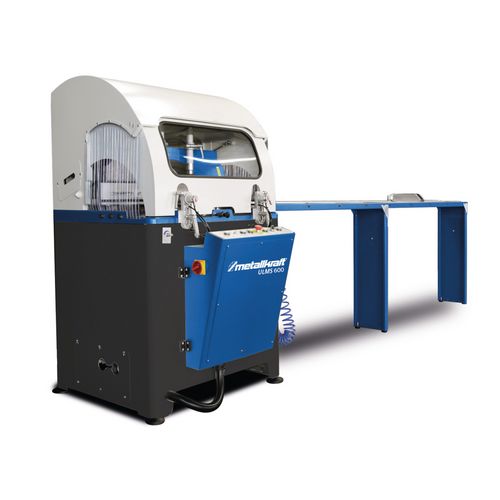

    Underfloor alloy circular saw

    ULMS 600

    Automatic model with rising saw blade

    13.550,00 EUR excl. Tax / pc(s).
    16.124,50 EUR incl. 19% Tax / pc(s).
    Promotional price *
    12.599,00 EUR excl. Tax / pc(s).
    14.992,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Sicherheitsdatenblatt

    Safety and warning notices

    Art.-No. 3627600

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • For cutting aluminum, light metal alloys, thermosetting plastics and wood
    • For mitre cuts from -45 to +45 degrees
    • Infinitely adjustable saw blade feed
    • Pneumatic vertical and horizontal clamping using 4 clamping vices
    • Starting the sawing process with two-hand control
    • Integrated minimum quantity lubrication
    • High work safety due to sawing process with closed hood (equipped with contact switch)
    • Simple mitre adjustment thanks to bearing-mounted turntable



    Data sheets
    Sicherheits- und Warnhinweise
    Sicherheitsdatenblatt
    Safety and warning notices
    Saw blade speed(s)2193 min¯¹
    Saw blade diameter600 mm
    Saw blade bore from to30 – 32 mm
    Miter angle-67.5 / -45 / -30 / -22.5 / - 15 / 0 / 15 / 22,5 / 30 / 45 / 67.5 °
    Exhaust connector diameter2 x 100 mm
    VPE1
    Cutting capacity
    0° (square) solid material195 x 195 mm
    -45° (square) solid material180 x 180 mm
    +45° (square) solid material180 x 180 mm
    Dimensions and weights
    Working height1015 – 1030 mm
    Length approx.945 mm
    Width/depth approx.1230 mm
    Height approx.1675 mm
    Weight approx.331 kg
    Electrical Data
    Drive motor output3.0 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Pneumatic connection
    Air consumption approx.58 l/min
    Pneumatic operating pressure6 – 8 bar
    Standards and certifications
    EMV classA
    Unit: pc(s).
    Packaging unit: 1

    • 2 x Saw blade 600 x 30 x 4 mm Z 144
    • Operating tool
    • Coolant tank
    • Pneumatic gun and spiral hose
