| Max. passageway between top + bottom beam | 100 mm |
| Max. bending angle | 135 ° |

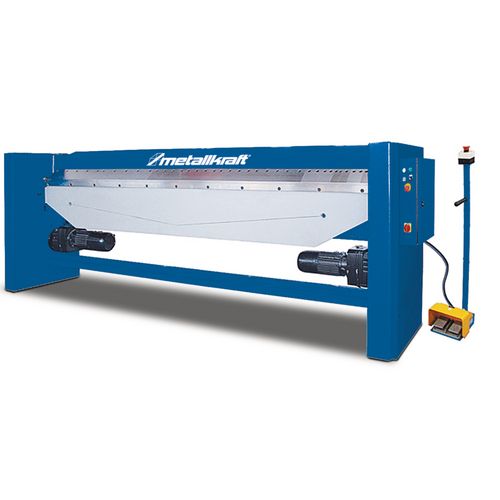

Motorized swing bending machine
MSBM C S for sheet thickness steel up to 1.5 mm
Heavy version with motor drive of the upper and bending beam and segmented upper beam
From
9.590,00
EUR excl. Tax / pc(s).
From 11.412,10 EUR incl. 19% Tax / pc(s).
From 11.412,10 EUR incl. 19% Tax / pc(s).
Promotional price *
From 8.399,00 EUR excl. Tax / pc(s).From 9.994,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Bending capacity | Dimensions and weights | Price | Promotional price * | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Max. working width (mm) | Segmentation (mm) | VPE | 400N/mm² (mm) | Stainless steel (mm) | Aluminium (mm) | Length approx. (mm) | Weight approx. (kg) | EUR excl. Tax | EUR incl. 19% Tax | EUR excl. Tax | EUR incl. 19% Tax | |
| MSBM 2020-15 C S | 3772940 | 2020 | 25-30-35-40-45-50-75-100-150-200-200-270-400-400 | 1 | 1.5 | 0.8 | 2.0 | 2680 | 965 | 8.399,00 | 9.994,81 | |||
| MSBM 2520-10 C S | 3772945 | 2520 | 25-30-35-40-45-50-75-100-100-150-200-200-270-400-400-400 | 1 | 1.0 | 0.5 | 1.5 | 3180 | 1310 | 10.299,00 | 12.255,81 | |||
Select Attributes
General
- Max. working width
- Segmentation
- VPE
Bending capacity
- 400N/mm²
- Stainless steel
- Aluminium
Dimensions and weights
- Length approx.
- Weight approx.
Price
- excl. Tax
- incl. 19% Tax
Promotional price
- excl. Tax
- incl. 19% Tax
Productdetails
- Foot control allows sheet positioning with both hands
- Workpiece clamping and bending are motorized via a chain drive
- Setting the bending angle manually, reading the angle on a scale ring
- Many bending options with segmented upper beam
- Accurate movement of the bending beam over large-dimensioned flat guides
- Heavy, robust welded construction
| Bending capacity | |
|---|---|
| Explanation stainless steel | For bending stainless steel the optional hardening of the tools is required |
| Dimensions and weights | |
|---|---|
| Width/depth approx. | 640 mm |
| Height approx. | 1100 mm |
| Electrical Data | |
|---|---|
| Beam motor intput | 0.55 kW |
| Bending motor input | 1 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
