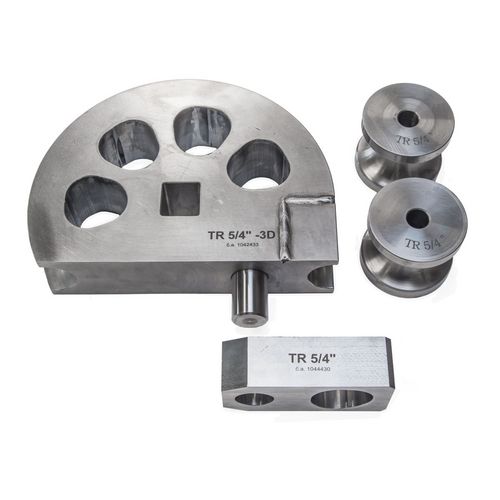

Bending segment
From 279,00
EUR excl. Tax / pc(s).
From 332,01
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Variations
| General | Price | ||||||
|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Tube diameter (mm) | Bending radius (mm) | VPE | EUR excl. Tax | EUR incl. 19% Tax | |
| 6 mm / R 30 mm | 4310080 | 6,0 | 30 | 1 | 279,00 | 332,01 | |
| 8 mm / R 30 mm | 4310081 | 8.0 | 30 | 1 | 279,00 | 332,01 | |
| 10 mm / R 30 mm | 4310082 | 10,0 | 30 | 1 | 279,00 | 332,01 | |
| 12 mm / R 36 mm | 4310083 | 12,0 | 36 | 1 | 279,00 | 332,01 | |
| 14 mm / R 42 mm | 4310084 | 14.0 | 42 | 1 | 279,00 | 332,01 | |
| 14 mm / R 56 mm | 4310085 | 14.0 | 56 | 1 | 299,00 | 355,81 | |
| 15 mm / R 45 mm | 4310086 | 15.0 | 45 | 1 | 279,00 | 332,01 | |
| 15 mm / R 60 mm | 4310087 | 15.0 | 60 | 1 | 299,00 | 355,81 | |
| 18 mm / R 54 mm | 4310090 | 18.0 | 54 | 1 | 299,00 | 355,81 | |
| 18 mm / R 72 mm | 4310091 | 18.0 | 72 | 1 | 330,00 | 392,70 | |
| 16 mm / R 48 mm | 4311000 | 16 | 48 | 1 | 279,00 | 332,01 | |
| 16 mm / R 64 mm | 4311001 | 16 | 64 | 1 | 290,00 | 345,10 | |
| 17.2 mm / R 51.6 mm | 4311002 | 17.2 | 51.6 | 1 | 279,00 | 332,01 | |
| 17.2 mm / R 68.8 mm | 4311003 | 17.2 | 68.8 | 1 | 299,00 | 355,81 | |
| 20 mm / R 60 mm | 4311004 | 20 | 60 | 1 | 290,00 | 345,10 | |
| 20 mm / R 80 mm | 4311005 | 20 | 80 | 1 | 330,00 | 392,70 | |
| 21.3 mm / R 63.9 mm | 4311006 | 21.3 | 63.9 | 1 | 309,00 | 367,71 | |
| 21.3 mm / R 85.2 mm | 4311007 | 21.3 | 85.2 | 1 | 360,00 | 428,40 | |
| 22 mm / R 66 mm | 4311008 | 22 | 66 | 1 | 309,00 | 367,71 | |
| 22 mm / R 88 mm | 4311009 | 22 | 88 | 1 | 395,00 | 470,05 | |
| 25 mm / R 75 mm | 4311010 | 25 | 75 | 1 | 335,00 | 398,65 | |
| 25 mm / R 100 mm | 4311011 | 25 | 100 | 1 | 440,00 | 523,60 | |
| 26.9 mm / R 80.7 mm | 4311012 | 26.9 | 80.7 | 1 | 350,00 | 416,50 | |
| 26.9 mm / R 107.6 mm | 4311013 | 26.9 | 107.6 | 1 | 469,00 | 558,11 | |
| 28 mm / R 84 mm | 4311014 | 28 | 84 | 1 | 350,00 | 416,50 | |
| 28 mm / R 112 mm | 4311015 | 28 | 112 | 1 | 479,00 | 570,01 | |
| 30 mm / R 90 mm | 4311016 | 30 | 90 | 1 | 409,00 | 486,71 | |
| 30 mm / R 120 mm | 4311017 | 30 | 120 | 1 | 525,00 | 624,75 | |
| 32 mm / R 96 mm | 4311018 | 32 | 96 | 1 | 495,00 | 589,05 | |
| 32 mm / R 128 mm | 4311019 | 32 | 128 | 1 | 595,00 | 708,05 | |
| 33.7 mm / R 101.1 mm | 4311020 | 33.7 | 101.1 | 1 | 469,00 | 558,11 | |
| 33.7 mm / R 134.8 mm | 4311021 | 33.7 | 134.8 | 1 | 575,00 | 684,25 | |
| 35 mm / R 105 mm | 4311022 | 35 | 105 | 1 | 490,00 | 583,10 | |
| 35 mm / R 140 mm | 4311023 | 35 | 140 | 1 | 589,00 | 700,91 | |
| 38 mm / R 114 mm | 4311024 | 38 | 114 | 1 | 585,00 | 696,15 | |
| 38 mm / R 152 mm | 4311025 | 38 | 152 | 1 | 615,00 | 731,85 | |
| 40 mm / R 120 mm | 4311026 | 40 | 120 | 1 | 575,00 | 684,25 | |
| 40 mm / R 160 mm | 4311027 | 40 | 160 | 1 | 699,00 | 831,81 | |
| 42 mm / R 126 mm | 4311028 | 42 | 126 | 1 | 595,00 | 708,05 | |
| 42 mm / R 168 mm | 4311029 | 42 | 168 | 1 | 805,00 | 957,95 | |
| 42.4 mm / R 127.2 mm | 4311030 | 42.4 | 127.2 | 1 | 599,00 | 712,81 | |
| 42.4 mm / R 169.6 mm | 4311031 | 42.4 | 169.6 | 1 | 799,00 | 950,81 | |
| 44.5 mm / R 133.5 mm | 4311032 | 44.5 | 133.5 | 1 | 645,00 | 767,55 | |
| 44.5 mm / R 178 mm | 4311033 | 44.5 | 178 | 1 | 875,00 | 1.041,25 | |
| 45 mm / R 135 mm | 4311034 | 45 | 135 | 1 | 709,00 | 843,71 | |
| 45 mm / R 180 mm | 4311035 | 45 | 180 | 1 | 875,00 | 1.041,25 | |
| 48 mm / R 144 mm | 4311036 | 48 | 144 | 1 | 685,00 | 815,15 | |
| 48 mm / R 192 mm | 4311037 | 48 | 192 | 1 | 949,00 | 1.129,31 | |
| 48.3 mm / R 144.9 mm | 4311038 | 48.3 | 144.9 | 1 | 675,00 | 803,25 | |
| 48.3 mm / R 193.2 mm | 4311039 | 48.3 | 193.2 | 1 | 940,00 | 1.118,60 | |
| 50 mm / R 150 mm | 4311040 | 50 | 150 | 1 | 900,00 | 1.071,00 | |
| 50 mm / R 200 mm | 4311041 | 50 | 200 | 1 | 1.225,00 | 1.457,75 | |
Select Attributes
- Tube diameter
- Bending radius
- VPE
- excl. Tax
- incl. 19% Tax
Productdetails
Bending tool sets for other diamters are available on request.
