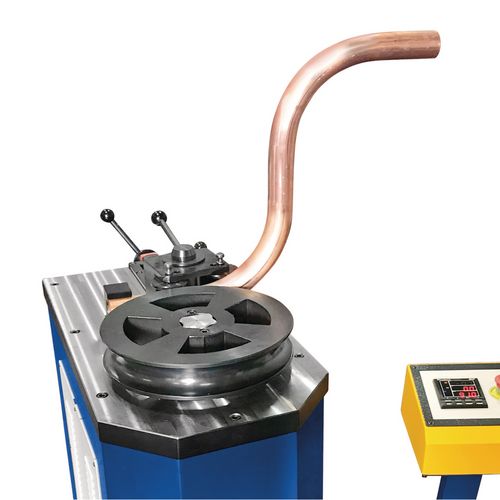

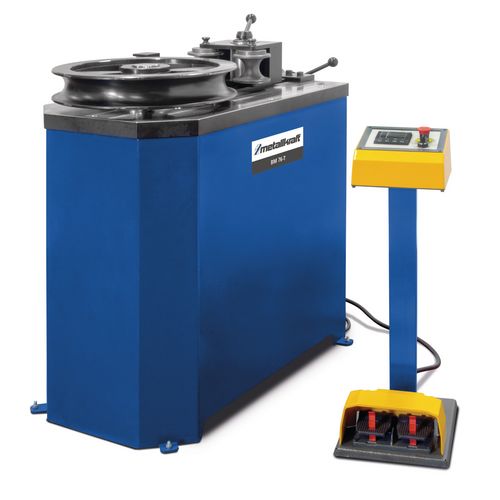

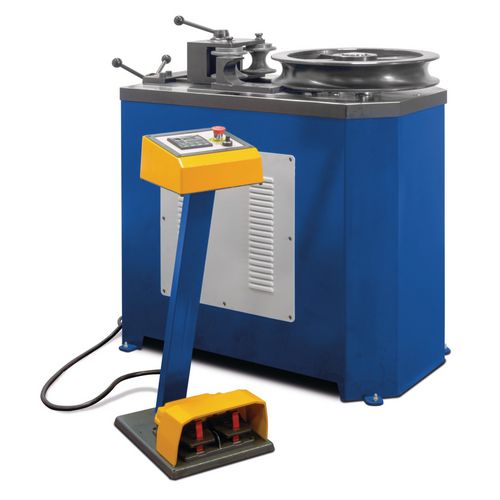

Mandrelless tube bending machine
BM 76-T
NC-controlled with a powerful motor for high torque
14.300,00
EUR excl. Tax / pc(s).
17.017,00 EUR incl. 19% Tax / pc(s).
17.017,00 EUR incl. 19% Tax / pc(s).
Promotional price *
12.599,00 EUR excl. Tax / pc(s).14.992,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 4320076
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Powerful motor with inverter and reduction gear produces high torque
- NC control for setting the bending angle and the correction
- counter for high repeatability
- Mobile control panel with controls and pedals
- Fast tool change
- All shafts hardened and ground
- Material clamping is done manually
- Very good price / performance ratio </ ul>
- NC control for setting the bending angle and the correction
- counter for high repeatability
- Mobile control panel with controls and pedals
- Fast tool change
| Type | Stationary |
| Max. bending radius | 470 mm |
| Max. bending angle | 180 ° |
| Bending speeds | 3 U/min |
| Torque | 11500 Nm |
| VPE | 1 |
| Bending performance | |
|---|---|
| Bending performance tubular material 420 N/mm² (Ø x wall thickness) | 76 x 4 mm |
| Bending performance tubular material 350 N/mm² (Ø x wall thickness) | 76 x 3.5 mm |
| Bending performance tubular material 650 N/mm² (Ø x wall thickness) | 60 x 4 mm |
| Bending performance solid material 420 N/mm² (Ø) | 40 mm |
| Dimensions and weights | |
|---|---|
| Bending head height | 80 mm |
| Length approx. | 1050 mm |
| Width/depth approx. | 580 mm |
| Height approx. | 1060 mm |
| Weight approx. | 650 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 4 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
