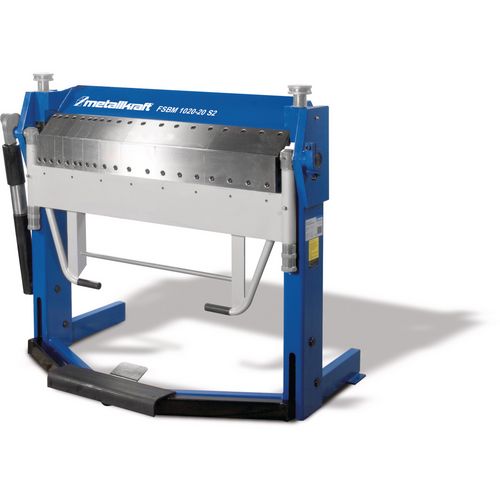

    Productimage for FSBM 1020-20 S2
    Brandimage to Product FSBM 1020-20 S2

    Manual swing bending machine

    FSBM 1020-20 S2

    With workpiece clamp by foot pedal

    2.059,00 EUR excl. Tax / pc(s).
    2.450,21 EUR incl. 19% Tax / pc(s).
    Promotional price *
    1.779,00 EUR excl. Tax / pc(s).
    2.117,01 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2024 in Germany.

    Art.-No. 3772102

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • The workpiece clamping by means of foot pedal thereby both hands remain free for the material supply
    • Different tool variants available E, S2, HS2 and HSG
    • The powerful auxiliary cylinder facilitates bending
    • Next passage between top and bottom cheek of up to 25 mm
    • Self-lubricating plain bearings
    • Clamping pressure of the upper beam via non-slip thumbscrews easily adjustable
    • Adjustment of material thickness by means of knurled screw
    • Adjustable stop for bending angle

    Equipment details:

    FSBM 1270-20 E

    • With segmented sharp-bending tools, continuous bending strip and continuous bed support

    FSBM 1020-20 S2

    • With segmented sharpening tools, segmented bending strip and continuous bed support

    FSBM 1020-20 HSG

    • With segmented gooseneck tools, segmented bending bar and segmented bed support
    • Segments have a hardness of HRC24-26

    Note on technical data:

    • Sheet thickness max.: Performance data based on material with tensile strength 400 N/mm²
    • Bending capacity VA: factor 0.75
    • Bending capacity aluminum: factor 1.2
    • Hardened top tools are required to bend VA



    Max. working width1020 mm
    Max. bending angle135 °
    Segmentation25-30-35-40-45-50-75-100-150-200-270 mm
    VPE1
    Bending capacity
    235N/mm²2.0 mm
    Stainless steel1.2 mm
    Explanation stainless steelHardened top tools are required to bend VA
    Aluminium2.4 mm
    Dimensions and weights
    Length approx.1350 mm
    Width/depth approx.800 mm
    Height approx.1130 mm
    Weight approx.325 kg
    Unit: pc(s).
    Packaging unit: 1







    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.

    Optional parts

    Optional parts can not be retrofitted and are available only when ordering new machines.
