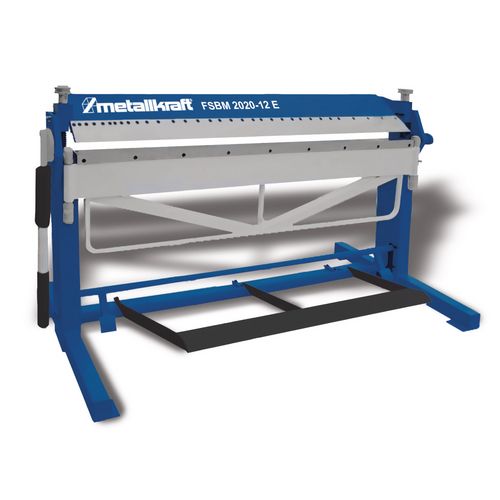

FSBM 2020-12 E

With workpiece clamp by foot pedal

3.899,00 EUR excl. Tax / pc(s).
4.639,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 3772130

Are you interested in this product?

Put a request

Find Trader

Productdetails

The workpiece clamping by means of foot pedal thereby both hands remain free for the material supply
Different tool variants available E, S2, HS2 and HSG
The powerful auxiliary cylinder facilitates bending
Next passage between top and bottom cheek of up to 25 mm
Self-lubricating plain bearings
Clamping pressure of the upper beam via non-slip thumbscrews easily adjustable
Adjustment of material thickness by means of knurled screw
Adjustable stop for bending angle

Equipment details:

FSBM 1270-20 E

With segmented sharp-bending tools, continuous bending strip and continuous bed support

FSBM 1020-20 S2

With segmented sharpening tools, segmented bending strip and continuous bed support

FSBM 1020-20 HSG

With segmented gooseneck tools, segmented bending bar and segmented bed support
Segments have a hardness of HRC24-26

Note on technical data:

Sheet thickness max.: Performance data based on material with tensile strength 400 N/mm²
Bending capacity VA: factor 0.75
Bending capacity aluminum: factor 1.2
Hardened top tools are required to bend VA

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Max. working width	2020 mm
Max. bending angle	135 °
Segmentation	25-30-35-40-45-50-75-100-150-200-250-250-270-500 mm
VPE	1

Bending capacity
235 N/mm²	1.2 mm
Stainless steel	0.7 mm
Explanation bending capacity 700 N/mm²	Hardened upper tools are required for bending VA
Aluminium	1.4 mm

Dimensions and weights
Length approx.	2290 mm
Width/depth approx.	820 mm
Height approx.	1180 mm
Weight approx.	540 kg

Unit: pc(s).
Packaging unit: 1
