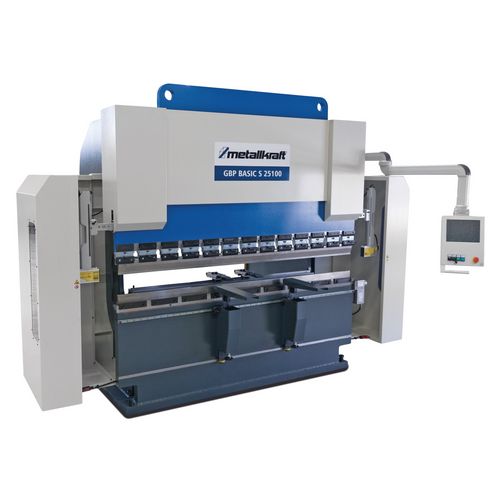

Standard version:

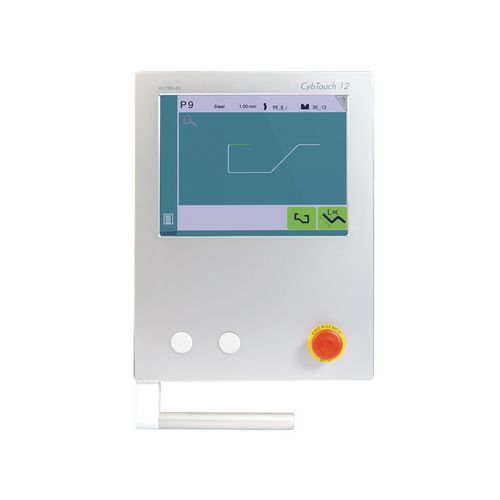

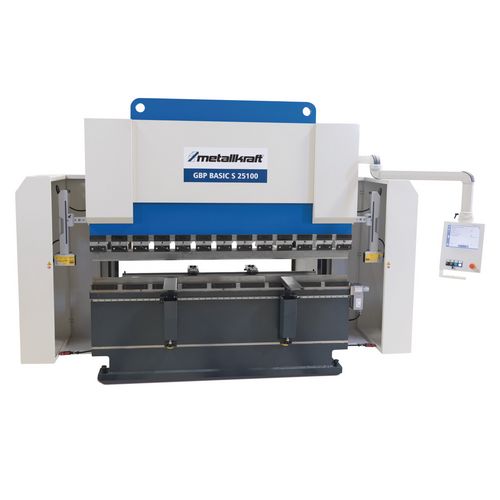

- Touch screen CNC control CybTouch 12 with 2D color interface and bending sequence calculation.

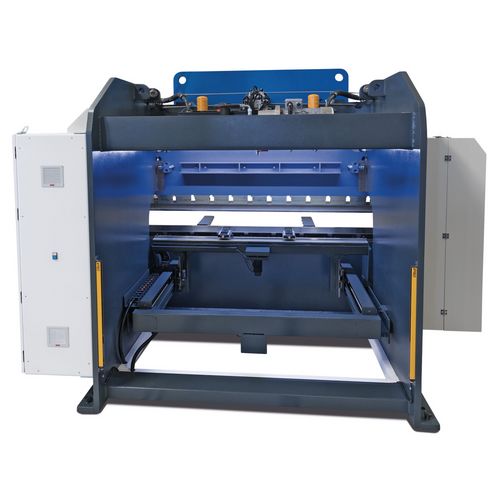

- CNC-controlled, motorized X-axis, guided on linear rails - driven by recirculating ball screws

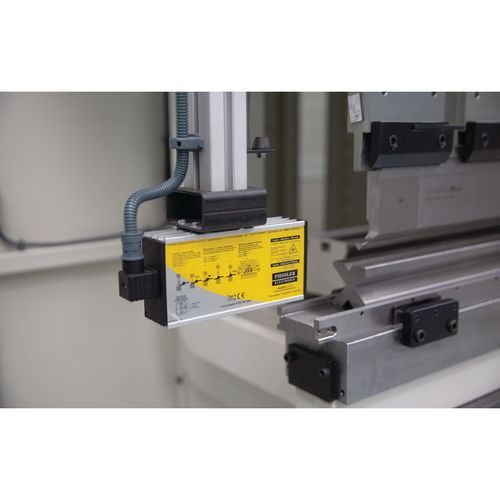

- Safety devices FIESSLER Akas II and FMSC
- Backspace protection by means of light barrier

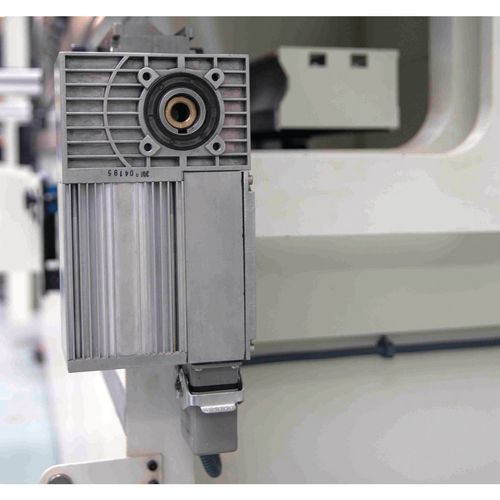

- CNC-controlled, motorized table crowning
- Manual height adjustment of the stop fingers (R-axis)
- Manual lateral adjustment of the stop fingers (Z-axis) on linear rail

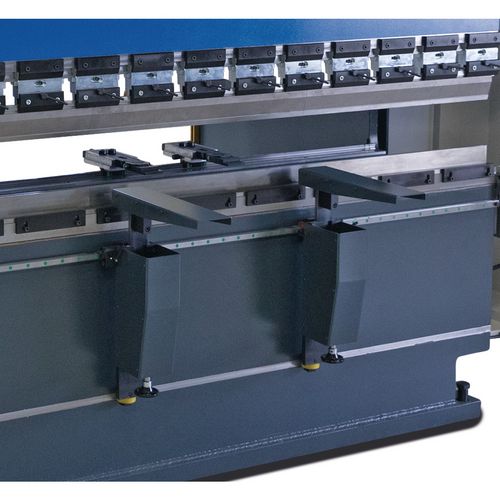

- Two front support arms adjustable on linear rail

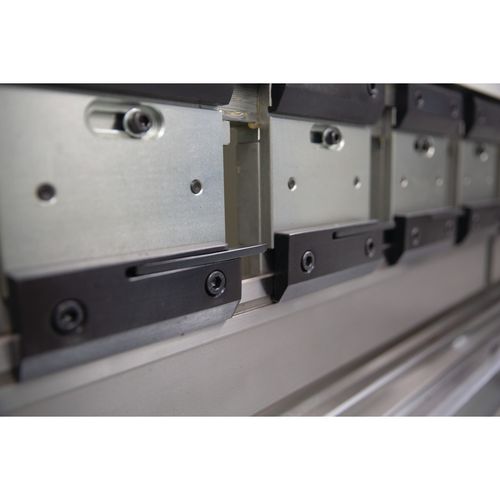

- Upper tool quick clamping (lateral removal)
- Standard upper tool set 135mm - 85°
- Standard die set Multi-V 85°
- Side protection doors monitored by limit switches
- Control on swivelling arm on the right side
- Electrical components from Schneider and Mitsubishi
- Hydraulic components from HAWE and Ikron
Possible equipment options:
- Controls (CybTouch 15 or Delem DA 58T)
- Extension of the X-axis to travel 1000 mm
- CNC-controlled, motorized R-axis
- Preparation for tandem operation
- Special throat size
- Additional stop fingers and front support arms
- Second foot pedal for two-man operation
- Manual or automatic central lubrication
- Air conditioning for the control cabinet
- Oil cooler
- Oil warmer
- Special tools
- Control on the left side of the machine
- Special sizes on request
Pressing force | 220 t |
Bending length | 3700 mm |
Distance between columns | 3150 mm |
Stroke | 275 mm |
Rapid mode | 140 mm/s |
Bending speed | 1 – 10 mm/s |
Retraction | 100 mm/s |
Table height | 930 mm |
X axis stroke | 5 - 650 mm |
X axis speed | 250 mm/s |
Oil tank capacity | 300 l |
VPE | 1 |
Dimensions and weights |
---|
Length approx. | 5000 mm |
Width/depth approx. | 2000 mm |
Height approx. | 2950 mm |
Weight approx. | 13500 kg |
Electrical Data |
---|
Drive motor output | 18,5 kW |
Supply voltage | 400 V |
Mains frequency | 50 Hz |
