    Brandimage to Product HBP 10

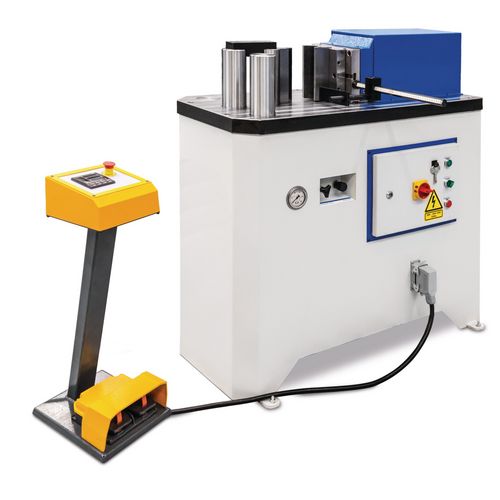

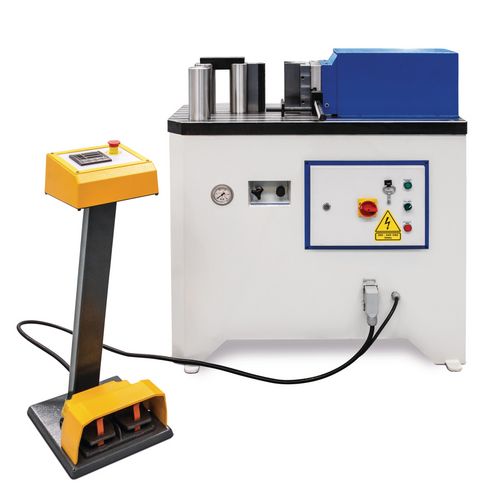

    Horizontal bending press

    HBP 10

    Hydraulic and universally applicable with NC control for immersion depth

    7.650,00 EUR excl. Tax / pc(s).
    9.103,50 EUR incl. 19% Tax / pc(s).
    Promotional price *
    7.299,00 EUR excl. Tax / pc(s).
    8.685,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3812510

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Durable construction of tools and tool guides made of high-quality, hardened steel
    • Manual operation via two foot pedals for flow and return
    • Automatic mode by programming the front and rear travel end points

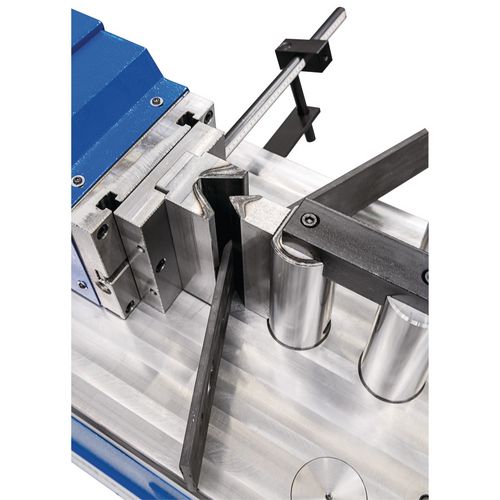

    • Easy to change the die by quick change recording

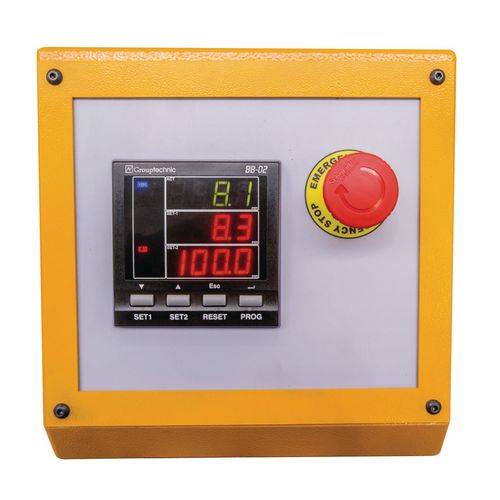

    • Foot pedal with digital display and emergency stop switch


    Hydraulic oil not included



    • Robust machine design

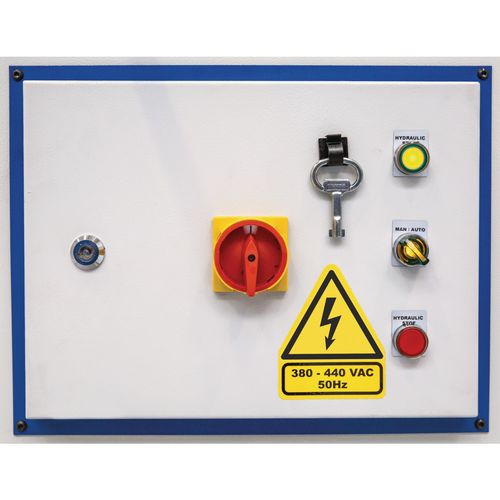

    • Manual and automatic mode selectable
    • Easy tool change through quick change adapter



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Max pressure10 t
    Oil tank capacity12 l
    Bending capacity flat material150 x 8 mm
    Bending capacity tube material42 x 3.2 mm
    Explanation bending capacity round tubesOption required
    Max. stroke185 mm
    Diameter of bolts60 mm
    Height of Toolings150 mm
    Working Speed10 mm/s
    Return speed10 mm/s
    Table length450 mm
    Table width900 mm
    Working height915 mm
    VPE1
    Dimensions and weights
    Length approx.900 mm
    Width/depth approx.450 mm
    Height approx.1130 mm
    Weight approx.250 kg
    Electrical Data
    Drive motor output1,1 kW
    Unit: pc(s).
    Packaging unit: 1

    • Bending punch 60 °; Height = 150 mm; R = 6 mm
    • Quick change die 60 °; Height = 150 mm; V = 60 mm
    • Foot pedal with digital display

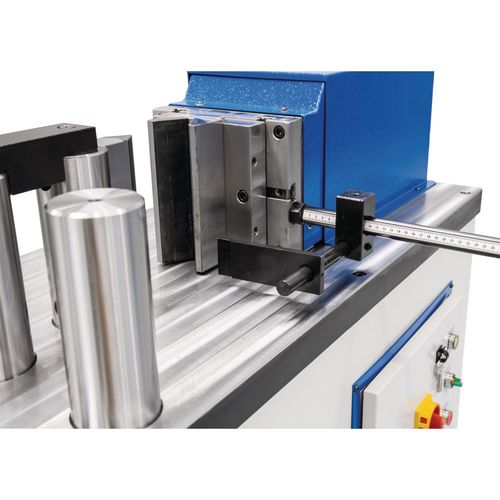

    • Side stop 300 mm
