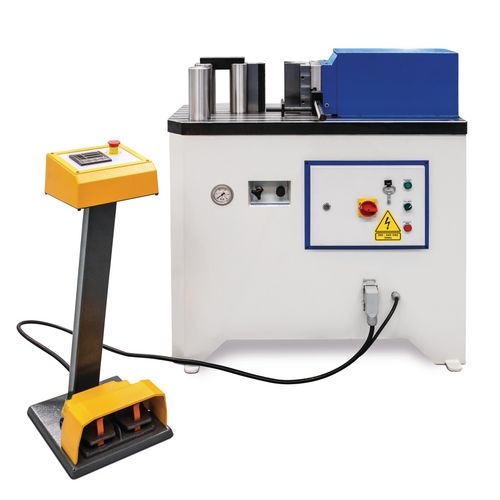

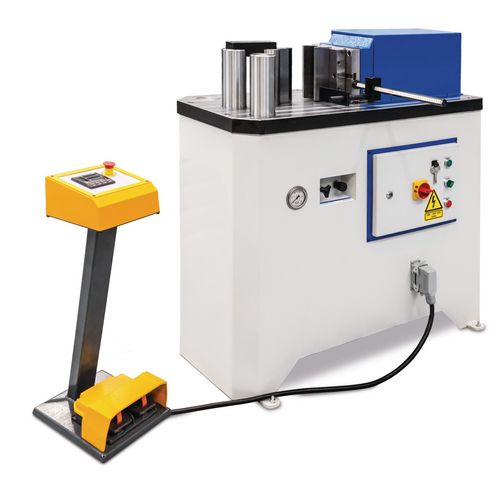

    Horizontal bending press

    HBP 40

    Hydraulic and universally applicable with NC control for immersion depth

    14.050,00 EUR excl. Tax / pc(s).
    16.719,50 EUR incl. 19% Tax / pc(s).
    Promotional price *
    13.399,00 EUR excl. Tax / pc(s).
    15.944,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3812540

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

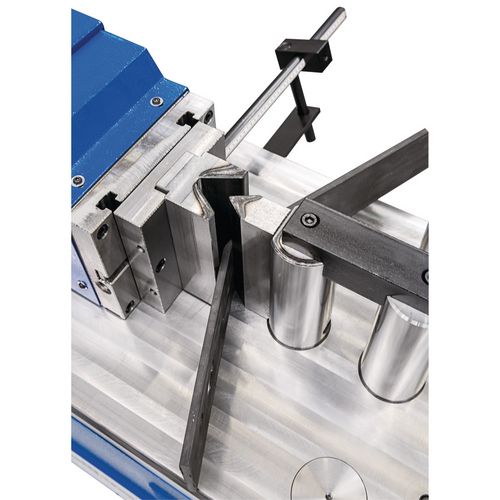

    • Durable construction of tools and tool guides made of high-quality, hardened steel
    • Manual operation via two foot pedals for flow and return
    • Automatic mode by programming the front and rear travel end points
    • Easy to change the die by quick change recording

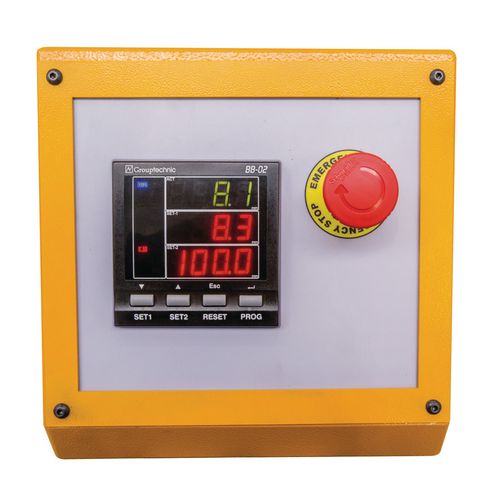

    • Foot pedal with digital display and emergency stop switch


    Hydraulic oil not included



    • Robust machine design

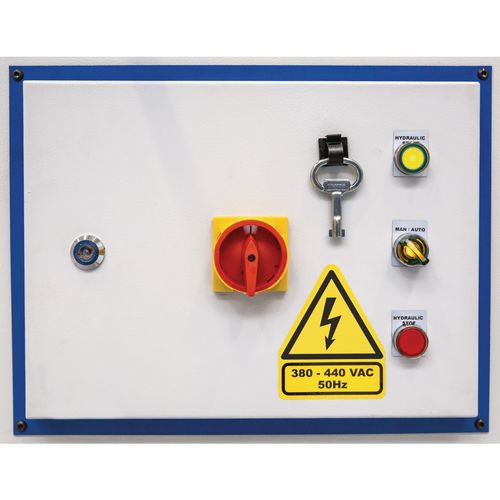

    • Manual and automatic mode selectable
    • Easy tool change through quick change adapter



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Max pressure40 t
    Oil tank capacity40 l
    Bending capacity flat material250 x 24 mm
    Bending capacity tube material60 x 5.0 mm
    Explanation bending capacity round tubesOption required
    Max. stroke285 mm
    Diameter of bolts80 mm
    Height of Toolings250 mm
    Working Speed10 mm/s
    Return speed10 mm/s
    Table length660 mm
    Table width1250 mm
    Working height930 mm
    VPE1
    Dimensions and weights
    Length approx.1250 mm
    Width/depth approx.650 mm
    Height approx.1250 mm
    Weight approx.1050 kg
    Electrical Data
    Drive motor output4 kW
    Unit: pc(s).
    Packaging unit: 1

    • Bending punch 60 °; Height = 250 mm; R = 6 mm
    • Quick change die 60 °; Height = 250 mm; V = 60 mm
    • Foot pedal with digital display

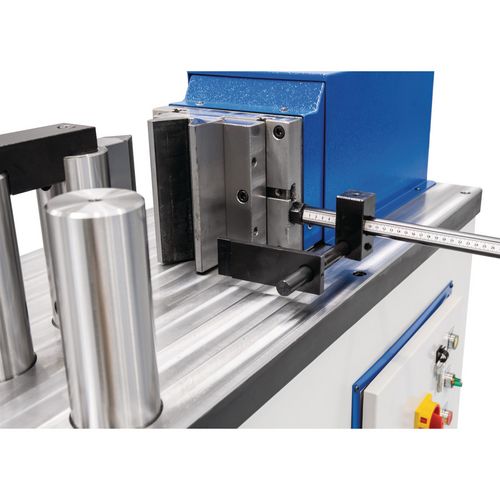

    • Side stop 300 mm
