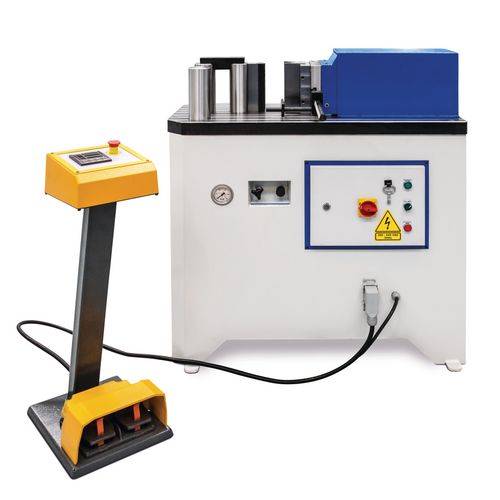

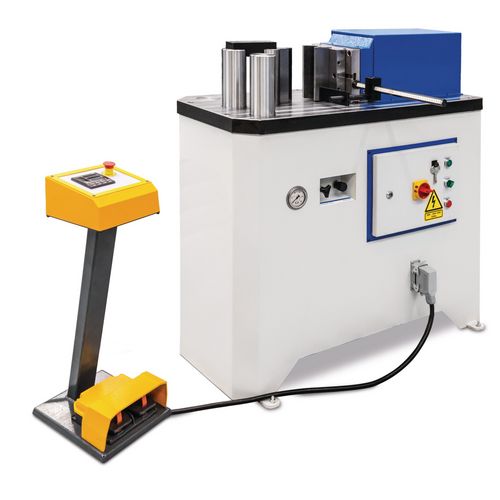

    Horizontal bending press

    HBP 50

    Hydraulic and universally applicable with NC control for immersion depth

    19.150,00 EUR excl. Tax / pc(s).
    22.788,50 EUR incl. 19% Tax / pc(s).
    Promotional price *
    18.099,00 EUR excl. Tax / pc(s).
    21.537,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3812550

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Durable construction of tools and tool guides made of high-quality, hardened steel
    • Manual operation via two foot pedals for flow and return
    • Automatic mode by programming the front and rear travel end points
    • Easy to change the die by quick change recording

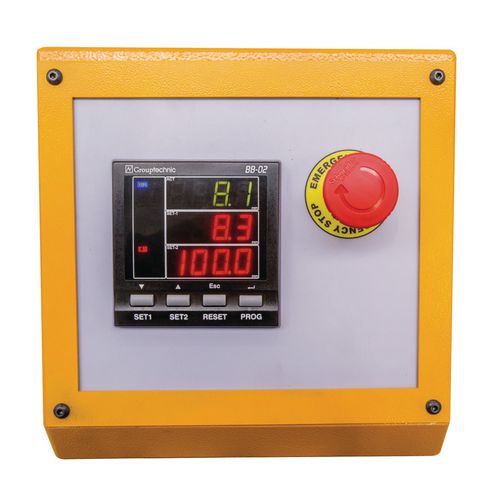

    • Foot pedal with digital display and emergency stop switch


    Hydraulic oil not included



    • Robust machine design
    • Manual and automatic mode selectable
    • Easy tool change through quick change adapter



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Max pressure50 t
    Oil tank capacity60 l
    Bending capacity flat material300 x 15 mm
    Bending capacity tube material76 x 4.0 mm
    Explanation bending capacity round tubesOption required
    Max. stroke285 mm
    Diameter of bolts90 mm
    Height of Toolings300 mm
    Working Speed10 mm/s
    Return speed10 mm/s
    Table length600 mm
    Table width1250 mm
    Working height930 mm
    VPE1
    Dimensions and weights
    Length approx.1400 mm
    Width/depth approx.600 mm
    Height approx.1500 mm
    Weight approx.1450 kg
    Electrical Data
    Drive motor output5.5 kW
    Unit: pc(s).
    Packaging unit: 1

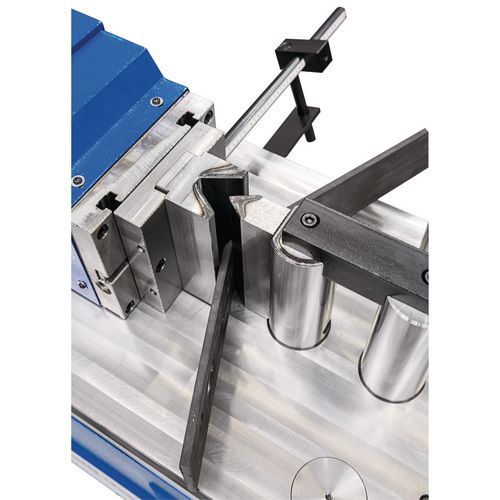

    • Bending punch 68 °; Height = 300 mm; R = 5 mm
    • Quick change die 60 °; Height = 300 mm; V = 60 mm
    • Foot pedal with digital display

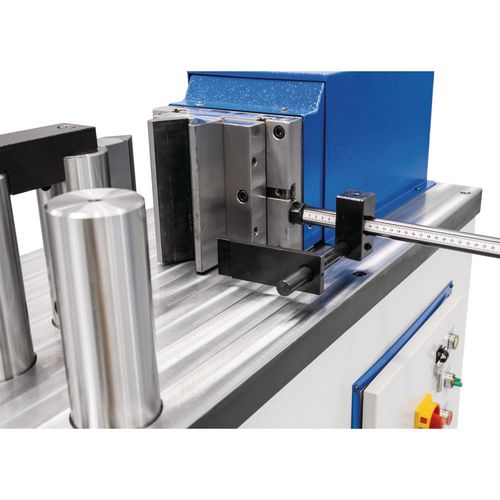

    • Side stop 300 mm
