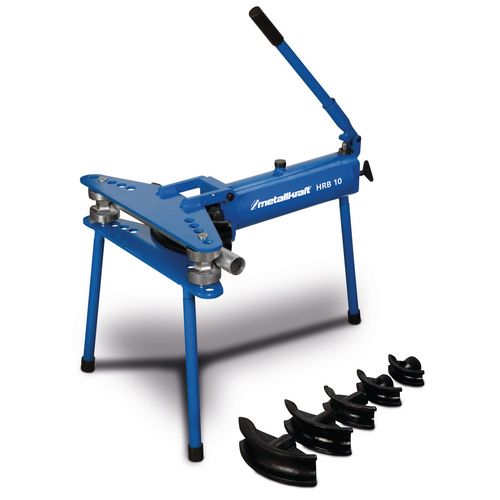

    Hydraulic pipe bender

    HRB 10

    For universal use with 6 bending segments of 1/2 "- 2"

    425,00 EUR excl. Tax / pc(s).
    505,75 EUR incl. 19% Tax / pc(s).
    Promotional price *
    369,00 EUR excl. Tax / pc(s).
    439,11 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3777010

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Universally usable for heating, gas, boiling and heating Water pipes, copper pipes and composite pipes
    • Hinged bender frame for convenient and efficient operation
    • Tripod stand for ergonomic work



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Pressure output10 t
    Piston stroke155 mm
    Pipe diameter imperial½; ¾; 1; 1 ¼; 1 ½; 2 "
    Pipe diameter metric20; 25; 32; 40; 47; 59 mm
    Wall thickness(es)3.25; 3.5; 4.0; 4.0; 4.25; 4.5 mm
    Min. bending radii62; 78; 98; 128; 149; 187 mm
    Max. bending angle90; 90; 90; 120; 120; 120 °
    VPE1
    Dimensions and weights
    Length approx.690 mm
    Width/depth approx.510 mm
    Height approx.880 mm
    Weight approx.45 kg
    Unit: pc(s).
    Packaging unit: 1

    • six bending segments: 1/2 ", 3/4", 1 ", 1 1/4", 1 1/2 ", 2"
    • Tripod stand
