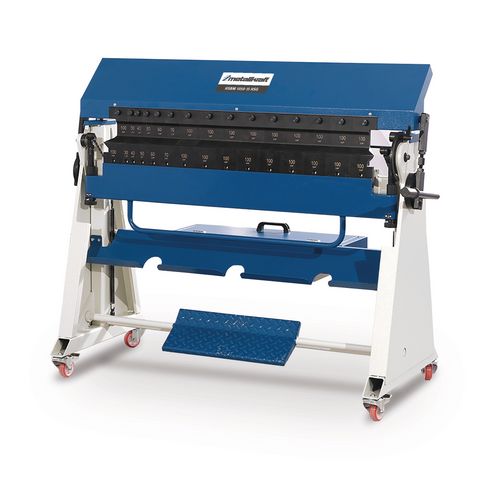

HSBM 1250-12 HSG

with segmented upper/lower tool

5.600,00 EUR excl. Tax / pc(s).
6.664,00 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 4120012

Are you interested in this product?

Put a request

Find Trader

Productdetails

Segmented goat foot tool with quick-change system in the upper beam
Segmented bending bar and bed support

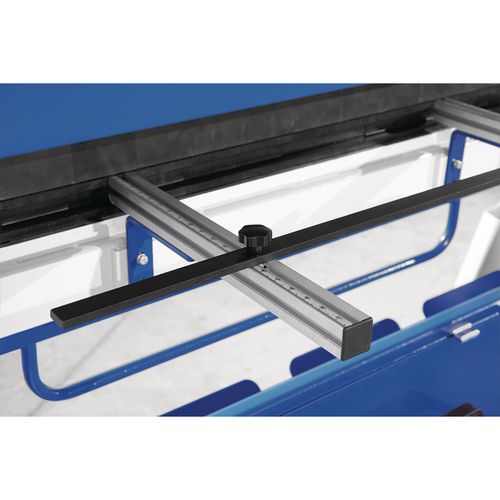

Backgauge up to 500mm

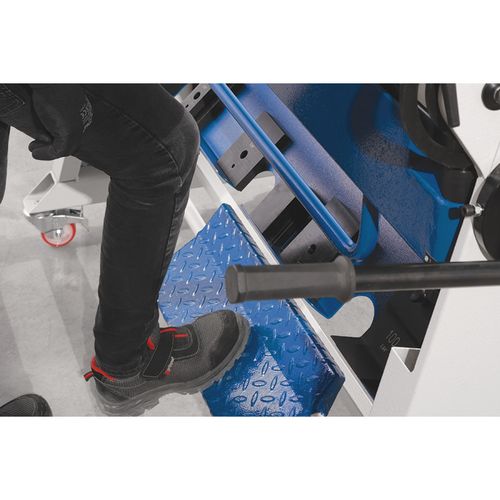

Foot quick clamping for workpiece fixation
Transport rollers with locking brake

Segmented goat foot tool with quick-change system in the upper beam
Segmented bending bar and bed support
Backgauge up to 500mm
Foot quick clamping for workpiece fixation
Transport rollers with locking brake

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Max. working width	1250 mm
Max. bending angle	135 °
Explanation max. bending angle	95° for leg length > 40 mm
Segmentation	100-100-100-100-100-100-100-70-60-50-40-30-100-100-100 mm
VPE	1

Bending capacity
400 N/mm²	1.25 mm
Stainless steel	0.8 mm
Aluminium	2 mm

Dimensions and weights
Length approx.	1500 mm
Width/depth approx.	750 mm
Height approx.	1515 mm
Weight approx.	315 kg

Unit: pc(s).
Packaging unit: 1
