| Max. working width | 2520 mm |
| Max. passageway between top + bottom beam | 90 mm |
| Segmentation | 25-30-35-40-45-50-75-100-150-220-250-500-500 mm |
| VPE | 1 |

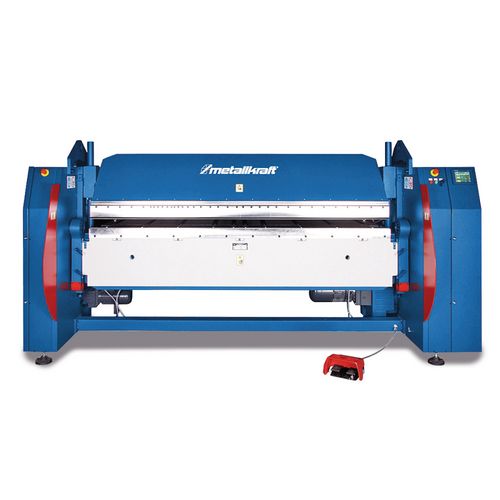

Motorized swing bending machine
MSBM 2520-35 PRO SH
Heavy-duty design with motorized clamping of the workpiece
42.450,00
EUR excl. Tax / pc(s).
50.515,50
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3779135
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Powerful and quiet drive via LENZE gear motors with brake
- Compact, heavy and stress-free welded steel construction
- Sharp bending rail made of tool steel C50 at the clamping cheek
- Continuous, exchangeable bed support made of tool steel C50
- Continuous bending rail made of tool steel C50 at the bending beam
- Automatic pressure regulation of the clamping cheek via motor current pick-up
- Drive of the clamping cheek via generously dimensioned trapezoidal thread spindles
- Bending angle adjustment PT 1 via potentiometer on the machine front (right)
- Manual fine adjustment of bending beam with scale
- Manual crowning via pressure screws in the bending beam
- Foot remote control with emergency stop function
- All moving parts with low-maintenance bearings
- Electrical components from Schneider or Omron
- SH-models with high, segmented goat's foot tools
- Quality Made in Europe
- Available on request: Models in DUO design with continuous sharp bending rail and segmented goad foot tools, standard tools hardened, sharp bending rail and bending bar hardened, segmented tools and bending bar hardened, segmented goad foot tools and bending bar hardened
| Bending capacity | |
|---|---|
| 400N/mm² | 3.5 mm |
| Stainless steel | 2.6 mm |
| Explanation stainless steel | For bending stainless steel the optional hardening of the tools is required |
| Aluminium | 4.2 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 3620 mm |
| Width/depth approx. | 1100 mm |
| Height approx. | 1560 mm |
| Weight approx. | 4500 kg |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Optional parts
Optional parts can not be retrofitted and are available only when ordering new machines.
