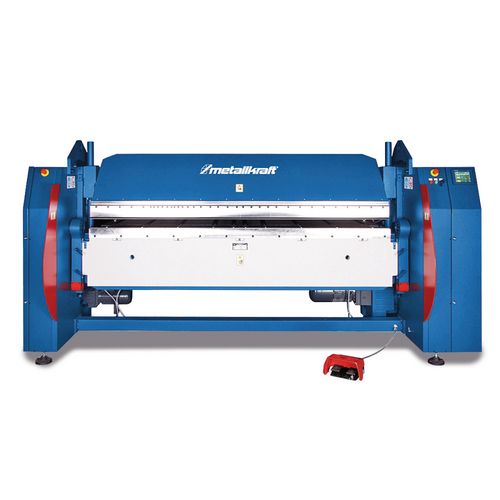

    Motorized swing bending machine

    MSBM 3020-40 PRO

    Heavy-duty design with motorized clamping of the workpiece

    56.990,00 EUR excl. Tax / pc(s).
    67.818,10 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3779143

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • With foot control
    • Heavy, compact welded construction
    • Powerful drive by Lenzemotors
    • With continuous sharp-bending rail
    • Seriesßig with manual adjustment of the bending angle
    • Especially low-maintenance
    • Clamping of the workpiece is motor-driven
    • SH models with high, segmented cast base tools
    • DUO models with continuous sharp-bending rail and high, segmented goat foot tools

    Available on request

    • Standard tools hardened
    • Sharp bending bar and bending bar hardened
    • Segmented tools and bending bar hardened
    • Segmented cast foot tools and bending bar hardened

    Quality Made in Europe



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Max. working width3020 mm
    Max. passageway between top + bottom beam200 mm
    VPE1
    Bending capacity
    400 N/mm²4.0 mm
    Stainless steel3 mm
    Aluminium4.8 mm
    Dimensions and weights
    Length approx.4120 mm
    Width/depth approx.1160 mm
    Height approx.1590 mm
    Weight approx.6090 kg
    Unit: pc(s).
    Packaging unit: 1







    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
