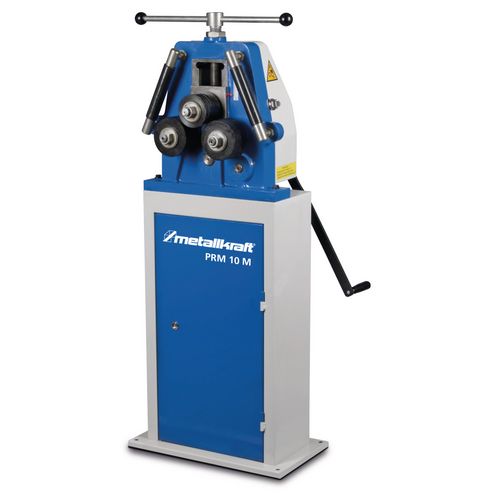

Square material dimensions [1] | 20 mm |
Square material min. bending Ø [1] | 500 mm |
Square material dimensions [2] | 10 mm |
Square material min. bending Ø [2] | 160 mm |
Flat material light axis dimensions bending Ø [1] | 50 x 10 mm |
Flat material light axis min. bending Ø [1] | 400 mm |
Flat material light axis dimensions bending Ø [2] | 40 x 5 mm |
Flat material light axis min. bending Ø [2] | 160 mm |
Flat material heavy axis dimensions bending Ø [1] | 30 x 10 mm |
Flat material heavy axis min. bending Ø [1] | 500 mm |
Flat material heavy axis dimensions bending Ø [2] | 20 x 5 mm |
Flat material heavy axis min. bending Ø [2] | 190 mm |
UPN profile top rib dimensions [1] | 35 x 4.5 mm |
T profile top rib min. bending Ø [1] | 600 mm |
UPN profile top rib dimensions [2] | 30 x 4 mm |
T profile top rib min. bending Ø [2] | 400 mm |
Explanation for T profile rib above | Additional spacers may be required |
UPN profile outside rib dimensions [1] | 35 x 4.5 mm |
T profile outside rib min. bending Ø [1] | 600 mm |
UPN profile outside rib dimensions [2] | 30 x 4 mm |
T profile outside rib min. bending Ø [2] | 400 mm |
UPN profile inside rib dimensions [1] | 35 x 4.5 mm |
T profile inside rib min. bending Ø [1] | 600 mm |
UPN profile inside rib dimensions [2] | 30 x 4 mm |
T profile inside rib min. bending Ø [2] | 400 mm |
UPN profile outside leg dimensions [1] | U40x20 mm |
UPN profile outside leg min. bending Ø [1] | 700 mm |
UPN profile outside leg dimensions [2] | U30 mm |
UPN profile outside leg min. bending Ø [2] | 500 mm |
UPN profile inside leg dimensions [1] | U40x20 mm |
UPN profile inside leg min. bending Ø [1] | 700 mm |
UPN profile inside leg dimensions [2] | U30 mm |
Inside leg min. bending Ø [2] | 500 mm |
Explanations for bending performance, profile type standard | The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7 |
