| Bending performances profile type optional | |
|---|---|
| Square tube dimensions [1] | 25 x 2 mm |
| Square tube min. bending Ø [1] | 450 mm |
| Square tube heavy axis dimensions bending Ø [1] | 30 x 15 x 2.5 mm |
| Square tube heavy axis min. bending Ø [1] | 500 mm |
| Round tube dimensions [1] | 25.4 x 2.3 mm |
| Round tube min. bending Ø [1] | 300 mm |
| Round profile dimensions [1] | 22 mm |
| Round profile min. bending Ø [1] | 200 mm |
| isosceles angle profile outside dimensions [1] | 35 x 35 x 5 mm |
| isosceles angle profile outside leg min. bending Ø [1] | 400 mm |
| isosceles angle profile inside dimensions [1] | 30 x 30 x 4 mm |
| isosceles angle profile inside leg min. bending Ø [1] | 550 mm |
| Explanations for bending performance, profile type optional | The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7 |

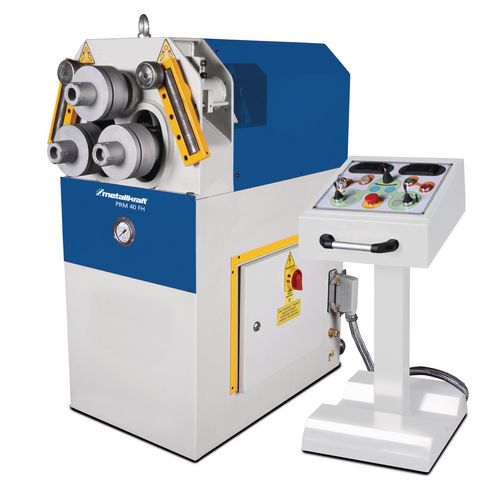

Ring bending machine
PRM 40 FH
Can be used horizontally and vertically for profiles and tubes with foot control
12.750,00
EUR excl. Tax / pc(s).
15.172,50 EUR incl. 19% Tax / pc(s).
15.172,50 EUR incl. 19% Tax / pc(s).
Promotional price *
11.799,00 EUR excl. Tax / pc(s).14.040,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.
Art.-No. 3812040
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Heavy cast construction
- hardened bending rolls
- Shafts made of special steel, hardened and ground

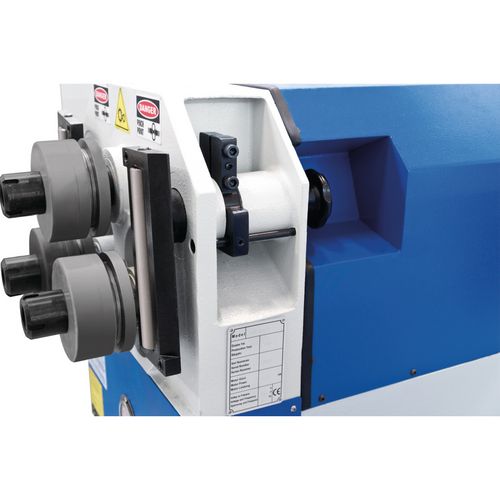

- Lateral straightening rollers, infinitely adjustable

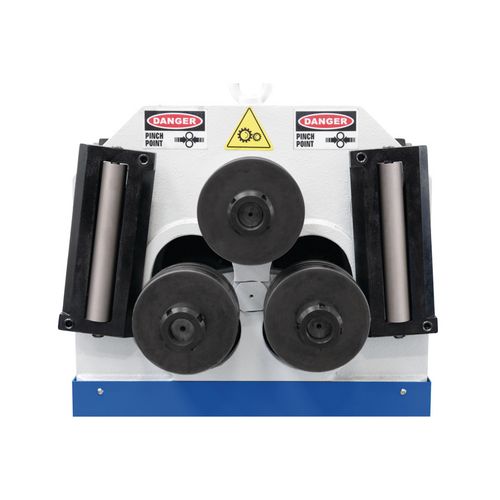

- All 3 rollers driven by gear
- Horizontal and vertical working position
- Suitable for very small bending diameters

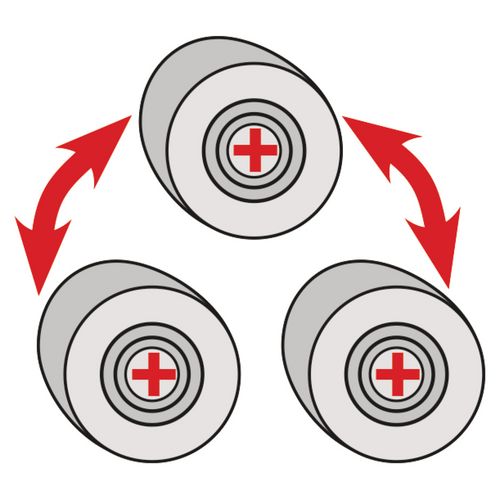

- Suitable for very small bending diameters due to orbital deliverable lower rollers

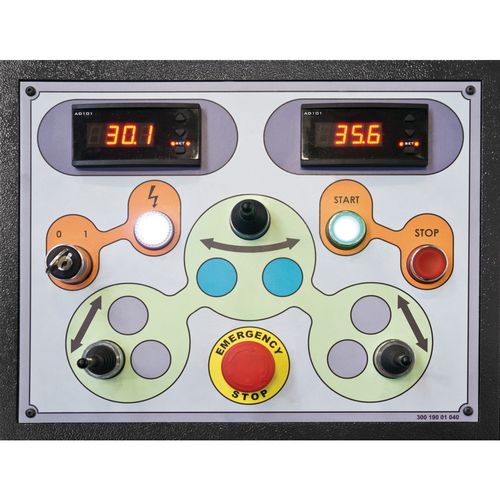

- mobile control panel with two digital displays for the feed rollers
- Straightening rolls are suitable for bending angle iron as standard
special accessories
- Tube bending rolls
- Angle bending rolls
- Special straightening rollers
- Profile bending rolls
- Plastic rollers for soft materials
- Device for twisting rods
- Spiral bending tool
| Bending performances profile type standard | |
|---|---|
| Square material dimensions [1] | 18 mm |
| Square material min. bending Ø [1] | 250 mm |
| Flat material light axis dimensions bending Ø [1] | 50 x 12 mm |
| Flat material light axis min. bending Ø [1] | 400 mm |
| Flat material heavy axis dimensions bending Ø [1] | 35 x 8 mm |
| Flat material heavy axis min. bending Ø [1] | 300 mm |
| UPN profile top rib dimensions [1] | 35 x 5 mm |
| T profile top rib min. bending Ø [1] | 400 mm |
| Explanation for T profile rib above | Additional spacers may be required |
| UPN profile outside rib dimensions [1] | 30 x 5 mm |
| T profile outside rib min. bending Ø [1] | 300 mm |
| UPN profile inside rib dimensions [1] | 35 x 5 mm |
| T profile inside rib min. bending Ø [1] | 300 mm |
| UPN profile outside leg dimensions [1] | UPN 40x20 mm |
| UPN profile outside leg min. bending Ø [1] | 350 mm |
| UPN profile outside leg dimensions [2] | UPN 35 x 18 |
| UPN profile outside leg min. bending Ø [2] | 500 mm |
| UPN profile inside leg dimensions [1] | U30x15 mm |
| UPN profile inside leg min. bending Ø [1] | 500 mm |
| Explanations for bending performance, profile type standard | The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7 |
| Dimensions and weights | |
|---|---|
| Length approx. | 1050 mm |
| Width/depth approx. | 500 mm |
| Height approx. | 1250 mm |
| Weight approx. | 350 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1,1 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine data | |
|---|---|
| Shaft diameter top | 35 mm |
| Shaft diameter bottom | 35 mm |
| Roller diameter top | 137 mm |
| Roller diameter bottom | 137 mm |
| Speed | 7 m/min |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Standard bending rolls
- Digital displays for feed rollers
- mobile control panel
- straightening rollers
- substructure
