Hydraulic ring bending machine
PRM 50 FH
Can be used horizontally and vertically for profiles, tubes and solid material
11.690,00
EUR excl. Tax / pc(s).
13.911,10 EUR incl. 19% Tax / pc(s).
13.911,10 EUR incl. 19% Tax / pc(s).
Promotional price *
10.499,00 EUR excl. Tax / pc(s).12.493,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 3812036
Are you interested in this product?
Put a request
Find Trader
Productdetails
- heavy welded steel construction
- Horizontal and vertical work possibility

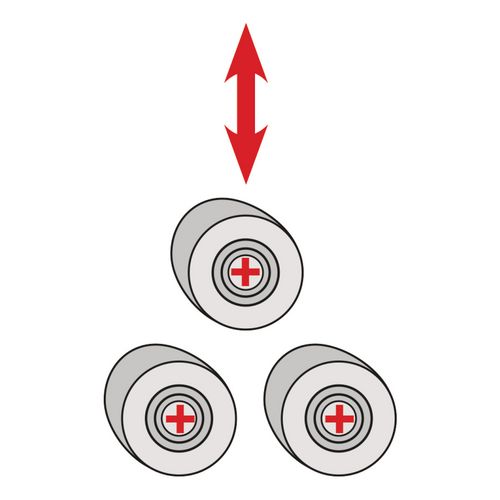

- Hydraulic adjustment of the upper roller

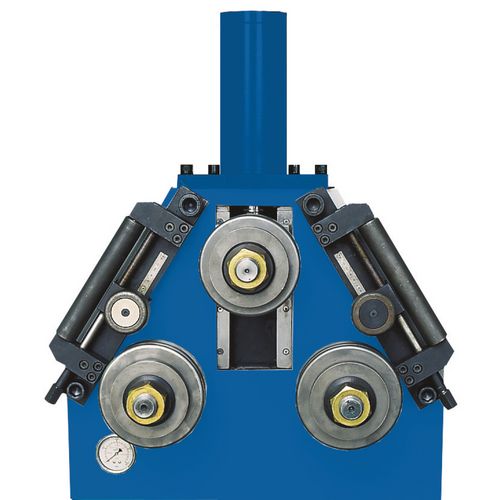

- all 3 rollers driven
- Rolls are hardened
- lateral straightening rollers, infinitely adjustable

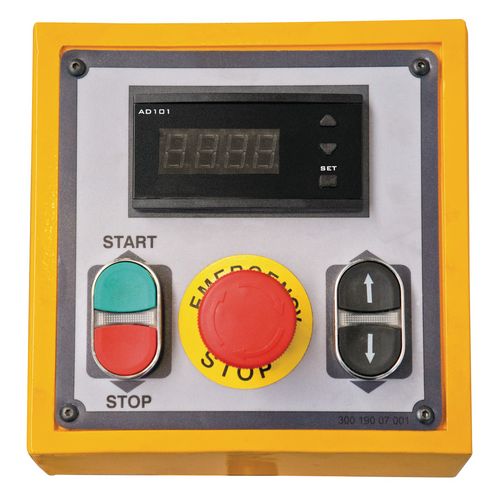

- separate control panel with foot control
- powerful 400 volt engine
special accessories
- Tube bending rolls
- Angle bending rolls
- Special straightening rollers
- Profile bending rolls
- Plastic rollers for soft materials
| Bending performances profile type optional | |
|---|---|
| Square tube dimensions [1] | 50 x 6 mm |
| Square tube min. bending Ø [1] | 800 mm |
| Square tube heavy axis dimensions bending Ø [1] | 70 x 30 x 3 mm |
| Square tube heavy axis min. bending Ø [1] | 1500 mm |
| Round tube dimensions [1] | 50.8 x 2.9 mm |
| Round tube min. bending Ø [1] | 1000 mm |
| Round profile dimensions [1] | 35 mm |
| Round profile min. bending Ø [1] | 600 mm |
| isosceles angle profile outside dimensions [1] | 50 x 50 x 6 mm |
| isosceles angle profile outside leg min. bending Ø [1] | 600 mm |
| isosceles angle profile inside dimensions [1] | 50 x 50 x 6 mm |
| isosceles angle profile inside leg min. bending Ø [1] | 900 mm |
| Explanations for bending performance, profile type optional | The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7 |
| Bending performances profile type standard | |
|---|---|
| Square material dimensions [1] | 35 mm |
| Square material min. bending Ø [1] | 600 mm |
| Square material dimensions [2] | 15 mm |
| Flat material light axis dimensions bending Ø [1] | 100 x 15 mm |
| Flat material light axis min. bending Ø [1] | 600 mm |
| Flat material light axis dimensions bending Ø [2] | 50 x 10 mm |
| Flat material light axis min. bending Ø [2] | 300 mm |
| Flat material heavy axis dimensions bending Ø [1] | 60 x 10 mm |
| Flat material heavy axis min. bending Ø [1] | 600 mm |
| Flat material heavy axis dimensions bending Ø [2] | 20 x 10 mm |
| Flat material heavy axis min. bending Ø [2] | 300 mm |
| UPN profile top rib dimensions [1] | 60 x 7 mm |
| T profile top rib min. bending Ø [1] | 800 mm |
| UPN profile top rib dimensions [2] | 30 x 4 mm |
| T profile top rib min. bending Ø [2] | 500 mm |
| Explanation for T profile rib above | Additional spacers may be required |
| UPN profile outside rib dimensions [1] | 60 x 7 mm |
| T profile outside rib min. bending Ø [1] | 800 mm |
| UPN profile outside rib dimensions [2] | 30 x 4 mm |
| T profile outside rib min. bending Ø [2] | 500 mm |
| UPN profile inside rib dimensions [1] | 50 x 6 mm |
| T profile inside rib min. bending Ø [1] | 800 mm |
| UPN profile inside rib dimensions [2] | 30 x 4 mm |
| T profile inside rib min. bending Ø [2] | 400 mm |
| UPN profile outside leg dimensions [1] | UPN 80 mm |
| UPN profile outside leg min. bending Ø [1] | 800 mm |
| UPN profile outside leg dimensions [2] | UPN 30 mm |
| UPN profile outside leg min. bending Ø [2] | 400 mm |
| UPN profile inside leg dimensions [1] | UPN 80 mm |
| UPN profile inside leg min. bending Ø [1] | 1200 mm |
| UPN profile inside leg dimensions [2] | UPN 30 mm |
| Inside leg min. bending Ø [2] | 600 mm |
| Explanations for bending performance, profile type standard | The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7 |
| Dimensions and weights | |
|---|---|
| Length approx. | 810 mm |
| Width/depth approx. | 950 mm |
| Height approx. | 1500 mm |
| Weight approx. | 510 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1.12 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine data | |
|---|---|
| Shaft diameter top | 50 mm |
| Shaft diameter bottom | 50 mm |
| Roller diameter top | 162 mm |
| Roller diameter bottom | 152 mm |
| Speed | 4.5 m/min |
| Hydraulic pressure | 8 t |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Standard bending rolls
- mobile foot pedal for left-hand rotation with emergency stop
- straightening rollers
- Digital display for feed roller
