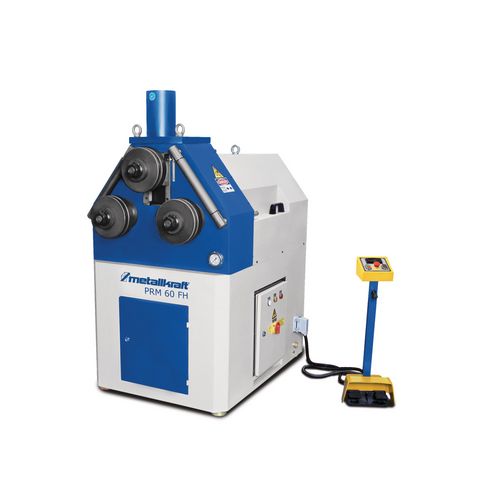

Hydraulic ring bending machine
PRM 60 FH

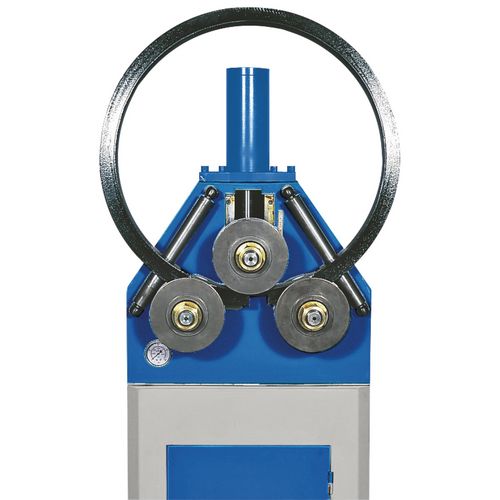

Can be used horizontally and vertically for profiles, tubes and solid material
15.850,00
EUR excl. Tax / pc(s).
18.861,50 EUR incl. 19% Tax / pc(s).
18.861,50 EUR incl. 19% Tax / pc(s).
Promotional price *
14.699,00 EUR excl. Tax / pc(s).17.491,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 3812060
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Heavy welded steel construction
- Horizontal and vertical working possibility

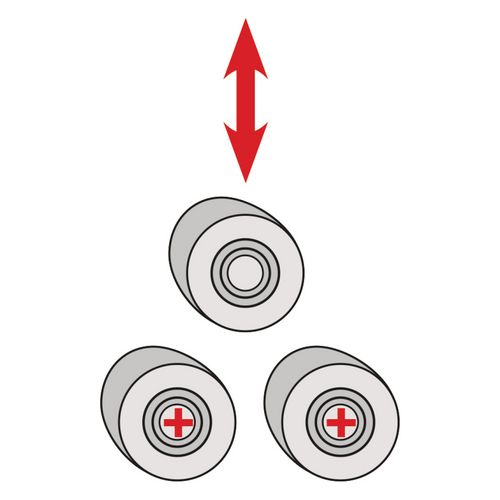

- Hydraulic feed of the upper roller
- Digital display for feed roller

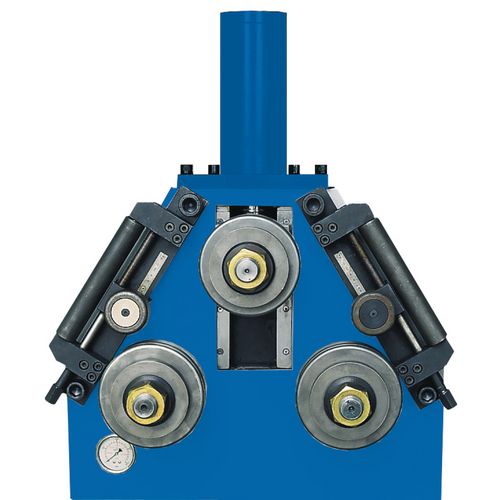

- All 3 rollers driven and hardened
- Lateral straightening rollers, infinitely adjustable

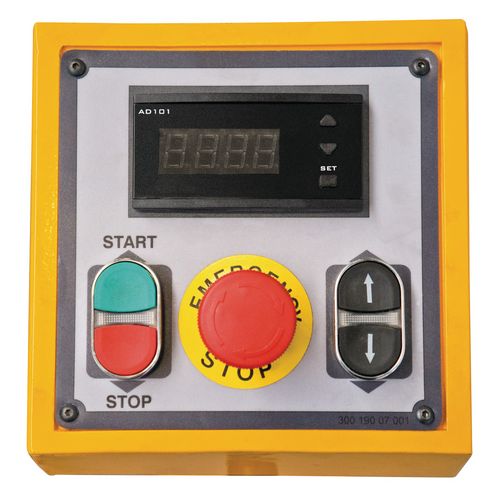

- Separate control panel with foot control
Optional accessory:
- Tube bending rolls
- Angle bending rolls
- Special straightening rolls
- Profile bending rolls
- Plastic rollers for soft materials
Notice:
- Please indicate the type of material to be processed when ordering!
- NC-control Art. No. 3880163: Cannot be retrofitted, only for new machine orders!
- Optionally the machine can be equipped with bending rolls especially for your requirements.
- Also untypical sizes can be produced on request
| Bending performances profile type optional | |
|---|---|
| Explanations for bending performance, profile type optional | The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7 |
| Bending performances profile type standard | |
|---|---|
| Square material dimensions [1] | 50 mm |
| Square material min. bending Ø [1] | 800 mm |
| Square material dimensions [2] | 20 mm |
| Square material min. bending Ø [2] | 400 mm |
| Flat material light axis dimensions bending Ø [1] | 120 x 25 mm |
| Flat material light axis min. bending Ø [1] | 600 mm |
| Flat material light axis dimensions bending Ø [2] | 50 x 10 mm |
| Flat material light axis min. bending Ø [2] | 400 mm |
| Flat material heavy axis dimensions bending Ø [1] | 80 x 20 mm |
| Flat material heavy axis min. bending Ø [1] | 1200 mm |
| Flat material heavy axis dimensions bending Ø [2] | 40 x 10 mm |
| Flat material heavy axis min. bending Ø [2] | 400 mm |
| UPN profile top rib dimensions [1] | 80 x 9 mm |
| T profile top rib min. bending Ø [1] | 1000 mm |
| UPN profile top rib dimensions [2] | 40 x 5 mm |
| T profile top rib min. bending Ø [2] | 400 mm |
| Explanation for T profile rib above | Additional spacers may be required |
| UPN profile outside rib dimensions [1] | 80 x 9 mm |
| T profile outside rib min. bending Ø [1] | 1000 mm |
| UPN profile outside rib dimensions [2] | 40 x 5 mm |
| T profile outside rib min. bending Ø [2] | 400 mm |
| UPN profile inside rib dimensions [1] | 80 x 9 mm |
| T profile inside rib min. bending Ø [1] | 1200 mm |
| UPN profile inside rib dimensions [2] | 40 x 5 mm |
| T profile inside rib min. bending Ø [2] | 500 mm |
| UPN profile outside leg dimensions [1] | UPN 120 |
| UPN profile outside leg min. bending Ø [1] | 800 mm |
| UPN profile outside leg dimensions [2] | UPN 60 |
| UPN profile outside leg min. bending Ø [2] | 500 mm |
| UPN profile inside leg dimensions [1] | UPN 120 |
| UPN profile inside leg min. bending Ø [1] | 1200 mm |
| UPN profile inside leg dimensions [2] | UPN 60 |
| Inside leg min. bending Ø [2] | 600 mm |
| Explanations for bending performance, profile type standard | The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7 |
| Dimensions and weights | |
|---|---|
| Length approx. | 1000 mm |
| Width/depth approx. | 1400 mm |
| Height approx. | 1650 mm |
| Weight approx. | 950 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1.5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine data | |
|---|---|
| Shaft diameter top | 60 mm |
| Shaft diameter bottom | 60 mm |
| Roller diameter top | 215 mm |
| Roller diameter bottom | 215 mm |
| Speed | 4 m/min |
| Hydraulic pressure | 16 t |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Standard bending rolls
- mobile foot pedal for left-hand rotation with emergency stop
- straightening rollers
- Digital display for feed roller
