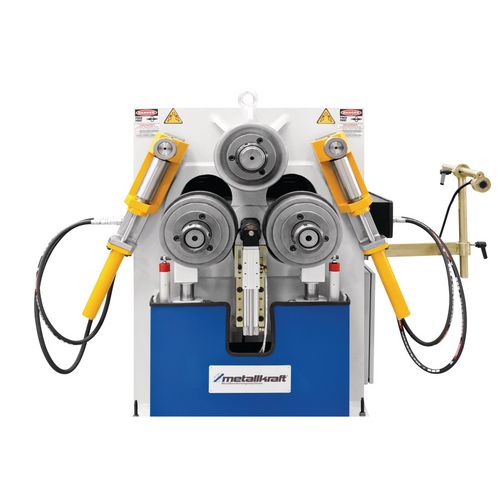

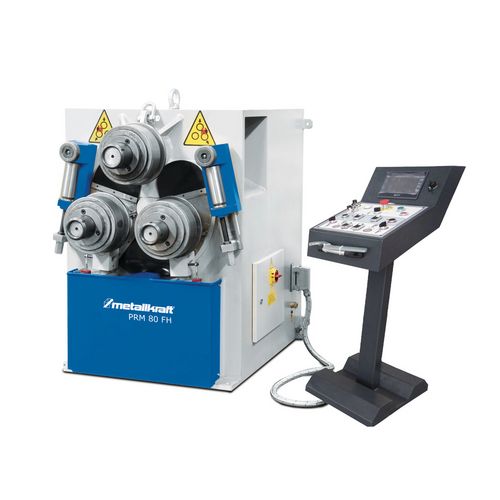

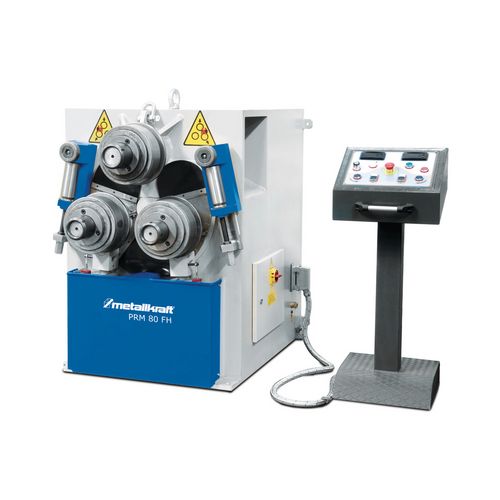

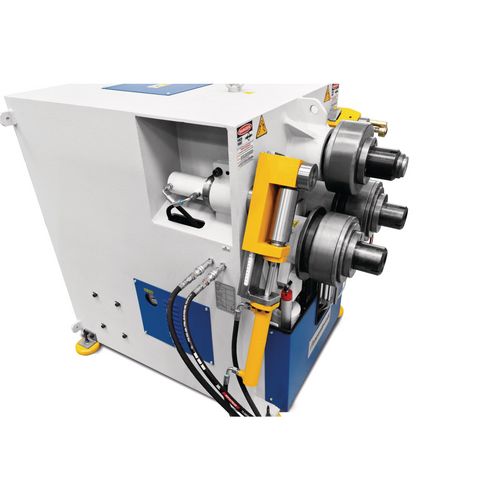

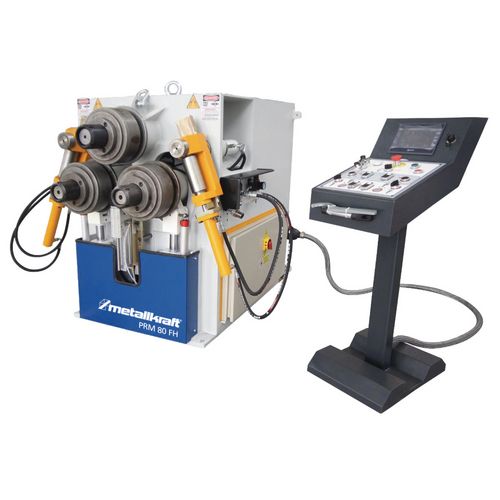

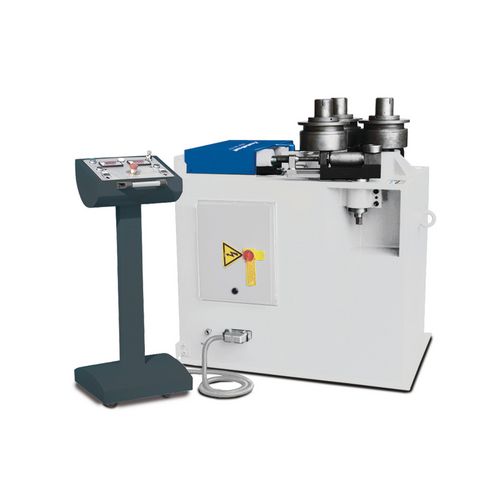

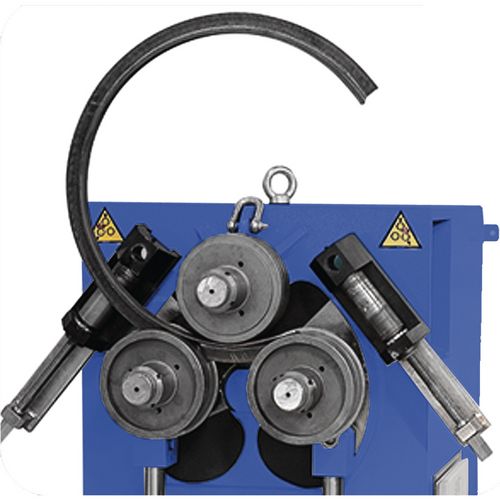

Hydraulic ring bending machine
Can be used horizontally and vertically for profiles, tubes and solid material
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.
Art.-No. 3812080

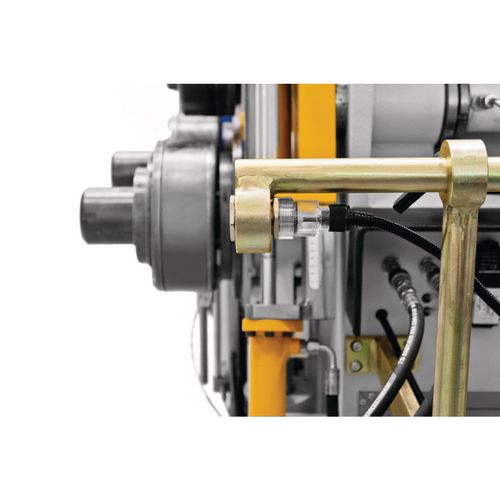

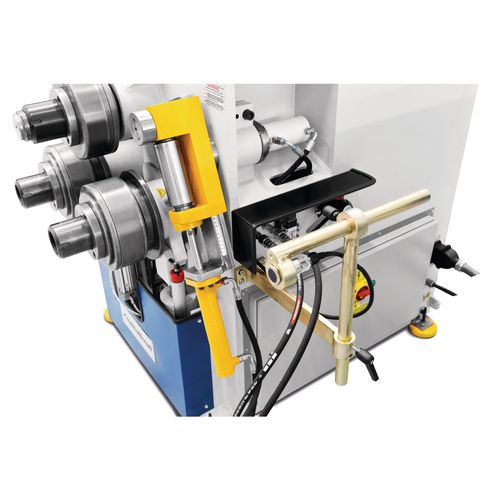

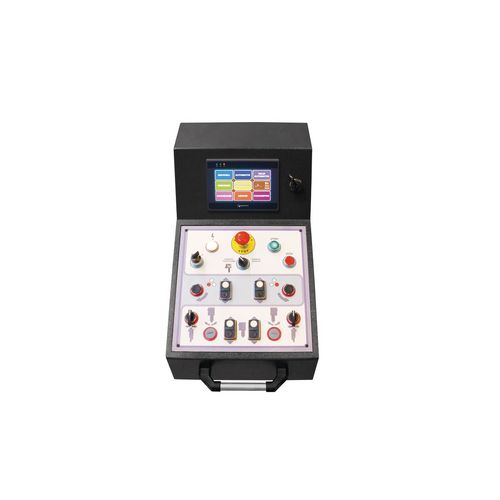

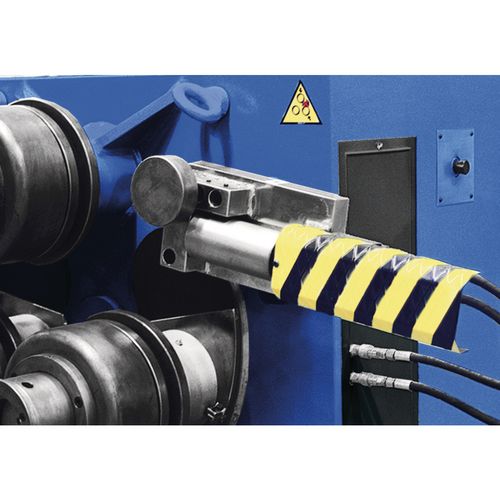

Optional accessories:
Note:

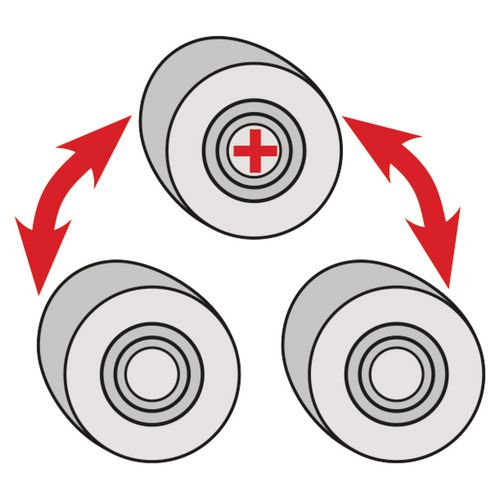

Bending performances profile type optional | |
---|---|
Explanations for bending performance, profile type optional | The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7 |
Bending performances profile type standard | |
---|---|
Square material dimensions [1] | 45 mm |
Square material min. bending Ø [1] | 500 mm |
Square material dimensions [2] | 15 mm |
Square material min. bending Ø [2] | 380 mm |
Flat material light axis dimensions bending Ø [1] | 125 x 25 mm |
Flat material light axis min. bending Ø [1] | 600 mm |
Flat material light axis dimensions bending Ø [2] | 60 x 5 mm |
Flat material light axis min. bending Ø [2] | 300 mm |
Flat material heavy axis dimensions bending Ø [1] | 100 x 20 mm |
Flat material heavy axis min. bending Ø [1] | 2000 mm |
Flat material heavy axis dimensions bending Ø [2] | 80 x 20 mm |
Flat material heavy axis min. bending Ø [2] | 800 mm |
Flat material heavy axis dimensions bending Ø [3] | 30 x 10 mm |
Flat material heavy axis min. bending Ø [3] | 300 mm |
UPN profile top rib dimensions [1] | 80 x 9 mm |
T profile top rib min. bending Ø [1] | 800 mm |
UPN profile top rib dimensions [2] | 25 x 3.5 mm |
T profile top rib min. bending Ø [2] | 280 mm |
Explanation for T profile rib above | Additional spacers may be required |
UPN profile outside rib dimensions [1] | 70 x 8 mm |
T profile outside rib min. bending Ø [1] | 800 mm |
UPN profile outside rib dimensions [2] | 25 x 3.5 mm |
T profile outside rib min. bending Ø [2] | 280 mm |
UPN profile inside rib dimensions [1] | 70 x 8 mm |
T profile inside rib min. bending Ø [1] | 800 mm |
UPN profile inside rib dimensions [2] | 25 x 3.5 mm |
T profile inside rib min. bending Ø [2] | 280 mm |
UPN profile outside leg dimensions [1] | UPN 140 |
UPN profile outside leg min. bending Ø [1] | 1600 mm |
UPN profile outside leg dimensions [2] | UPN 120 |
UPN profile outside leg min. bending Ø [2] | 900 mm |
UPN profile outside leg dimensions [3] | UPN 100 |
UPN profile outside leg min. bending Ø [3] | 600 mm |
UPN profile inside leg dimensions [1] | UPN 140 |
UPN profile inside leg min. bending Ø [1] | 1600 mm |
UPN profile inside leg dimensions [2] | UPN 120 |
Inside leg min. bending Ø [2] | 1000 mm |
UPN profile inside leg dimensions [3] | UPN 100 |
UPN profile inside leg min. bending Ø [3] | 800 mm |
Explanations for bending performance, profile type standard | The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7 |
Dimensions and weights | |
---|---|
Length approx. | 1450 mm |
Width/depth approx. | 1000 mm |
Height approx. | 1400 mm |
Weight approx. | 1700 kg |
Electrical Data | |
---|---|
Drive motor output | 4 kW |
Supply voltage | 400 V |
Mains frequency | 50 Hz |
Machine data | |
---|---|
Shaft diameter top | 80 mm |
Shaft diameter bottom | 70 mm |
Roller diameter top | 245 mm |
Roller diameter bottom | 245 mm |
Speed | 6 m/min |
VPE | 1 |
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Optional parts can not be retrofitted and are available only when ordering new machines.
