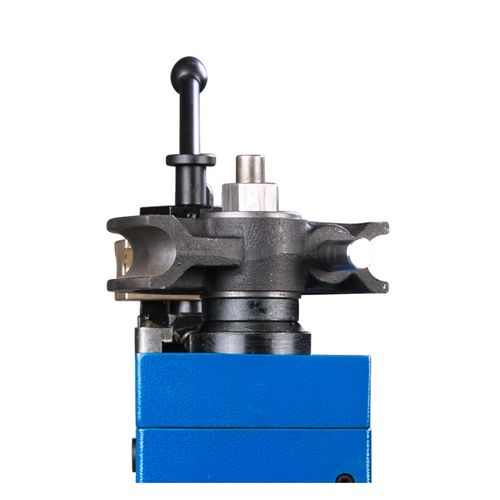

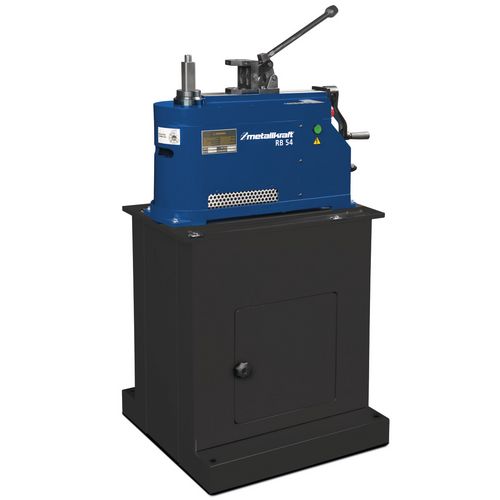

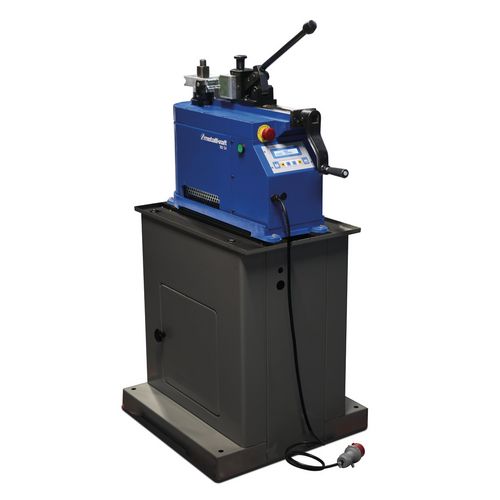

    • Productimage for RB 54
    • Productimage for RB 54
    • Productimage for RB 54
    • Productimage for RB 54
    • Productimage for RB 54
    • Productimage for RB 54
    • Productimage for RB 54
    • Productimage for RB 54
    Brandimage to Product RB 54

    Mandrelless tube bending machine

    RB 54

    NC-controlled, with large program memory

    4.999,00 EUR excl. Tax / pc(s).
    5.948,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    4.399,00 EUR excl. Tax / pc(s).
    5.234,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2026 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 4300054

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

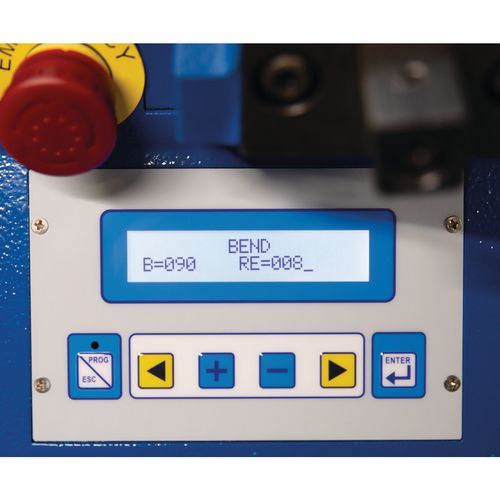

    • NC control for setting the bending angle
    • Up to 50 programs can be stored
    • High-quality, robust design
    • Fast tool change
    • Purely motorized drive
    • Automatically returns to the starting position



    • NC control for setting the bending angle
    • Up to 50 programs can be stored
    • Purely motorized drive
    • Automatically returns to the starting position



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Max. bending radius162 mm
    Max. bending angle210 °
    Bending speeds2 U/min
    Torque2341 nm
    VPE1
    Bending performance
    Bending performance tubular material 420 N/mm² (Ø x wall thickness)54 x 4 mm
    Bending performance tubular material 350 N/mm² (Ø x wall thickness)54 x 4 mm
    Bending performance tubular material 650 N/mm² (Ø x wall thickness)42 x 3 mm
    Dimensions and weights
    Length approx.600 mm
    Width/depth approx.220 mm
    Height approx.470 mm
    Weight approx.107 kg
    Electrical Data
    Drive motor output1,1 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1
